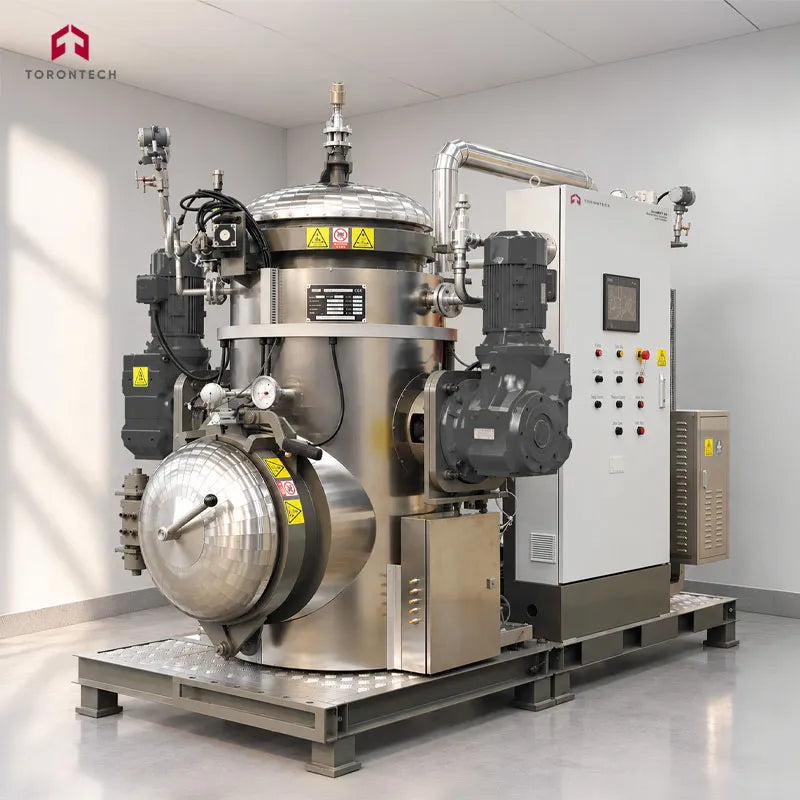

Medical Waste Autoclave with Shredder – ToronMW™ AS
On-Site Medical Waste Sterilization and Volume Reduction
The ToronMW™ AS Medical Waste Autoclave with Shredder provides an integrated solution for treating infectious medical waste at the point of generation. Combining mechanical shredding with saturated steam sterilization in a sealed vessel, the system reduces regulated healthcare waste into unrecognizable, non-infectious material suitable for disposal through approved municipal waste channels. Designed for hospitals, clinics, laboratories, and centralized medical waste treatment facilities, the system processes waste through an upper shredding chamber before transferring it to a lower chamber for steam sterilization. The treated output is dry, unrecognizable, and non-infectious.
An automated treatment cycle integrates waste loading, shredding, steam sterilization, condensation, vacuum drying, and discharge, minimizing direct operator contact with untreated waste. The enclosed chamber design helps contain aerosols, odors, and condensate throughout the treatment process. With a volume reduction rate of 60–80%, the ToronMW™ AS can reduce waste storage requirements, collection frequency, and transportation costs while minimizing the risks associated with off-site transport of untreated infectious waste. Each cycle generates temperature and pressure records to support process monitoring and regulatory documentation.
The ToronMW™ AS series offers seven capacity options ranging from 100 L to 2,500 L per cycle, accommodating the waste treatment requirements of small healthcare facilities and large centralized processing plants. Smaller models feature an integrated electric steam generator and water purification system, making them suitable for facilities without a central steam supply. Higher-capacity models can connect to an existing plant steam system. The process operates without chemical sterilizing agents or radiation and is designed to avoid generating additional hazardous liquid or solid waste streams, providing a practical solution for on-site medical waste sterilization and volume reduction.
Medical Waste Autoclave with Shredder – ToronMW™ AS Applications
The ToronMW™ AS Medical Waste Autoclave with Shredder is designed for healthcare facilities, laboratories, and waste treatment plants that require on-site infectious medical waste treatment through steam sterilization and mechanical size reduction. It provides an alternative to incineration-based treatment and can reduce reliance on transporting untreated medical waste to external facilities.
-
Hospitals and Medical Centers: Treat sharps, dressings, laboratory cultures, and isolation waste on site, reducing the need to store untreated infectious material between collections.
-
Outpatient Clinics and Dialysis Centers: Process contaminated dialyzers, tubing, and disposable medical supplies in a compact treatment area.
-
Clinical and Diagnostic Laboratories: Sterilize culture plates, specimen containers, and biological laboratory waste before disposal through approved waste management channels.
-
Pharmaceutical and Biotechnology Facilities: Treat contaminated production consumables, filter media, and laboratory waste through documented sterilization cycles.
-
Central Medical Waste Treatment Plants: Process medical waste collected from multiple facilities, with system capacities reaching 2,500 L per cycle.
-
Veterinary Hospitals and Animal Research Facilities: Treat contaminated animal bedding, tissues, and disposable materials requiring sterilization and size reduction.
-
Blood Banks and Plasma Collection Centers: Process expired blood collection materials, collection sets, and contaminated packaging according to applicable waste treatment requirements.
-
Long-Term Care and Isolation Facilities: Treat infectious waste on site, helping reduce the movement of untreated materials through occupied areas.
-
Field Hospitals and Emergency Response Units: Support medical waste treatment in temporary healthcare facilities where municipal waste infrastructure is limited or unavailable.
Standards and Microbial Inactivation
Medical waste treatment systems are evaluated according to their demonstrated ability to inactivate microorganisms and meet applicable regulatory requirements. The ToronMW™ AS uses saturated steam sterilization, with treatment performance requiring validation against the relevant microbial inactivation criteria and local regulatory requirements.
-
STAATT Level IV: The State and Territorial Association on Alternative Treatment Technologies (STAATT) established microbial inactivation criteria for alternative medical waste treatment technologies. Level IV is commonly associated with a minimum 8-log₁₀ reduction in microbial population, subject to the applicable validation protocol.
Approval of alternative medical waste treatment technologies depends on the requirements of the relevant state, provincial, or municipal authority. Validation procedures, biological indicators, documentation, and acceptance criteria may vary by jurisdiction. Before commissioning, facilities should arrange site-specific performance validation using biological indicators and protocols accepted by the applicable regulatory authority. Confirm the required treatment level and validation criteria with the regulator before claiming compliance.
Medical Waste Autoclave with Shredder – ToronMW™ AS Key Features
The ToronMW™ AS Medical Waste Autoclave with Shredder integrates mechanical shredding, saturated steam sterilization, and automated cycle control in one enclosed treatment system. Its design supports efficient infectious medical waste processing, reduced waste volume, and controlled handling across healthcare and centralized waste treatment facilities.
-
Low-Speed, High-Torque Twin-Shaft Shredder: Processes dense mixed medical waste, glass, and plastics through controlled cutting action designed to reduce the risk of stalling and excessive mechanical wear.
-
Automatic Jam Detection and Reverse Operation: Detects excessive resistance and reverses the shredder drive to help clear blockages and restore material flow.
-
Anti-Bridging Push Feeder: Uses a positive feeding mechanism to move waste into the cutting chamber, helping prevent material buildup and interruptions associated with gravity-fed systems.
-
Corrosion-Resistant Pressure Vessel: Features vessel surfaces designed to withstand demanding operating conditions and exposure to condensate, supporting durability during repeated treatment cycles.
-
Integrated Shredding, Sterilization, and Drying: Performs waste size reduction, steam treatment, and drying within an enclosed vessel, minimizing transfers of untreated waste between separate machines.
-
Fully Automatic Cycle Control: Coordinates the treatment sequence from loading through discharge, reducing routine operator involvement and supporting consistent process execution.
-
Integrated Water Purification System: Conditions the water supply for steam generation, helping facilities operate without a separate water treatment installation where compatible with site requirements.
-
Remote Monitoring and Fault Diagnosis: Provides access to cycle information and alarm conditions for operational monitoring, troubleshooting, and maintenance planning.
-
Enclosed Odor and Emission Management: Uses a sealed treatment design and controlled process handling to help limit the release of odors, aerosols, and steam during operation.
-
Reduced Secondary Waste Generation: Designed to minimize additional hazardous liquid and solid waste streams associated with the treatment process, subject to the installation's discharge and operating requirements.
-
Chemical-Free, Radiation-Free Treatment: Uses saturated steam as the sterilization medium, eliminating the need for chemical sterilizing agents or radiation-based treatment.
-
60–80% Waste Volume Reduction: Combines shredding and treatment to reduce waste volume, helping lower storage requirements, container usage, and collection frequency.
-
Heavy-Duty Construction: Designed for demanding operating schedules in healthcare facilities and medical waste treatment plants, with construction intended to support reliable long-term operation.
-
Integrated Steam Generator for Compact Models: The 100 L and 200 L models include an electric steam generator, allowing operation at suitable sites without a central plant steam supply.
Theory and Method
The ToronMW™ AS Medical Waste Autoclave with Shredder uses saturated steam sterilization to inactivate microorganisms through moist heat. When steam condenses on cooler waste surfaces, it releases latent heat that transfers energy into the material. This heat denatures essential microbial proteins and damages cellular structures and nucleic acids, helping destroy vegetative bacteria, fungi, viruses, mycobacteria, and bacterial spores when validated time and temperature conditions are achieved. Compared with dry-heat treatment, saturated steam provides efficient heat transfer and can achieve microbial inactivation at lower temperatures and shorter exposure times.
Steam pressure and temperature are directly related under saturated conditions. Depending on the operating parameters, steam pressures in the range of 0.2–0.3 MPa can correspond to temperatures above the commonly used 121°C sterilization benchmark. Higher-temperature cycles, such as those operating around 134°C, can reduce the exposure time required for effective treatment when supported by appropriate process validation. Air removal is essential because trapped air reduces heat transfer and can prevent steam from reaching all waste surfaces. The system uses air evacuation and controlled steam treatment to support effective heat penetration throughout the load.
Integrated shredding before sterilization distinguishes the ToronMW™ AS from conventional medical waste autoclaves that treat intact waste loads. Waste bags and compacted materials can restrict steam penetration and create cold spots within the load. Mechanical shredding breaks the waste into smaller fragments, increases exposed surface area, and helps reduce trapped air pockets, supporting more uniform steam contact and heat distribution. Shredding also reduces waste volume and can render sharps and recognizable clinical items unidentifiable. Effective treatment must still be confirmed through validated operating cycles and appropriate biological indicators, while final disposal must follow the applicable local medical waste regulations.
Medical Waste Autoclave Treatment Cycle Sequence
The ToronMW™ AS Medical Waste Autoclave with Shredder integrates waste loading, mechanical size reduction, steam sterilization, condensation, vacuum drying, and discharge into an automated treatment sequence.
-
Loading: Medical waste enters the upper chamber, and the vessel closes to establish an enclosed treatment environment.
-
Shredding: A push-feeding mechanism directs waste into the twin-shaft shredder, which reduces it into smaller fragments that fall into the lower chamber. Automatic jam detection and reverse operation help clear obstructions and maintain material flow.
-
Steam Sterilization: Saturated steam enters the treatment chamber to expose the shredded waste to controlled temperature and pressure conditions. Operating parameters, such as temperatures of 134–138°C and pressures of 0.2–0.3 MPa, must be confirmed against the model specifications and validated treatment cycle.
-
Condensation: Residual steam condenses as the treatment phase ends, helping reduce excess moisture and prepare the load for subsequent drying.
-
Vacuum Drying: A vacuum system removes residual vapor and moisture, helping produce a dry treated output while reducing residual odors.
-
Discharging: Once the cycle reaches its specified completion and safety conditions, the discharge door opens for removal of the treated material. Final waste classification and disposal must comply with applicable local regulations and validated treatment requirements.
Medical Waste Autoclave with Shredder - ToronMW™ AS Technical Specifications
Process Performance
| Parameter | Specification |
|---|---|
| Sterilization Temperature | 134°C to 138°C |
| Sterilization Pressure | 0.2 to 0.3 MPa |
| Microbial Inactivation | STAATT Level IV, ≥ 8 Log₁₀ |
| Volume Reduction | 60% to 80% |
| Treatment Agent | Saturated steam (chemical-free, radiation-free) |
| Shredder Type | Twin-shaft, low speed, high torque, auto-reversing |
| Process Stages | Load, shred, sterilize, condense, vacuum, discharge |
| Control | Fully automatic, remote monitoring and fault diagnosis |
Model Range
| Parameter | ToronMW™ AS-100 | ToronMW™ AS-200 | ToronMW™ AS-300 | ToronMW™ AS-500 | ToronMW™ AS-750 | ToronMW™ AS-1000 | ToronMW™ AS-2500 |
|---|---|---|---|---|---|---|---|
| Treatment Capacity (L/cycle) | 100 | 200 | 300 | 500 | 750 | 1,000 | 2,500 |
| Cycle Time* (min) | 30 | 30 | 30 | 35 | 35 | 40 | 45 |
| Disposal Weight** (kg/h) | 20 | 40 | 60 | 90 | 120 | 150 | 330 |
| Dimensions L×W×H (m) | 3.0 × 1.6 × 2.1 | 3.3 × 1.7 × 2.2 | 3.9 × 3.1 × 3.1 | 4.6 × 3.0 × 3.9 | 5.0 × 3.0 × 4.6 | 5.0 × 5.0 × 5.7 | 6.8 × 5.3 × 7.1 |
| Net Weight (ton) | 2.4 | 3.0 | 3.5 | 4.0 | 4.3 | 8.5 | Available on request |
| Rated Power*** (kW) | 30 | 40 | 14 | 15 | 16 | 22 | 40 |
* Cycle time varies with sterilization temperature and local regulatory requirements.
** Disposal weight is calculated at a waste density of 0.1 kg/L. Actual density varies with waste composition and local segregation practice.
*** The AS-100 and AS-200 include an electric steam generator and water purification system, which accounts for their higher rated power. Larger models draw steam from the plant supply.
Standard Configuration
| Item | Description |
|---|---|
| Pressure Vessel | Dual-chamber design with corrosion-resistant in-wall self-cleaning surfaces |
| Shredding Unit | Built-in twin-shaft shredder with auto-reversing drive and push feeder |
| Steam Supply | Electric steam generator on AS-100 and AS-200; plant steam connection on AS-300 and above |
| Water Treatment | Integrated water purification system, no external softening required |
| Vacuum System | Vacuum pump for pre-sterilization air removal and post-cycle drying |
| Control System | Automatic PLC cycle control with operator interface |
| Remote Support | Remote monitoring and fault diagnosis interface |
| Documentation | Cycle temperature and pressure records for regulatory reporting |
