Mini Vertical Baler
Occupying no more floor space than a standard refrigerator, the ToronBale™ M brings commercial-grade waste compaction to space-constrained commercial facilities. Its three versatile 5-to-20-ton configurations run on low 1.5-to-3 kW power connections, producing easy-to-handle 15-to-120 kg bales while eliminating expensive uncompressed waste pickups.
- 5-20 Ton Hydraulic Press Ratings
- Compact 900x570 mm Base Footprint
- Produces 15-120 kg Manageable Bales
- Low 1.5-3 kW Power Consumption
Get personalized pricing for your specific requirements
- Manufacturer warranty included
- Calibration certificate on request
- Worldwide shipping and installation support
- Application specialists available before you buy

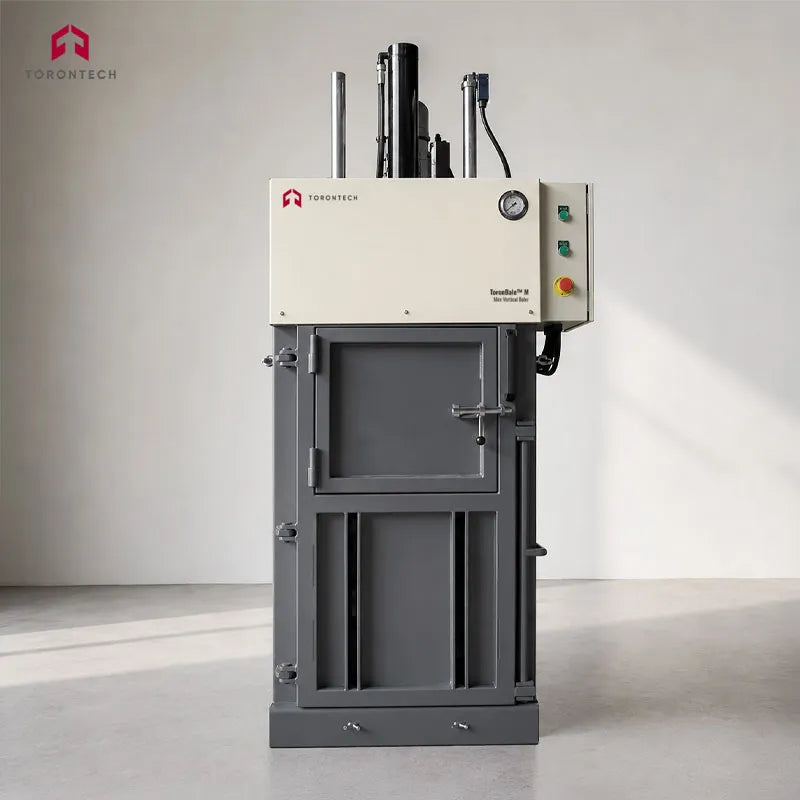

Mini Vertical Baler - ToronBale™ M
Not every business generates enough waste to justify a large baling press. The ToronBale™ M mini vertical baler from Torontech is designed for those smaller sites. It comes in 5, 10, and 20 ton versions that turn loose cardboard, paper, and packaging into dense bales weighing 15 kg to 120 kg. The 5 and 10 ton versions sit on a 900 x 570 mm base, similar in size to a home fridge, and total machine weight falls between 450 kg and 1,000 kg.
Electrical demand is modest, with 1.5 kW, 2.2 kW, and 3 kW motors across the three models. This makes the baler easy to connect in buildings where spare capacity is tight, or where rewiring would cost more than the equipment. Cafes, corner shops, clinics, and ship galleys can therefore handle their own compaction rather than keep paying for pickups of uncompressed waste.
A bottom liquid receiver can be added to any model. It sits below the chamber and gathers the fluid squeezed out of wet loads. Leftover food and damp packaging leak under pressure, and without a tray that liquid lands on the floor. Sites dealing with mixed refuse instead of dry cardboard will see the biggest gain from this add-on.
Mini Vertical Baler - ToronBale™ M Applications
This small baler suits locations that produce steady, moderate quantities of waste and have little room or electrical headroom to spare.
- Small Retail and Convenience Stores: compress daily cardboard in a stockroom without giving up a whole equipment bay
- Cafes, Restaurants, and Bars: reduce packaging waste, and with the liquid receiver, cope with wet food-service refuse
- Hotels and Guesthouses: deal with housekeeping and kitchen waste inside narrow service corridors
- Offices and Professional Practices: bale sorted paper and packaging without the footprint or power draw of a large press
- Commercial Vessels and Yachts: shrink onboard waste volume when storage space between ports is the limiting factor
- Clinics and Small Healthcare Sites: gather and compress general packaging waste away from patient areas
- Workshops and Light Manufacturing: manage packaging from components and scrap offcuts at low daily output
- Schools and Institutional Kitchens: compact cafeteria packaging and paper waste without a large investment
- Resorts and Tourist Facilities: absorb seasonal waste surges at sites with no central waste system
Standards
Torontech designs the ToronBale™ M around the safety expectations of North American and European workplaces. Its anti-rebound gate follows European and U.S. baler safety practice, a feed-gate interlock stops platen movement when the gate opens, and a separate emergency stop is mounted away from the main control panel. Because safety paperwork differs by destination market and machine configuration, check the certification marks and local code requirements with Torontech before installation.
Mini Vertical Baler - ToronBale™ M Key Features
The ToronBale™ M uses the same class of hydraulic parts and safety interlocks found on Torontech’s larger balers, packed into a body suited to tight premises.
- Compact 900 x 570 mm Footprint: the 5 and 10 ton versions need about as much floor as a home refrigerator, so they slot into stockrooms and service corridors
- Low Power Demand: motors from 1.5 to 3 kW spare older buildings from the electrical upgrades that bigger presses often require
- Optional Bottom Liquid Receiver: a tray beneath the chamber catches pressed-out fluid, which keeps floors dry and drainage under control
- Three Press Ratings, 5 to 20 Tons: with bale weights of 15 kg to 120 kg, buyers can choose the model that fits their real daily waste output
- Automatic Chain Bale Ejector: pushes the tied bale out of the chamber at the press of a button, so no one has to tip it by hand
- Anti-Rebound Gate Structure: designed to European and U.S. safety practice, it keeps compressed material from springing back and stops the door from moving unexpectedly
- Feed Gate Ram Interlock: the platen stops descending as soon as the loading gate opens, which keeps hands out of the compression zone
- Independent Emergency Stop: a separate, clearly visible circuit shuts down hydraulic operation without relying on the main controller
- Reinforced Ram Guides: hold the platen level when waste is packed unevenly and shield the cylinder seals from sideways strain
- Automatic Load-Balancing Design: shares compression force across the platen, so lopsided loads do not jolt the ram mid-stroke
- Integrated Valve Block: a Taiwan-sourced valve assembly makes servicing straightforward for machines installed far from technical support
- Direct-Coupled Motor and Pump: a cross-connected direct drive keeps motor and pump perfectly aligned, takes the place of standard couplings, and prolongs pump life
- NOK Hydraulic Seals: Japan-sourced seals stretch the time between services and cut downtime for seal changes
- A.M.C. Oil Pipe Joints: Japan-made fittings keep hydraulic lines sealed despite temperature swings and vibration
- Adjustable Bale Height: set the bale between 200 and 800 mm, depending on the model, to produce bales light enough to move without a pallet jack
Theory and Method
Tonnage by itself says little about performance. What actually compresses waste is pressure, meaning force spread over the face of the bale. In a compact chamber, even moderate force translates into effective pressure. The 20 ton ToronBale™ M pushes on an 800 x 600 mm face and generates around 400 kPa. A 60 ton press spread across an 1,800 x 1,000 mm face produces a lower figure. Tonnage grows with chamber size, not with how well the waste is compacted.
The real trade-off with a small baler is throughput, not bale quality. Chamber volume and cycle time control how much waste is processed per shift, and both are limited on this class of machine. A site producing a few cubic meters of loose waste a day will fill the chamber without trouble, but a site producing ten times as much would find the operator idle while the press catches up. Choosing a chamber that fits daily output is smarter than chasing a bigger tonnage number.
Wet waste adds another challenge. Pressing food scraps or damp packaging squeezes out liquid, and it must be directed somewhere. If it spreads across the floor, it creates a slipping risk, draws pests, and may carry non-compliant waste into a floor drain. The optional receiver beneath the chamber captures that liquid for proper disposal, which is why it is offered on a machine type so often placed close to food preparation areas.
Mini Vertical Baler - ToronBale™ M Technical Specifications
| Parameter | ToronBale™ M-5 | ToronBale™ M-10 | ToronBale™ M-20 |
|---|---|---|---|
| Press Force | 5 tons (approx. 49 kN) | 10 tons (approx. 98 kN) | 20 tons (approx. 196 kN) |
| Feed Opening Size (L × H) | 600 × 400 mm | 600 × 400 mm | 700 × 400 mm |
| Baling Chamber Height | 1,000 mm | 1,000 mm | 1,200 mm |
| Bale Size (L × W × H, H adjustable) | 600 × 400 × (200 to 600) mm | 600 × 400 × (200 to 600) mm | 800 × 600 × (400 to 800) mm |
| Bale Weight | 15 to 40 kg | 20 to 50 kg | 60 to 120 kg |
| Motor Power | 1.5 kW | 2.2 kW | 3 kW |
| Machine Weight | 450 kg | 500 kg | 1,000 kg |
| Overall Dimensions (L × W × H) | 900 × 570 × 2,240 mm | 900 × 570 × 2,240 mm | 1,180 × 800 × 2,550 mm |
| Bale Ejection | Automatic chain ejector | Automatic chain ejector | Automatic chain ejector |
| Liquid Receiver | Optional | Optional | Optional |
| Materials Handled | Food residue, paper, plastics, textile | Food residue, paper, plastics, textile | Food residue, paper, plastics, textile |
