Horizontal Tensile Testing Machine for Overhead Conductors & Cables - TT-HTTM Series
Get personalized pricing for your specific requirements
- Manufacturer warranty included
- Calibration certificate on request
- Worldwide shipping and installation support
- Application specialists available before you buy
Horizontal Tensile Testing Machine for Overhead Conductors & Cables - TT-HTTM Series

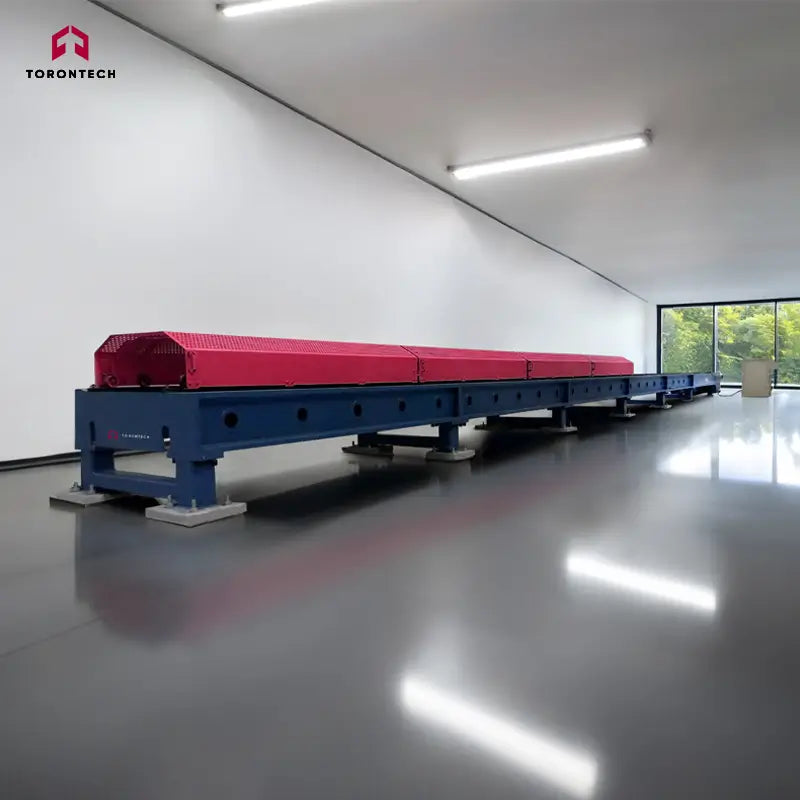

Designed specifically for testing wire, rope, chain, shackles, and cables, this horizontal tensile testing machine accommodates extended specimen lengths and fulfills demanding elongation requirements.
Powered by a servo motor, spindle drives, and a synchronous belt system, the frame delivers variable-force testing across a broad strength range. Length configurations are adjustable to match diverse project specifications, while grip assemblies can be configured for different specimen geometries—with interchangeable options available to support changing testing demands.
The system includes PC-based control software with robust data capture and analytical tools, delivering thorough performance evaluation and actionable test results.
Horizontal Tensile Testing Machine for Overhead Conductors, Wire, Rope, Chains, Shackles & Cables – TT-HTTM Series
This horizontal tensile testing system is purpose-built for evaluating wire, rope, chains, shackles, and cables. Its open-frame horizontal design easily accommodates extended sample lengths while supporting high-elongation test requirements.
Hydraulic power drives the testing process, delivering consistent force for rigorous material assessments. Frame lengths are adjustable, allowing the system to align with specific application needs—from short-section component checks to full-length cable evaluations. Gripping options are flexible, with interchangeable inserts that adapt to various specimen cross-sections, ensuring the system remains responsive as testing protocols evolve.
The machine integrates PC-based control software featuring advanced data logging and analytical functions. Real-time monitoring, automated test sequencing, and detailed reporting capabilities give operators clear visibility into material performance, enabling faster, more informed decision-making in quality assurance and R&D environments.
Key Features & Performance Advantages
-
Spacious Bed Clearance – The generous opening accommodates a wide variety of sample types, from full-length products and sling assemblies to high-capacity test pieces, reducing the need for multiple testing setups.
-
Adjustable Rolling Carriage – A freely moving, roller-supported carriage slides into position with ease, allowing quick alignment to the required nominal test length for different specimen designs.
-
Flexible Configuration for Multiple Applications – Frames, gripping fixtures, and strain-measurement devices are customizable to suit tensile testing across diverse product categories. Advanced sealing technology on piston heads and cylinder ends ensures smooth, reliable operation over extended use.
-
Comprehensive Operator Safety – The test area is fully enclosed, with fixed base plates and manually operated hinged guards on top, providing physical protection without compromising accessibility during setup.
-
Precision-Grade Load Accuracy – Delivers measurement precision within ±1% for higher-capacity ranges and ±0.5% for lower-capacity tests, ensuring consistent, repeatable results that support critical quality decisions.
-
Integrated In-System Calibration – A built-in reverse-loading mechanism enables load cell verification directly within the compression zone, removing the need for external hydraulic equipment. This on-machine calibration approach enhances measurement reliability and simplifies routine maintenance workflows.
Intelligent Software Suite for Precision Testing Control
-
Windows-Based Operating Platform – The system runs on a familiar Windows environment, featuring an intuitive dashboard that simplifies setup, monitoring, and data access for operators at every skill level.
-
Flexible Measurement Units – Display options for dimensions, force, and deformation can be adjusted across multiple unit systems, allowing users to switch seamlessly based on project or regional preferences.
-
Customizable Test Protocols – Create and store optimized testing procedures for various material types and sample sizes. Operators simply load the saved method and start the test, ensuring consistent, repeatable results with minimal setup time.
-
Dynamic Real-Time Graphing – View live performance data through multi-curve visualizations, including:
-
Load vs. Elongation
-
Load vs. Displacement
-
Load vs. Time
-
-
Advanced Curve Analysis – Overlay and compare multiple test curves on a single screen. Zoom into specific data segments for closer inspection, enabling deeper insight into material behavior under tension.
-
Tailored Reporting Tools – Generate professional reports in Excel format using customizable templates, giving teams full control over data presentation and documentation structure.
-
Multilingual Interface Support – Language packs are available on request, making the software accessible to international teams and supporting global operational needs.
| Models |
TT-HTTM-100 |
TT-HTTM-300 |
TT-HTTM-500 |
| Test Type |
Creep Type |
Tensile Type |
|
| Test Stations |
3 |
1 |
|
| Loading Stroke |
1500 mm |
||
| Distance between Fixtures |
14m |
10m |
|
| Load Capacity |
100kN |
300kN |
500kN |
| Accuracy Class (ISO 7500-1) |
0.5 |
1 |
|
| Load Measuring Range |
0.4% to 100% F.S |
||
| Load Indication Accuracy |
± 0.5% |
||
| Load Resolution |
± 500,000 steps (no range switching) |
||
| Extensometer Measuring Range |
1 to 5 m |
1 to 1.2m | |
| Extensometer Accuracy |
± 0.5% |
||
| Extensometer Resolution |
0.0001mm |
||
| Displacement Accuracy |
± 0.5% |
||
| Displacement Resolution |
0.000025mm |
||
| Load Control Rate |
0.05% to 10% F.S./s |
||
| Load Control Accuracy |
± 0.5% |
||
| Moving Speed Range | 0.005 to 500mm/min | 0.005 to 250mm/min | |
| Internal Width |
900mm |
||
|
Dimensions (L × W × H)
|
|
|
|
|
Standard Configurations
|
|
|
|
| Power Supply |
|
||
| Operating Temperature | -40 to +66°C (-40 to +150°F) | ||
| Humidity Range | 10% to 90% non-condensing | ||
| Accessories for TT-HTTM-100 (Creep Type) | |||
| Power-off Protection System | |||
| UPS | 25kW, Retain 10min after power-off | ||
| Power Generating Set | Diesel Power Generating Set | ||
| Climate Chambers | |||
|
Temperature Setting Range
|
10 to 35°C
|
||
|
Temperature Fluctuation
|
≤ 2°C/h
|
||
