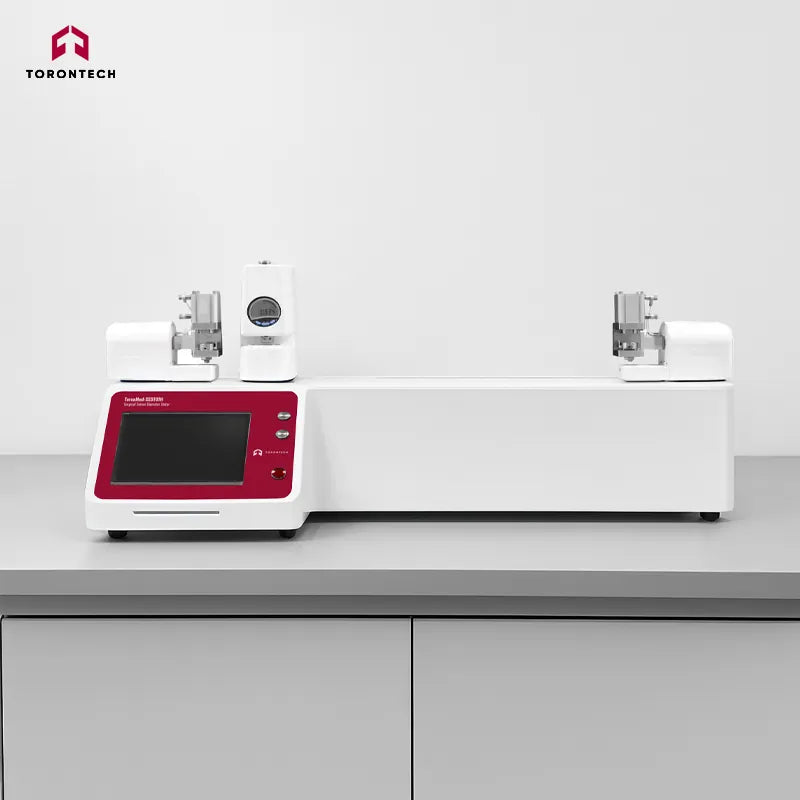

Surgical Suture Diameter Tester (Automated)

The ToronMed™ SSDT01H is a state-of-the-art laboratory testing platform developed to automate the dimensional analysis of medical filaments. Engineered with integrated Mitutoyo micrometers and an intuitive Windows-based touchscreen interface, it delivers rapid, sub-micron thickness measurements within a compact, user-friendly benchtop profile, achieving absolute compliance with strict global USP 861 safety standards.

0–12.7 mm Test Range
0.0005 mm Optional Resolution
1,000,000 Record Local Storage
100-Second Automated Test Cycle

Get personalized pricing for your specific requirements

Surgical Suture Diameter Tester - ToronMed™ SSDT01H

Measures the thickness of medical filaments with automated precision. This instrument follows USP 861 standards for absorbable materials. Integrated Mitutoyo micrometers provide reliable data during testing cycles. One-click operations complete entire measurement sequences within two minutes.

Automatic suture locking and ninety-degree rotation systems improve efficiency for multifilament samples. Windows ten operating systems manage complex parameters through capacitive touchscreens. Data storage capacities reach one million records for extensive documentation. High-precision Celtron load cells maintain accurate tension control automatically.

Features and Technical Advantages

Fully Automated Cycle: One-click functionality manages locking, tensioning, measurement, and report generation in under one hundred seconds.
Precision Micrometers: Imported Mitutoyo hardware delivers globally recognized reliability and dimensional accuracy.
Smart Interface: The 10.1-inch capacitive touchscreen runs on a Win10 system for intuitive parameter customization.
Force Control: Dual-sensor Celtron load cells provide high-precision tensioning with an accuracy of ±0.03%.
Automatic Rotation: Integrated SMC rotary cylinders enable ninety-degree sample adjustment for multifilament testing without removal.

Specialized Laboratory Applications

Suture manufacturers utilize this equipment for automated quality control and compliance verification. Research laboratories and hospitals use these measurements to validate new technologies. Independent testing facilities provide third-party verification for regulatory compliance. Standardized testing according to USP 861 helps maintain product safety for surgical use.

Technical Specifications

Specification	Value
Nominal Specification	12-0 to 10 (Classes I, II, III)
Test Range	0–12.7 mm
Resolution	0.0005 mm (Optional)
Test Accuracy	0.002 mm
Tension Sensor Range	0–58.8 N
Tension Accuracy	± 0.03% FS
Data Capacity	1,000,000 Records

Standard Configuration

The primary configuration consists of the main instrument unit, a 10.1-inch touchscreen, and a wireless mouse. Each package includes specialized test fixtures designed for both single and multifilament sutures. Connectivity options support wireless printing and USB Type-C data output for seamless laboratory integration. Power configurations are compatible with AC 220V and 120V standards.
