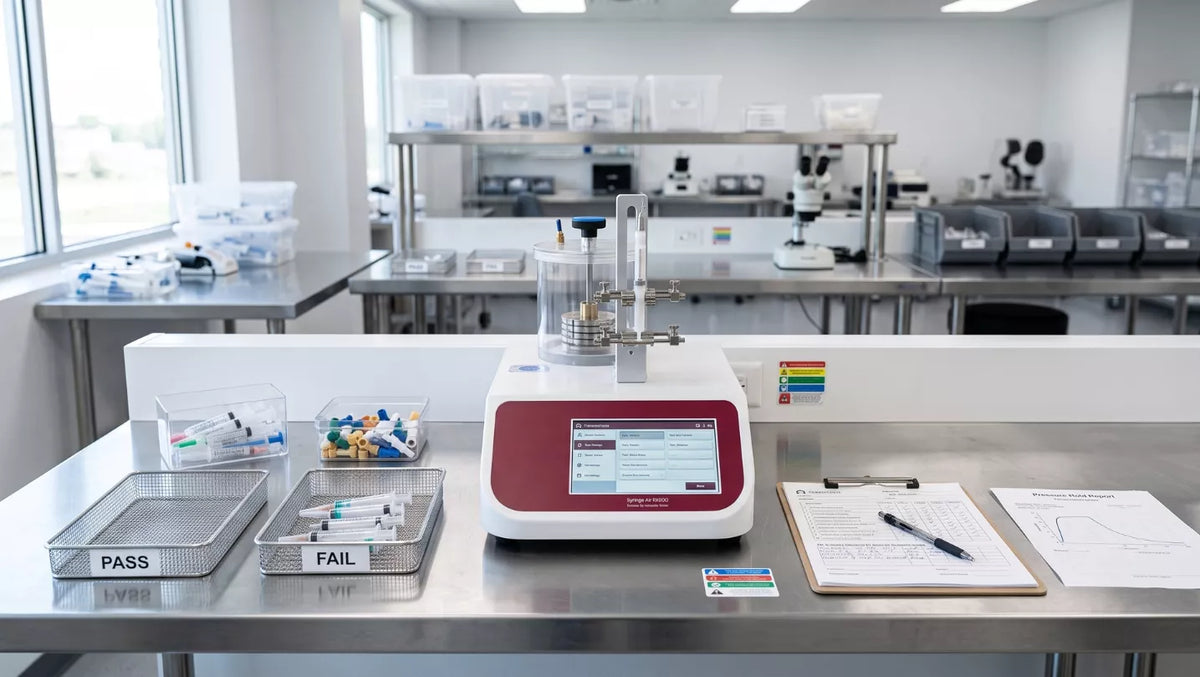

Syringe Leak Testing Machine Setup for Disposable and Prefilled Syringe QC

Syringe leak testing machine setup depends on syringe type, pressure range, fixture compatibility, calibration needs, data recording, and production QC workflow. This configuration guide helps medical device manufacturers and quality control laboratories evaluate machine specifications, pressure tolerances, and data storage needs. Selecting the correct setup helps maintain process repeatability and regulatory compliance.

Technical teams use these guidelines to configure their physical test lines for routine batch auditing. Proper setup prevents mechanical drift and maintains high testing throughput.

What Is a Syringe Leak Testing Machine?

A syringe leak testing machine detects leakage or tightness issues under defined pressure or vacuum conditions.

Operating as an air leakage tester, the system applies a controlled physical load to verify that boundaries do not fail. The configuration can support disposable syringe leak testing, air leakage testing, and production QC workflows.

The setup may include pressure control, fixtures, sensors, calibration, data recording, and software. Matching these components to your standard operating procedures prevents premature tool wear.

Where Syringe Leak Testing Fits in Manufacturing QC

Manufacturing QC teams monitor syringe tightness and process consistency using standardized physical stress checks. These checks catch tooling drift, molding defects, or elastomer variations early in the production cycle.

R&D teams use these systems to validate material changes, compile regulatory files, and support design verification. Integrating testing systems directly into automated assembly lines supports high-throughput continuous manufacturing.

QA teams review test records, calibration status, and method alignment during routine audits. Production teams rely on repeatable setup and efficient result recording to prevent line bottlenecks.

Standardizing the testing setup across different laboratories helps build reliable historical records. These records support smooth transitions from low-volume prototype validation to continuous batch release.

Core Machine Features to Verify

Establishing a compliant testing setup requires matching machine components with your approved standard operating procedures. This setup configures the air leakage tester to monitor volumetric stability without introducing measurement drift.

The table below describes primary features used during syringe testing and outlines what validation teams must verify during installation.

Pressure Range, Sensor Accuracy, and Test Control

Pneumatic control stability determines the repeatability of your leak decay data. The test system must apply a progressive, linear vacuum without sudden force surges. Spikes can shock elastomer seals, producing false passes or hiding minor defects.

Verify that the machine supports the target vacuum range, such as a negative pressure envelope of -5 to -90 kPa. The pneumatic system must deliver stable hold outputs, such as a verified target of -88 +/- 0.2 kPa during testing.

Incorporating a high-accuracy, high-resolution pressure sensor with a tolerance of 0.1% Full Scale (FS) helps eliminate measurement drift. This level of precision supports consistent, audit-ready quality records.

Software integration should monitor the vacuum decay curve continuously. This tracking identifies pressure drops within milliseconds, securing accurate leak detection across large test batches.

Fixtures, Nozzle Setup, and Syringe Compatibility

Physical connections represent a common source of measurement error during leak testing. If a connection leaks under negative pressure, the machine registers a pressure drop, mimicking a structural syringe failure.

Technical teams can use a specialized syringe air leakage tester equipped with customized adapters to accommodate distinct barrel geometries. This accessory ecosystem should also support auxiliary medical applications, including non-intravascular catheter testing and general medical tubing leak testing.

For facilities executing prefilled syringe leak detection, customized clamps must secure the barrel without applying external radial forces. Excess clamping force can deform the plastic barrel, artificially altering piston seal contact.

Mismatched adapters cause micro-gaps that leak under high vacuum. Utilizing compatible, wear-resistant high-pressure connectors prevents these false rejections, helping laboratories maintain reliable data.

Automatic Calibration and Production Workflow

Maintaining measurement accuracy in high-throughput lines requires systematic sensor verification. A machine featuring automatic calibration options simplifies routine checking procedures, allowing operators to run daily weight-traceable checks on the production floor.

Standardizing these calibration workflows helps prevent sensor drift and protects the validity of batch records between scheduled service intervals. Analysts should establish clear, step-by-step verification routines in their standard operating procedures.

Any deviation from calibration limits must trigger an immediate equipment lock-out. This preventative control protects downstream packaging operations from processing unverified syringe batches.

Data Storage, RS232 Transfer, and GMP Audit Trail

Modern medical device manufacturing demands absolute data integrity for every batch run. Every pressure curve, calibration date, user adjustment, and pass-fail result must be recorded to support quality audits.

Technical teams should check if the machine software includes a secure GMP audit trail with multi-level user permissions and unmodifiable records. High-capacity digital databases capable of holding up to 100,000 test records help prevent manual transcription errors.

Additionally, verify that the hardware supports direct RS232 data transfer to allow seamless exporting to laboratory information management systems (LIMS). This integration eliminates manual entry errors, streamlining batch record compiling directly at the workstation.

If the testing protocol requires compliance with strict electronic record rules, verify software capabilities before purchase. Digital systems should provide clear access controls, electronic signatures, and unmodifiable audit trails.

Disposable vs Prefilled Syringe Testing Setup

Manufacturing facilities must configure their machines differently depending on the specific syringe design being processed. The physical properties of an empty disposable syringe differ significantly from a prefilled, pre-capped pharmaceutical delivery system.

The table below organizes the main differences between these testing configurations, detailing their setup requirements and the necessary quality documentation.

Manufacturing QC Setup Checklist

Quality assurance managers should verify this technical checklist before installing or re-configuring a syringe testing system:

• Define the primary syringe types and physical dimensions to be processed.

• Confirm the applicable sections of ISO 7886-1 and related product standards.

• Establish the maximum pressure and vacuum limits required for testing.

• Confirm the required sensor resolution and pressure accuracy limits.

• Review fixture and connector compatibility for all syringe nozzle profiles.

• Confirm that auxiliary accessories, such as a syringe air leakage tester, match your nozzle dimensions.

• Verify the calibration process and confirm the availability of traceable verification tools.

• Review data recording, storage, and secure export capabilities.

• Confirm that software features, such as audit trails, align with local data integrity rules.

• Verify the availability of regional technical support, installation help, and training.

• Consult with application specialists to review specific syringe configurations.

Common Setup Errors to Avoid

Developing consistent testing habits helps laboratories maintain reliable data and prevents unnecessary batch rejections. Operators should monitor their workflows to eliminate these common setup errors:

• Sourcing connectors that do not match the exact geometry of the syringe manifold.

• Allowing large bubbles to remain trapped inside the water-filled syringe during testing.

• Testing samples while the pressure sensor operates under an expired calibration status.

• Mixing different syringe batch codes within a single statistical validation calculation.

• Ignoring micro-leaks at the adapter seal, leading to incorrect device failure records.

• Operating the system with incorrect vacuum hold times that diverge from the validated SOP.

• Relying on manual result transcription without secure data exporting.

• Failing to clean the test fixture nozzle between runs, causing progressive salt buildup.

Final Recommendation

Selecting the correct syringe leak testing machine depends on balancing pressure ranges, fixture compatibility, and data security. While basic manual systems are suitable for research trials, automated testing platforms deliver the constant vacuum profiles needed for standard medical device QC.

The manufacturer ToronMed offers high-performance syringe testing equipment options designed to deliver precise pressure measurement and long-term durability. Collaborating with application specialists from ToronMed allows your team to evaluate equipment specifications, select compatible test fixtures, and optimize your quality control workflow.

Talk With Our Team About Syringe Leak Testing Machines

Optimizing leak testing and quality control workflows requires matching your specific syringe designs with precise pressure control systems. If you need support configuring a ToronMed system or selecting compatible fixtures, speak with our application specialists.

We can help you analyze your sample characteristics, throughput targets, and data storage requirements to identify the appropriate equipment configuration for your lab. Speak with the ToronMed team today to review your requirements, or contact the team for product guidance to receive a detailed configuration assessment.
