Syringe Air Leakage Tester
Get personalized pricing for your specific requirements

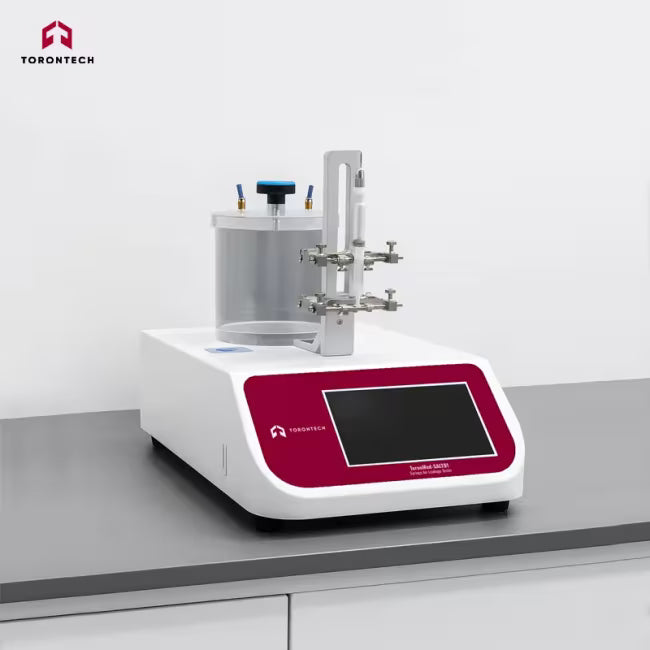

Syringe Air Leakage Tester - ToronMed™ SALT01
The Syringe Air Leakage Tester ToronMed™ SALT01 determines the negative pressure tightness of disposable and prefilled syringes. This precision instrument utilizes advanced vacuum technology to verify seal integrity according to ISO 7886 requirements. High-accuracy sensors provide dependable results for non-intravascular catheters and medical tubing.
SMC vacuum generators enable rapid negative pressure testing for high-efficiency laboratory workflows. Operators manage parameters through a seven-inch full-color touchscreen with intelligent data processing functions. The system automatically determines test results to maintain consistency across different batches. Internal memory stores up to one hundred thousand records.
Technical Advantages
-
Precision Measurement: Equipped with pressure sensors accurate to 0.1% FS for reliable air leakage evaluation.
-
Rapid Generation: Utilizes advanced SMC vacuum components for fast and stable negative pressure output.
-
Data Integrity: Features four-level user password protection and power-down memory to prevent data loss.
-
Automated Logic: Simplifies setup with automatic calibration functions and result determination for improved accuracy.
Technical Specifications
|
Feature |
Value |
|
Negative Pressure Range |
-5 to -90 kPa |
|
Pressure Output |
-88 ± 0.2 kPa |
|
Accuracy |
0.1% FS |
|
Test Time |
0 – 99,999.9 s (Adjustable) |
|
Dimensions |
300 × 410 × 370 mm |
|
Net Weight |
9.3 kg |
Standard Configuration
The standard configuration includes the main testing unit and high-precision pressure sensors. This package features an RS232 interface to facilitate seamless data transfer to external computers. Testing protocols verify that disposable syringes remain secure under negative pressure conditions. The compact design allows for easy integration into medical quality control facilities.
