Touchscreen Rotational Viscometers
The ToronVisc™ S Series is a high-performance touchscreen rotational viscometer designed for precision dynamic fluid testing. Engineered for chemical, cosmetic, and adhesive R&D, it delivers professional-grade viscosity analysis within an intuitive, user-friendly footprint without compromising on measurement range or data security.
- Viscosity Ranges Reaching Up To 104,000,000 mPa.s
- Speed Configurations From 0.1 To 200 RPM
- Stable Power Inputs From 100 To 240 Volts
- Testing Accuracy Maintained Within ±1.0% FSR
Get personalized pricing for your specific requirements

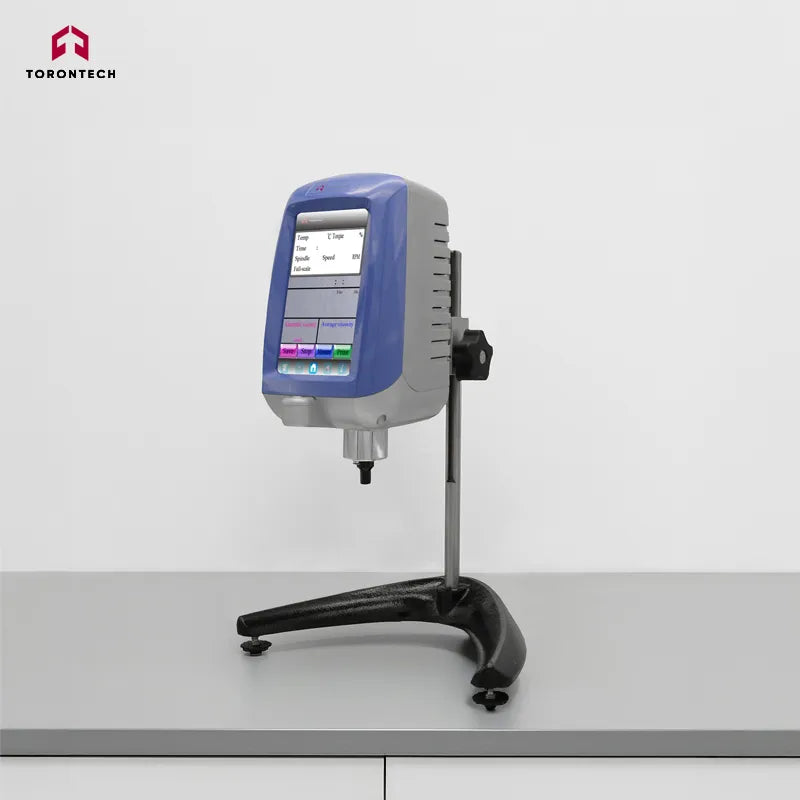

Touchscreen Rotational Viscometers – ToronVisc™ S Series
Touchscreen Rotational Viscometers measure viscosity across low, medium, and high viscosity materials for accurate fluid analysis. This series combines user-friendly designs with powerful measurement capabilities for chemicals and cosmetics. Resins and adhesives undergo testing to meet production quality control demands.
Responsive seven-inch touchscreens facilitate intuitive operation during formulation and development cycles. Built-in RTD temperature probes monitor sample conditions with high stability. Gigabit Ethernet and USB ports allow for fast data transfer to external storage. Secure calibration functions protect sensitive laboratory measurement settings.
Technical Advantages
-
Flexible Data Storage: Supports single point, continuous, and timing modes for diverse fluid analysis.
-
Durable Shaft Design: Engineered for long-term stability during routine quality control in manufacturing environments.
-
Wide Power Range: Operates between one hundred and two hundred forty volts with superior anti-interference performance.
-
Secure Calibration: Features password-protected settings for temperature and viscosity to maintain data integrity.
Technical Specifications
|
Model |
Viscosity Range (mPa.s) |
Speed Range (RPM) |
Accuracy |
|
ToronVisc™ S1 |
1 – 600,000 |
1 – 60 |
±1.0% FSR |
|
ToronVisc™ S2 |
1 – 6,000,000 |
0.1 – 100 |
±1.0% FSR |
|
ToronVisc™ S3 |
100 – 104,000,000 |
0.1 – 100 |
±1.0% FSR |
|
ToronVisc™ AI |
5 – 80,000,000 |
0.1 – 200 |
±1.0% FSR |
Standard Configuration
Standard configurations feature the main instrument unit and a seven-inch touchscreen interface. Each package includes an RTD temperature probe and specialized spindles for varied ranges. Universal power supplies support global laboratory requirements for food processing. Communication ports facilitate rapid data recording and analysis.
