Coal Water Slurry Viscosity Tester
The ToronVisc™ AVT-CWS is a high-performance slurry viscometer designed for precision coal-water fluid analysis. Engineered for mining and power generation R&D, it delivers professional-grade apparent viscosity and shear rate testing within a compact, robust footprint without compromising on data security or industrial compliance.
- Viscosity Coverage From 100 To 170,000 mPa.s
- Shear Rate Adjustments From 1 To 180 s-1
- Variable Rotation Speeds From 1 To 200 RPM
- Thermal Tracking Span From 5 To 75°C
Get personalized pricing for your specific requirements

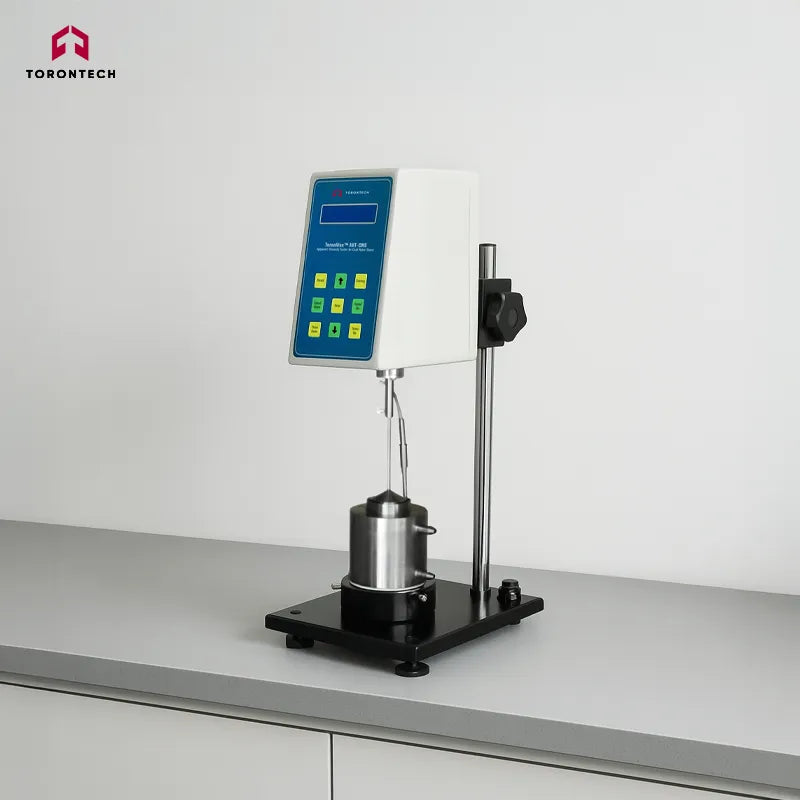

Coal Water Slurry Apparent Viscosity Tester – ToronVisc™ AVT-CWS
Coal Water Slurry Viscosity Tester measures coal slurry viscosity for power generation and mining industries. This precision instrument utilizes sixteen-bit microprocessors and high-resolution stepper motors. Digital backlit LCD interfaces display real-time data for multiphase flow analysis.
Integrated RTD sensors monitor fluid temperatures with high accuracy during fuel formulation. Automatic torque alerts activate when values exceed ninety percent to maintain optimal test conditions. RS232 communication ports facilitate seamless integration with external systems for data logging. Operators manage parameters through intuitive controls.
Technical Advantages
-
Precision Measurement: Utilizes sixteen-bit microprocessors for stable signal processing in industrial and laboratory environments.
-
Advanced Monitoring: Features real-time displays of shear rate, shear stress, and torque for comprehensive analysis.
-
Thermal Regulation: Monitors samples with 0.1 degree accuracy across a broad temperature range.
-
System Communication: Supports bi-directional connectivity for PC calibration and automated report generation.
Technical Specifications
|
Specification |
Value |
|
Viscosity Range |
100 – 170,000 mPa.s |
|
Shear Rate |
1 s-1 to 180 s-1 |
|
Rotational Speed |
1 – 200 RPM |
|
Accuracy |
+/- 2% FS |
|
Repeatability |
+/- 1% FS |
|
Temperature Range |
5 to 75 C |
Standard Configuration
Standard configurations feature the main instrument unit and an integrated RTD temperature sensor. Each package includes a digital backlit LCD and RS232 communication cables. Professional software supports offline measurement programs for coal chemical research. This setup validates apparent viscosity for fuel optimization.
