Portable Viscometer
The ToronVisc™ PDV Series is a high-performance portable viscometer designed for precision on-site fluid testing. Engineered for oil, ink, and resin quality control, it delivers professional-grade viscosity analysis within a lightweight, handheld footprint without compromising on durability or battery autonomy.
- Viscosity Ranges Up To 1,200,000 mPa.s
- Battery Run Time Up To 8 Hours
- Four Rotational Speeds Reaching 200 RPM
- Testing Accuracy Maintained Within ±2.0% FSR
Get personalized pricing for your specific requirements

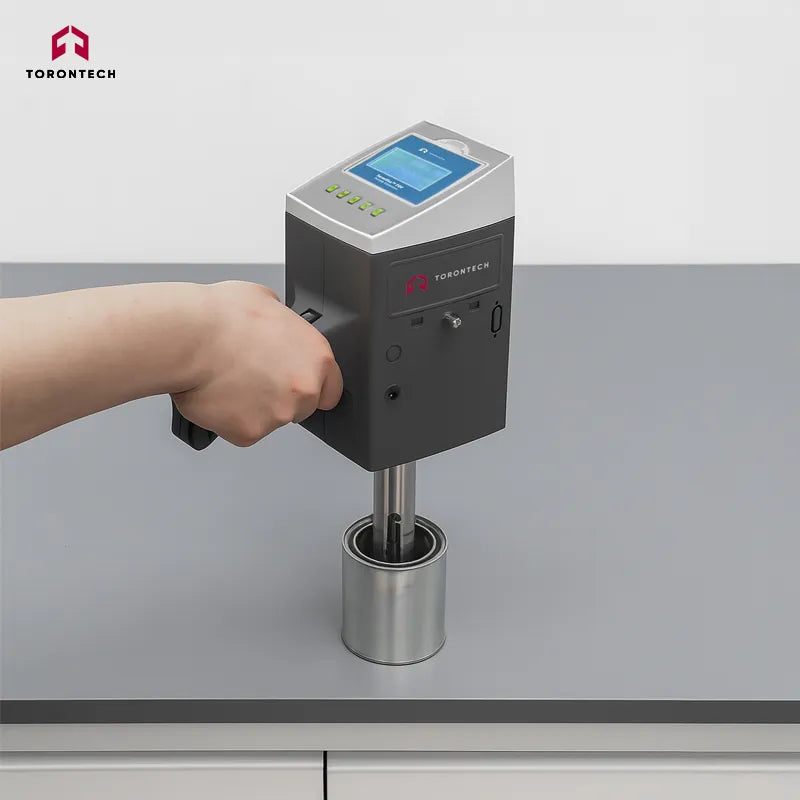

Portable Viscometers - ToronVisc™ PDV Series
Portable Viscometers deliver real-time viscosity testing directly to production floors and field environments. This compact Brookfield-style instrument offers precision performance in a handheld format. Microcomputer controls manage high-resolution LCD displays for quick checks. Portable designs support testing for oils, inks, and resins.
Lithium batteries support eight hours of continuous use during onsite quality control. Rugged structures maintain durability for long-term applications in agriculture and construction. LCD screens display viscosity, torque, and temperature parameters with over-range alarms. Lightweight frames allow for convenient measurements in remote factory settings.
Technical Advantages
-
Handheld Portability: Designed for onsite and remote applications with lightweight, rugged construction for industrial use.
-
Extended Battery: Integrated lithium batteries allow for eight hours of continuous measurement without external power.
-
Clear Visualization: LCD screens provide real-time tracking of viscosity, spindle information, and rotational speed.
-
Full-Scale Calibration: Microcomputer systems maintain linearity at all levels to provide accurate data across ranges.
Technical Specifications
|
Model |
Viscosity Range (mPa.s) |
Speed Range (RPM) |
Accuracy |
|
ToronVisc™ LPDV-1 |
25 – 150,000 |
60, 100, 150, 200 |
±2.0% FSR |
|
ToronVisc™ RPDV-1 |
50 – 300,000 |
60, 100, 150, 200 |
±2.0% FSR |
|
ToronVisc™ HPDV-1 |
200 – 1,200,000 |
60, 100, 150, 200 |
±2.0% FSR |
|
Repeatability |
±1.0% FSR |
— |
— |
Standard Configuration
Standard configurations feature the main portable instrument and a set of specialized B-type spindles. Each package includes a lithium battery and an AC/DC power supply. Humanized designs facilitate fast measurement during onsite inspections. Testing protocols support accuracy across the full scale for various fluids.
