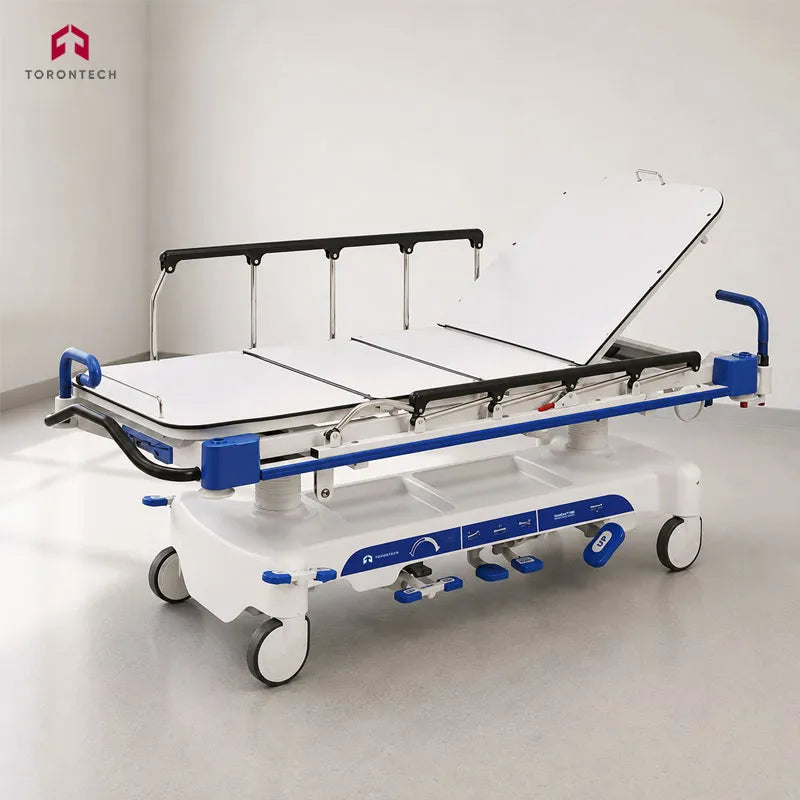

Hydraulic Transfer Stretcher — ToronCare™ 1180
The ToronCare™ 1180 is a premium dual-hydraulic transfer stretcher engineered for advanced patient positioning and comprehensive acute care. Designed for surgical and emergency workflows, it delivers six-function articulated positioning and direct X-ray capability within a heavy-duty, two-caregiver frame without compromising on clinical efficiency or maneuverability.
- 630 To 860 Mm Height
- 6 Articulated Positioning Functions
- 0° To 13° Trendelenburg Tilt
- 0° To 30° Knee Gatch
Get personalized pricing for your specific requirements
- Manufacturer warranty included
- Calibration certificate on request
- Worldwide shipping and installation support
- Application specialists available before you buy
Hydraulic Transfer Stretcher
The ToronCare™ 1180 is a premium dual-hydraulic transfer stretcher designed for advanced patient positioning, hospital transport, examination, and procedure preparation. Its six-function positioning system combines hydraulic cylinders, gas springs, and a manual crank to provide precise adjustment across multiple clinical positions. As one of the most feature-rich models in the ToronCare™ hospital stretcher range, it is designed for demanding acute care and surgical environments.
Designed for hospitals and healthcare facilities in the U.S. and Canada, the ToronCare™ 1180 provides a versatile hospital stretcher bed platform for transport, examination, and patient preparation. Dual hydraulic height adjustment provides a 630–860 mm bed-board-to-ground range, while the adjustable backrest supports 0° to 85° articulation. The knee gatch adjusts from 0° to 30°, and Trendelenburg and reverse Trendelenburg positioning provide tilt adjustment from 0° to 13°. Two sets of push handles positioned at the head and foot ends support two-caregiver-assisted patient transport and help improve handling during extended hospital stretcher transport.
The radiolucent bed board allows X-ray imaging to be performed while the patient remains on the stretcher, helping reduce unnecessary patient transfers between departments. Foldable stainless steel side rails provide secure patient support while maintaining convenient access for clinical staff. An optional 200 mm castor configuration increases the bed-board-to-ground height range to 680–910 mm, providing additional compatibility with higher examination and procedure surfaces.
With a 105 kg net weight, the ToronCare™ 1180 provides a durable hydraulic hospital emergency stretcher platform suited to frequent use in emergency departments, surgical areas, examination rooms, and patient transport workflows.
Hydraulic Transfer Stretcher — ToronCare™ 1180 Applications
-
General Hospital Transport: Designed for intra-hospital stretcher transport across emergency, surgical, diagnostic, and general care departments, with hydraulic height adjustment for efficient patient handling.
-
Emergency Department: Suitable for hospital emergency stretcher applications requiring multiple patient positioning functions for assessment, stabilization, and transport.
-
Radiology and Fluoroscopy: The radiolucent bed board supports X-ray imaging directly on the stretcher, helping reduce unnecessary patient transfers during diagnostic procedures.
-
Operating Room Transport: Supports pre-operative and post-operative patient movement with adjustable backrest positioning and Trendelenburg and reverse Trendelenburg tilt.
-
Examination and Consultation: Functions as both a hospital stretcher bed and examination platform, providing adjustable positioning for clinical assessment and patient consultation.
-
Complex Patient Transport: Two sets of push handles support two-caregiver stretcher transportation, providing practical handling for patients requiring additional staff assistance during movement.
-
Multi-Function Hydraulic Positioning: Suitable for healthcare facilities seeking a six-function hydraulic hospital stretcher that provides extensive positioning capability without the added complexity, weight, and cost associated with a fully electric system.
Hydraulic Transfer Stretcher — ToronCare™ 1180 Key Features
-
Double hydraulic system: Foot-pedal-operated hydraulic height adjustment with a manual crank for secondary adjustment and positioning control.
-
Six positioning functions: Adjustable stretcher height, backrest from 0° to 85°, knee gatch from 0° to 30°, and Trendelenburg/reverse Trendelenburg positioning from 0° to 13°.
-
Adjustable height range: 630–860 mm from bed board to ground with standard configuration. Optional 200 mm diameter castors provide an increased height range of 680–910 mm.
-
Dual push-handle sets: Push handles positioned at both the head and foot ends support two-caregiver stretcher transportation and improved maneuverability.
-
Radiolucent bed board: Enables X-ray and fluoroscopy imaging directly on the stretcher, reducing the need for patient transfer during diagnostic procedures.
-
Foldable stainless steel side rails: Provide patient support and allow convenient access to the patient and imaging area when lowered.
-
Central-locking swivel castors: 360° swivel castors with central locking provide controlled movement and stability. Standard 150 mm diameter castors can be upgraded to optional 200 mm diameter castors.
-
Retractable fifth directional wheel: Provides improved steering control and directional stability during long-distance hospital stretcher transportation.
-
105 kg net weight: Provides a robust and durable hydraulic stretcher platform for frequent use in demanding hospital environments.
-
Standard IV pole: Supplied with an IV pole to support intravenous therapy during patient transport and positioning.
Theory and Method
The ToronCare™ 1180 uses a double hydraulic system for primary stretcher height adjustment. Two independent hydraulic cylinders provide stable, parallel movement of the bed platform across the 630–860 mm height range, measured from the bed board to the ground. Foot pedals positioned on both sides of the stretcher activate the hydraulic pump, allowing caregivers to adjust the platform height from either side. A manual crank provides a secondary height-adjustment method for fine positioning and continued operation when hydraulic pressure is unavailable.
The backrest adjusts from 0° to 85°, while the knee gatch adjusts from 0° to 30° using gas-spring mechanisms. These mechanisms reduce the physical effort required for positioning while supporting smooth and controlled movement. Trendelenburg and reverse Trendelenburg positioning are hydraulically controlled across a 0° to 13° range, providing consistent positioning during clinical procedures, examination, and stretcher transportation.
The foldable stainless steel side rails can be lowered to provide unobstructed access to the patient and expose the radiolucent bed board for diagnostic imaging. The radiolucent surface supports X-ray and fluoroscopy procedures directly on the stretcher, helping minimize patient movement between the stretcher and imaging equipment.
Two sets of push handles, positioned at both the head and foot ends, allow two caregivers to share the physical effort required during medical stretcher transport. This configuration supports controlled movement through long hospital corridors, ramps, doorways, and confined areas. Central-locking 360° swivel castors with a retractable 5th directional wheel provide controlled steering and mobility. Standard castors measure 150 mm in diameter, while the optional 200 mm castors increase the operational height range to 680–910 mm.
Hydraulic Transfer Stretcher — ToronCare™ 1180 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ToronCare™ 1180 |
| Type | Hydraulic Transfer Stretcher |
| Overall Dimension | 2060 × 745 mm (L × W) |
| Height Range (Bed Board to Ground) | 860 – 630 mm |
| Castor Option (200 mm) | Height range: 910 – 680 mm |
| Bed Board Dimension | 1902 × 630 mm (L × W) |
| Backrest Angle | 0° – 85° |
| Knee Gatch | 0° – 30° |
| Trendelenburg / Rev. Trendelenburg | 0° – 13° |
| Height Adjustment | Double hydraulic (foot-pedal) + manual crank |
| Side Rails | Foldable stainless steel |
| Bed Board | Radiolucent — X-ray imaging capable |
| Push Handles | 2 sets — head and foot sides |
| Castor Diameter | 150 mm standard (200 mm optional), central-lockable 360° swivel |
| 5th Wheel | Retractable, directional control |
| Net Weight | 105 kg |
| Standard Accessories | IV pole |
