Homecare Hospital Bed (Adjustable)
The ToronCare™ 5086 is a heavy-duty adjustable homecare bed designed for advanced fall prevention and ergonomic patient handling. Engineered for residential care and long-term facilities, it delivers ultra-low height adjustment and multi-axis motorized positioning within a warm home-style frame without compromising on bariatric capacity.
- 240–640 Mm Electric Height Adjustment
- 240 Kg Safe Working Load
- 12° Whole-Bed Powered Tilt Range
- 0–70° Backrest And 0–30° Knee Bend
Get personalized pricing for your specific requirements
- Manufacturer warranty included
- Calibration certificate on request
- Worldwide shipping and installation support
- Application specialists available before you buy

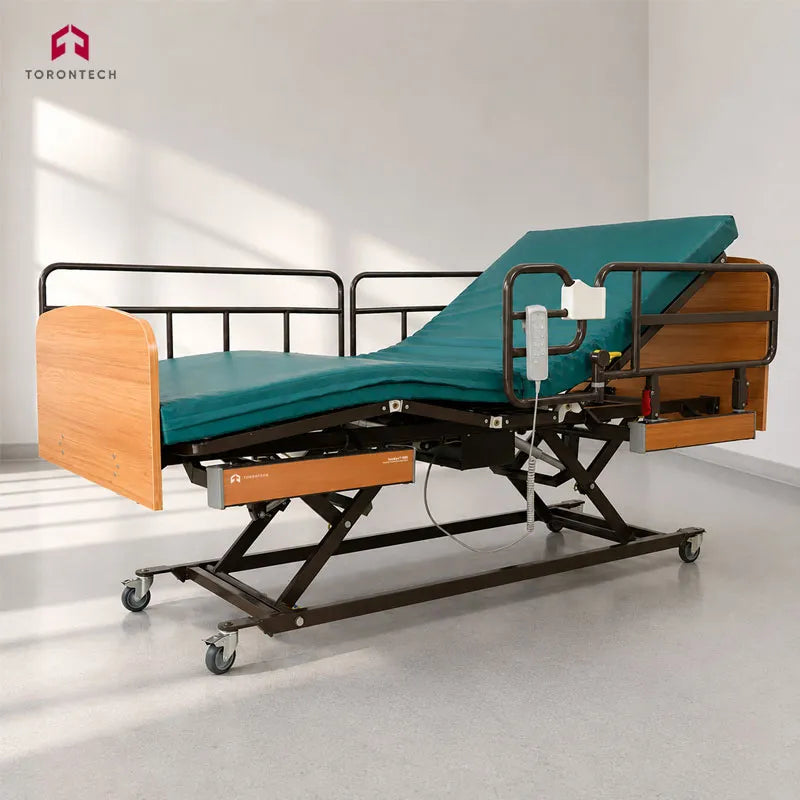

Homecare Hospital Bed (Adjustable) – ToronCare™ 5086
ToronCare™ 5086 is an adjustable homecare hospital bed designed for safe, comfortable patient care in residential and long-term care settings. Its full electric height adjustment raises the mattress platform to a convenient working level or lowers it close to the floor with the push of a button. The height range extends from an ultra-low 240 mm to 640 mm, helping reduce fall-related risks for patients while allowing caregivers to work at a more comfortable height. Powered backrest and knee adjustment, along with whole-bed tilt, provide flexible positioning for daily care and long-term use.
As a height-adjustable homecare bed, the ToronCare™ 5086 addresses two important care challenges: reducing caregiver strain caused by working at low bed heights and minimizing patient injury risks associated with falls from elevated beds. Its 240 kg (529 lb) safe working load supports larger patients and additional bedside equipment. Steel insert-type side rails provide added protection against falls, while the optional stand-assist rail gives mobile patients additional support when getting into or out of bed.
Wooden head and foot boards give the bed a warm, residential appearance that fits naturally into a home bedroom. The quiet scissor-lift base provides smooth height adjustment, while 75 mm braked castors make the bed easy to move between rooms when needed. ToronCare™ 5086 is suitable for home healthcare, nursing homes, assisted care environments, and long-term care facilities requiring a versatile adjustable hospital bed for bedridden and reduced-mobility patients.
Homecare Hospital Bed (Adjustable) - ToronCare™ 5086 Applications
ToronCare™ 5086 is designed for patients who spend extended periods in bed and require regular repositioning, height adjustment, and supportive care. Its electric positioning functions make it suitable for both home healthcare and professional long-term care environments.
-
Fall-Risk and Dementia Care: The ultra-low 240 mm bed height keeps the sleeping surface closer to the floor, helping reduce the potential severity of injuries associated with falls from bed.
-
Caregiver-Intensive Home Care: Full electric height adjustment allows caregivers to raise the bed to a more comfortable working level during washing, dressing, repositioning, and patient transfers.
-
Stroke and Cerebrovascular Recovery: Trendelenburg and reverse Trendelenburg positioning provide additional options for patient positioning when directed by a healthcare professional.
-
Post-Surgical and Rehabilitation Recovery: Adjustable backrest, knee section, and whole-bed tilt support different resting and sitting positions during recovery and rehabilitation.
-
Elderly and Geriatric Care: The low entry height and optional stand-assist rail provide additional support for patients with reduced mobility when entering or leaving the bed.
-
Bariatric and Heavy-Duty Use: The 240 kg (529 lb) safe working load accommodates larger patients while providing capacity for necessary bedside care equipment.
-
Respiratory and Postural Drainage Support: Adjustable tilt positioning can assist with prescribed patient positioning for respiratory comfort and postural drainage under clinical supervision.
-
Nursing Homes and Long-Term Care Facilities: Powered positioning functions, adjustable height, and a heavy-duty frame make the bed suitable for ongoing patient care across multiple shifts.
Standards
ToronCare™ 5086 is designed to support requirements related to electrical safety, medical bed performance, and patient safety in adult medical care environments. The manufacturer holds EN ISO 13485:2016 certification.
-
ISO 13485 - Medical Devices: Quality Management Systems for Regulatory Purposes
Homecare Hospital Bed (Adjustable) - ToronCare™ 5086 Key Features
ToronCare™ 5086 combines powered height adjustment, clinical positioning functions, and a heavy-duty frame to support safer patient care while improving caregiver access. Its adjustable design provides flexible positioning for home healthcare, rehabilitation, elderly care, and long-term care environments.
-
Electric Height Adjustment (240 to 640 mm): The powered scissor-lift system allows the bed to move between a low resting position and a raised care height, helping reduce fall risks and caregiver strain during patient care.
-
Ultra-Low 240 mm Floor Height: The low deck position keeps the mattress closer to the floor, helping reduce the potential impact of falls for restless, elderly, or dementia patients.
-
Whole-Bed Tilt Up to 12°: Head-down and head-up positioning supports Trendelenburg and reverse Trendelenburg configurations for prescribed clinical positioning and patient care.
-
Powered Backrest to 70°: Motorized backrest adjustment provides an upright position for activities such as feeding, reading, and resting while supporting comfortable patient positioning.
-
Powered Knee and Leg Bend to 30°: The adjustable knee section helps maintain patient positioning, reduce forward sliding, and provide additional support for lower-limb comfort.
-
Multi-Function Handheld Remote: A single controller operates the backrest, knee section, bed height, tilt, and under-bed light for convenient bedside adjustment.
-
Optional Stand-Assist Side Rail: The swing-out grab rail provides additional support for mobile patients when sitting up, standing, and transferring into or out of bed.
-
Steel Insert-Type Side Rails: Secure side rails help protect patients from accidental falls during repositioning, turning, and routine bed use.
-
Under-Bed Night Light: An integrated floor-level light illuminates the area beneath and around the bed, supporting safer nighttime checks and transfers.
-
75 mm Braked Castors: Swivel castors with reliable brakes and an anti-tangle design provide stable positioning and smooth movement when the bed needs to be relocated.
-
Residential Wood Head and Foot Boards: Wooden panels provide a warm, home-style appearance that helps the adjustable hospital bed blend into residential care environments.
Theory and Method
Bed height plays an important role in patient safety and caregiver ergonomics. Working with a bed that is too low can require repeated bending during washing, dressing, repositioning, and transfers, increasing physical strain. Conversely, a higher sleeping surface can increase the distance a patient may fall. ToronCare™ 5086 addresses both requirements with an electric scissor-lift system. The deck adjusts from 240 mm above the floor for a lower resting position to 640 mm for a more accessible working height, allowing caregivers to adjust the bed according to the task.
Whole-bed tilt changes the patient's position relative to gravity and can provide additional options for prescribed clinical positioning. Trendelenburg positioning places the head lower than the feet, while reverse Trendelenburg raises the head relative to the feet. These positions may be used for specific clinical applications, including postural drainage and other positioning requirements, under appropriate professional guidance. ToronCare™ 5086 provides up to 12° of tilt in either direction, allowing controlled adjustment through the bed's powered controls.
The articulating mattress platform supports different positions for comfort and daily care. Raising the backrest to 70° creates a more upright posture for activities such as eating, reading, and resting. The knee section can bend up to 30° to help maintain body position and reduce forward sliding. Leg elevation can also support comfortable lower-limb positioning. A semi-recumbent configuration combines a raised backrest with moderate knee flexion, providing a practical position for extended periods of bed rest and routine patient care.
Homecare Hospital Bed (Adjustable) - ToronCare™ 5086 Technical Specifications
| Parameter | Specification |
|---|---|
| Overall Dimensions (side rails raised) | 2100 × 1010 × 240-640 mm (82.7 × 39.8 × 9.4-25.2 in) |
| Height Range (deck) | 240 to 640 mm (9.4 to 25.2 in) |
| Side Rail Height Above Mattress | 390 mm (15.4 in) |
| Electric Backrest Angle | 0 to 70° |
| Electric Knee / Leg Bend | 0 to 30° |
| Whole-Bed Tilt | Up to 12° head-up and head-down |
| Safe Working Load | 240 kg (529 lb) |
| Drive System | Electric linear actuators with scissor lift |
| Control | Multi-function handheld remote |
| Side Rails | Steel insert-type (standard); stand-assist rail optional |
| Castors | Four 75 mm braked universal swivel casters |
| Head and Foot Boards | Wood panel |
Companion Products
| Product | Description |
|---|---|
| Static Anti-Bedsores Mattress | Static pressure-redistributing foam mattress that helps prevent pressure ulcers |
| T-30 Mobile Overbed Table | Height-adjustable rolling table that extends over the bed for meals, reading, or activities |
