High-Temperature Touchscreen Viscometers
The ToronVisc™ AI250/AI500 Series is a high-performance touchscreen viscometer designed for precision high-temperature fluid testing. Engineered for thermoplastic, adhesive, and wax R&D, it delivers professional-grade viscosity analysis within an automated, metal-lifting footprint without compromising on data security or connectivity.
- Peak Thermal Testing Up To 500°C
- Broad Fluid Range From 5 To 10,000,000 mPa·s
- Variable Speed Range From 0.1 To 200 RPM
- Highly Stable ±0.2% Full Scale Repeatability
Get personalized pricing for your specific requirements

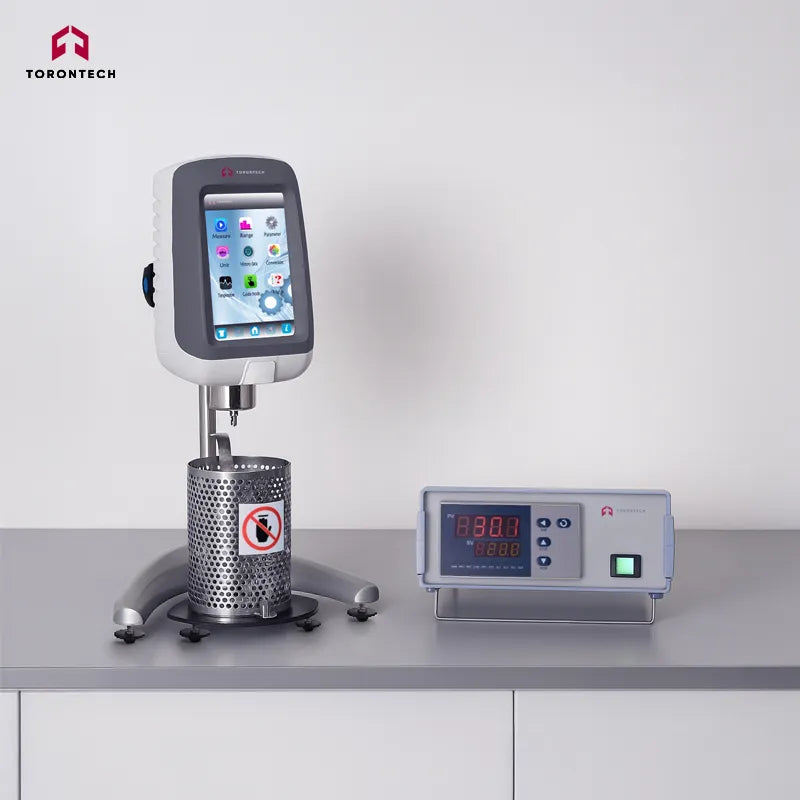

High-Temperature Touchscreen Viscometers – ToronVisc™ AI250 / AI500
High Temperature Touchscreen Viscometers measure viscosity for adhesives, waxes, and pitch. These rotational instruments feature intuitive interfaces and advanced temperature control systems. Metal lifter systems allow for automatic positioning during testing. Research labs use these tools for quality control.
Programmable settings support thermal analysis up to five hundred degrees Celsius for thermoplastics and resins. Gigabit Ethernet ports facilitate fast data export and device communication. Operators monitor real-time parameters using the high-resolution display. Password-protected access protects calibration for viscosity and temperature settings.
Technical Advantages
-
Thermal Control: Integrated systems manage temperatures up to five hundred degrees for molten adhesives.
-
Automated Positioning: Metal lifters provide automatic height adjustment to maintain consistent spindle placement.
-
Fast Connectivity: Includes USB and Gigabit Ethernet ports for rapid data transfer to computers.
-
Secure Access: Password-protected calibration controls protect sensitive data during high-temperature analysis.
Technical Specifications
|
Specification |
ToronVisc™ AI250 |
ToronVisc™ AI500 |
|
Viscosity Range |
5 – 10,000,000 mPa·s |
5 – 10,000,000 mPa·s |
|
Temperature Range |
Ambient +5°C to 250°C |
Ambient +5°C to 500°C |
|
Rotational Speed |
0.1 – 200 RPM |
0.1 – 200 RPM |
|
Accuracy |
±1.0% Full Scale |
±1.0% Full Scale |
|
Repeatability |
±0.2% Full Scale |
±0.2% Full Scale |
|
Voltage |
100–240V AC |
100–240V AC |
Standard Configuration
Standard configurations feature the main instrument unit and an integrated temperature control system. Each package includes a metal lifter and specialized SC4 spindles. Universal power supplies maintain anti-interference protection for operational stability. Testing protocols align with high-performance polymer requirements across demanding production settings.
