High-Temperature Rotational Viscometer
The ToronVisc™ T3/T4 Series is a high-performance rotational viscometer designed for precision high-temperature fluid analysis. Engineered for polymer, adhesive, and asphalt R&D, it delivers professional-grade viscosity testing within an automated, electric-lifting footprint without compromising on measurement range or thermal control.
- Extreme Temperature Testing Up To 500°C
- Broad Viscosity Coverage From 5 To 10,000,000 mPa·s
- Variable Speed Outputs From 0.1 To 200 RPM
- Reliable Precision With ±0.2% Full Scale Repeatability
Get personalized pricing for your specific requirements

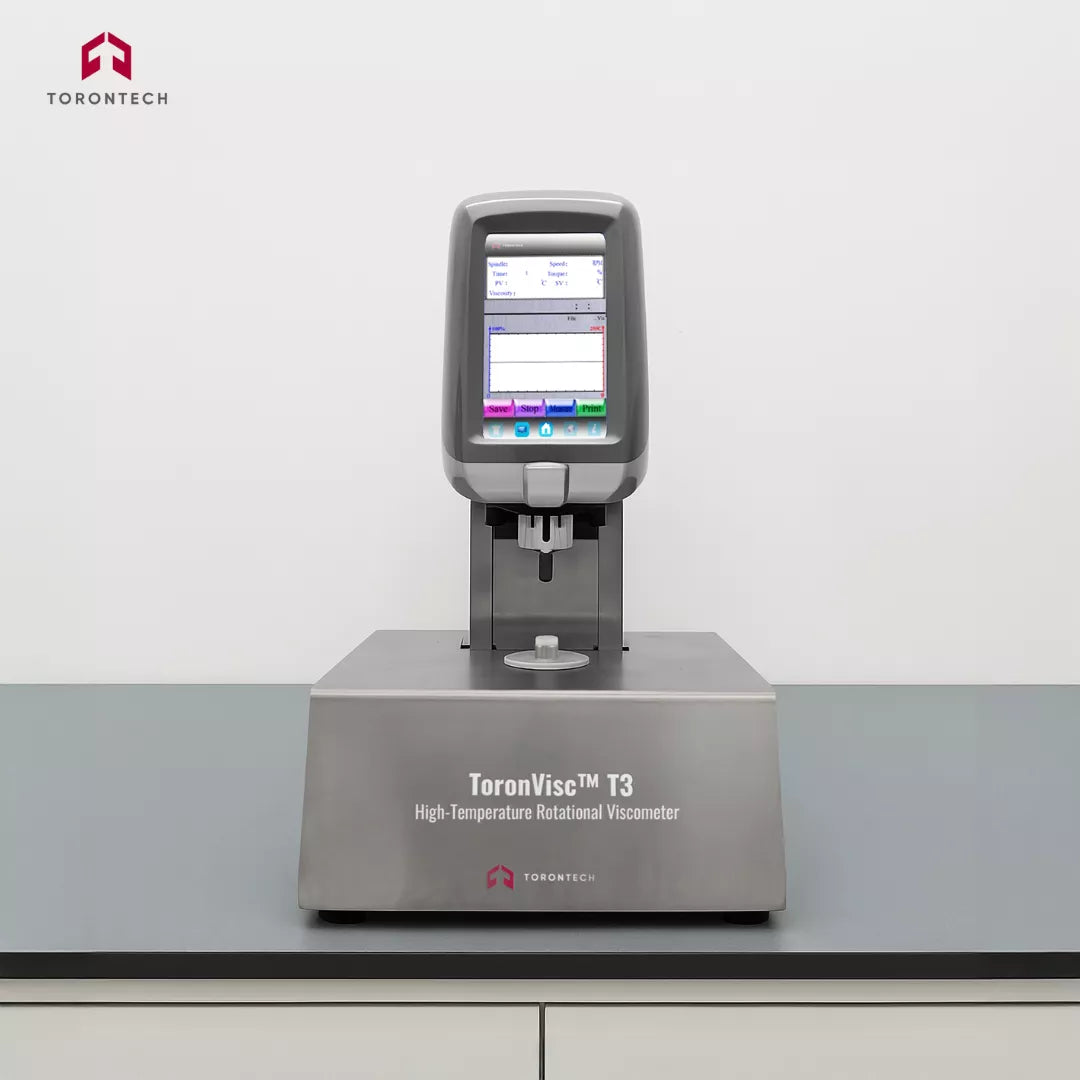

High-Temperature Rotational Viscometer – ToronVisc™ T3/T4
High-Temperature Rotational Viscometer measure viscosity for hot melt adhesives, pitch, and polymers. These all-in-one systems feature integrated heating and electric lifting for automated operation. Precise sensors evaluate viscous materials at elevated temperatures. Laboratories utilize these tools for quality control and material analysis.
Integrated heating systems allow for programmable temperature control up to five hundred degrees Celsius. Electric lifts with auto positioning facilitate hands-free spindle engagement for stable performance. Operators monitor detailed live data visualization through a seven-inch color touchscreen. Gigabit Ethernet ports support fast data transfer to computers.
Technical Advantages
-
Thermal Integration: Combines heating and viscometry in a single platform for asphalt and wax testing.
-
Automated Positioning: Features electric lifting modules to maintain consistent spindle alignment without manual adjustment.
-
Broad Temperature Range: Supports high-temperature analysis reaching five hundred degrees for resins and plastics.
-
Secure Calibration: Includes password-protected control for temperature and viscosity settings to maintain data integrity.
Technical Specifications
|
Model |
ToronVisc™ T3 |
ToronVisc™ T4 |
|
Viscosity Range |
5 – 10,000,000 mPa·s |
5 – 10,000,000 mPa·s |
|
Temperature Range |
Ambient +5°C to 250°C |
Ambient +5°C to 500°C |
|
Speed Range |
0.1 – 200 RPM |
0.1 – 200 RPM |
|
Accuracy |
±1.0% Full Scale |
±1.0% Full Scale |
|
Repeatability |
±0.2% Full Scale |
±0.2% Full Scale |
|
Power Supply |
100–240V AC |
100–240V AC |
Standard Configuration
The standard configuration features the main viscometer unit and an integrated heating system. Each package includes specialized SC4 spindles and an electric lift with auto positioning. Universal power supplies maintain anti-interference protection. Testing protocols support high-temperature evaluation for paraffin and bitumen samples.
