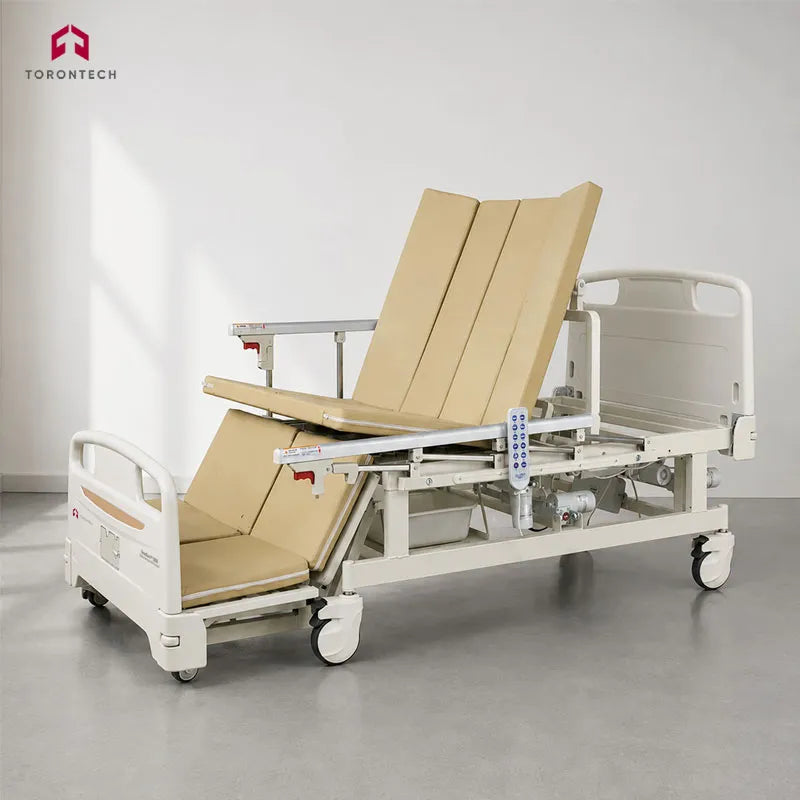

Electric Homecare Bed (Premium)
The ToronCare™ 5088 is a premium electric homecare bed designed for intensive patient support and automated pressure relief. Engineered for high-dependency residential and institutional care, it delivers programmable lateral turning and powered toileting within an intuitive, voice-guided platform without requiring continuous manual caregiver intervention.
- 30- And 45-Minute Automated Turning Cycles
- 50° Dual-Direction Powered Lateral Turning
- 200 Kg Safe Working Load
- 0–70° Backrest And 0–50° Leg Articulation
Get personalized pricing for your specific requirements
- Manufacturer warranty included
- Calibration certificate on request
- Worldwide shipping and installation support
- Application specialists available before you buy
Electric Homecare Bed (Premium) - ToronCare™ 5088
ToronCare™ 5088 is a premium electric homecare bed designed for advanced long-term patient care, combining automated repositioning, powered toileting, and multi-function electric adjustment. A handheld remote controls the backrest, leg sections, lateral turning, one-touch chair positioning, and one-touch return to a flat position. Voice-guided prompts confirm each command for easier operation. Programmable timed turning can reposition the patient every 30 or 45 minutes without continuous caregiver intervention, making this electric homecare bed suitable for overnight, residential, and round-the-clock care.
Designed around patient comfort, safety, and dignity, the ToronCare™ 5088 features a six-layer coconut-fiber and foam mattress with an anti-slide seating design for greater stability when the patient is raised to a sitting position. The powered commode pan supports toileting without requiring the patient to leave the bed, while the red emergency-stop button immediately stops all motor functions when needed. With a 200 kg (441 lb) safe working load, foldable aluminum side rails, and integrated IV pole sockets, the bed combines homecare convenience with essential clinical functionality.
Reinforced HDPE head and foot boards provide a durable, easy-to-clean surface for everyday care. Quiet, self-lubricating braked castors support smooth bed repositioning while helping keep the bed securely in place. The ToronCare™ 5088 is well suited for homecare environments, nursing homes, and long-term care facilities requiring a premium electric hospital bed for bedridden, elderly, or high-dependency patients.
Electric Homecare Bed (Premium) - ToronCare™ 5088 Applications
The ToronCare™ 5088 is designed for patients requiring intensive, continuous care in homecare and professional healthcare environments. Its automated positioning, powered toileting, voice-guided controls, and multi-function electric adjustments support caregivers while promoting patient comfort, safety, and dignity.
-
High-Dependency and Bedridden Care: Automated timed turning can reposition immobile patients at scheduled 30 or 45 minute intervals, supporting regular pressure-relief positioning with less manual intervention.
-
Overnight and Round-the-Clock Home Care: Programmable turning cycles and voice-guided controls help reduce routine caregiver interventions during nighttime and continuous care.
-
Stroke and Neurological Recovery: Electric lateral turning, chair positioning, and anti-slide seating support safer repositioning for patients with limited mobility.
-
Post-Surgical and Rehabilitation Recovery: Adjustable backrest, thigh, and leg sections provide flexible positioning for rest, recovery, examinations, and foot care.
-
Elderly and Geriatric Care: Voice-guided commands and a clearly labeled handheld remote simplify bed operation for older patients and caregivers.
-
Incontinence and Toileting Support: The powered commode pan enables toileting directly from the bed, helping maintain patient dignity while reducing physical demands on caregivers.
-
Palliative and Hospice Care: Gentle automated positioning and a six-layer coconut-fiber and foam mattress provide supportive positioning and comfort for patients receiving extended care.
-
Nursing Homes and Long-Term Care Facilities: Durable construction, electric positioning functions, and automated turning support continuous use across multi-shift care environments.
Standards
The ToronCare™ 5088 is designed and documented in accordance with international requirements for medical device quality management, electrical safety, electromagnetic compatibility, and medical bed performance. The bed is classified as Class I equipment with a Type B applied part and an IPX4 ingress protection rating. The product line is supported by EN ISO 13485 certification.
-
ISO 13485 - Medical Devices: Quality management systems for regulatory purposes.
Electric Homecare Bed (Premium) - ToronCare™ 5088 Key Features
The ToronCare™ 5088 combines advanced electric positioning, automated patient care, comfort-focused design, and integrated safety features in a premium electric homecare bed for demanding long-term care environments.
-
Automated Timed Turning: Programmable 30 or 45 minute turning cycles automatically reposition the patient from side to side, supporting regular pressure-relief positioning during overnight and continuous care.
-
Electric Lateral Turning to 50°: Powered lateral rotation of up to 50° in either direction helps redistribute pressure, improve positioning, and reduce the physical demands of manual patient handling.
-
Anti-Slide Chair and Backrest: A 12° seat tilt and 30° inward-angled side panels help keep the patient securely positioned when the backrest is raised, reducing forward and lateral sliding.
-
One-Key Chair Position: A single control transforms the mattress platform into a seated position for activities such as eating, reading, or watching television.
-
One-Key Return to Flat: One-touch operation returns the bed smoothly to a level position from an adjusted configuration, simplifying routine care.
-
Powered Commode Pan: The integrated electric bedpan raises and lowers for in-bed toileting, supporting patient dignity while reducing caregiver lifting and transfers.
-
Voice-Guided Controls: Spoken prompts provide confirmation after control inputs, helping users identify selected functions and reduce operating errors.
-
Emergency-Stop Button: A prominent red emergency-stop button immediately stops motorized movement when rapid shutdown is required.
-
Powered Backrest, Thigh, and Leg Sections: Motorized positioning raises the backrest to 70°, adjusts the thigh section to 20°, and lowers the leg section to 50° for improved positioning and foot-care access.
-
Six-Layer Coir and Foam Mattress: Four layers of natural coconut fiber combined with two layers of high-resilience foam create a breathable, moisture-resistant mattress designed for extended patient use.
-
Reinforced HDPE Head and Foot Boards: High-density polyethylene panels provide a durable, easy-to-clean surface designed to withstand routine daily care.
-
Foldable Aluminum Alloy Side Rails: Lightweight, high-strength side rails fold down alongside the frame and lock into position to provide a protective bedside barrier.
-
Built-In IV Pole Sockets: Steel-lined sockets positioned on both sides of the head end provide secure mounting points for an IV pole.
-
Quiet Braked Castors: Four smooth-rolling castors with enclosed, self-lubricating bearings support easy bed movement, while individual brakes help keep the bed securely positioned.
Theory and Method
Pressure ulcers can develop when prolonged, unrelieved pressure over bony areas such as the sacrum and hips restricts blood flow and contributes to tissue damage. Regular repositioning helps relieve pressure from vulnerable areas and supports healthy circulation. Maintaining a consistent repositioning schedule manually can be challenging during overnight and continuous care. The ToronCare™ 5088 automates this process with programmable 30 or 45 minute turning cycles, tilting the mattress platform up to 50° to either side to provide consistent lateral repositioning with less caregiver intervention.
Raising the backrest can also contribute to forward sliding and shear forces. As the upper body moves upward, the patient's body can slide down the mattress, creating friction and shear around the sacral area. The ToronCare™ 5088 addresses this positioning challenge with a seat board that tilts upward by 12° and side panels angled inward by 30°. These features help stabilize the patient and maintain a more secure seated position during activities such as eating, reading, or watching television.
Medical beds used around moisture and operated in homecare environments require appropriate electrical protection. The ToronCare™ 5088 is classified as Class I equipment, with its metal frame connected to protective earth to provide a path for fault current. Its Type B applied part classification provides defined patient protection against electrical current. The IPX4 rating provides protection against water splashes from different directions, supporting use in care situations involving washing and toileting. A prominent red emergency-stop button provides rapid shutdown of motorized functions, while voice-guided prompts confirm control inputs and help support accurate operation.
Electric Homecare Bed (Premium) - ToronCare™ 5088 Technical Specifications
| Parameter | Specification |
|---|---|
| Overall Dimensions | 2050 × 1020 × 465 mm ±10 mm (80.7 × 40.2 × 18.3 in) |
| Mattress Platform Size | 1915 × 885 mm (±10 mm) |
| Side Rail Height Above Mattress | 325 mm ±10 mm (12.8 in) |
| Backrest Angle | 0 to 70° (±5°) |
| Thigh Section Angle | 0 to 20° (±5°) |
| Leg Section Down-Fold | 0 to 50° (±5°) |
| Lateral Turning Angle | 0 to 50° left and right (±5°) |
| Auto-Turning Modes | 30-minute and 45-minute cycles |
| Safe Working Load | 200 kg (441 lb) |
| Drive System | Electric linear actuators |
| Control | Voice-guided handheld remote with emergency stop |
| Side Rails | Foldable high-strength aluminum alloy |
| Head and Foot Boards | Reinforced imported HDPE |
| Mattress | Six-layer: four coconut coir, two high-resilience foam |
| Toileting | Powered commode pan |
| IV Pole Sockets | Steel-lined, both sides of head end |
| Castors | Four braked swivel casters, self-lubricating bearings |
Electrical Parameters
| Parameter | Specification |
|---|---|
| Voltage | 220 VAC, 50 Hz (110V is also available) |
| Input Power | 400 VA |
| Ingress Protection | IPX4 |
| Safety Classification | Class I (protective earth) |
| Applied Part | Type B |
Companion Products
| Product | Description |
|---|---|
| DE-1 Electric Patient Lift | Powered mobile lift for transferring the patient between the bed and a chair or wheelchair |
| D-25 Bedside Cabinet | Bedside storage cabinet for patient belongings and supplies |
| Rotation Pad | Low-friction turntable pad that eases repositioning and turning |
| U-Shaped Turning Pad | Contoured pad that supports the patient on their side during turning and changing |
