Digital Viscometer
The ToronVisc™ E Series is a high-performance digital rotational viscometer designed for precision low and medium viscosity testing. Engineered for cosmetic and pharmaceutical R&D, it delivers professional-grade dynamic and kinematic testing within a streamlined, user-friendly footprint without compromising on calibration accuracy or anti-interference power.
- Viscosity Ranges Reaching Up To 2,000,000 mPa.s
- Eight Variable Speeds Ranging Up To 60 RPM
- Testing Precision Within ±1.0% FSR Accuracy
- Consistent Repeatability Reaching ±0.2% FSR
Get personalized pricing for your specific requirements

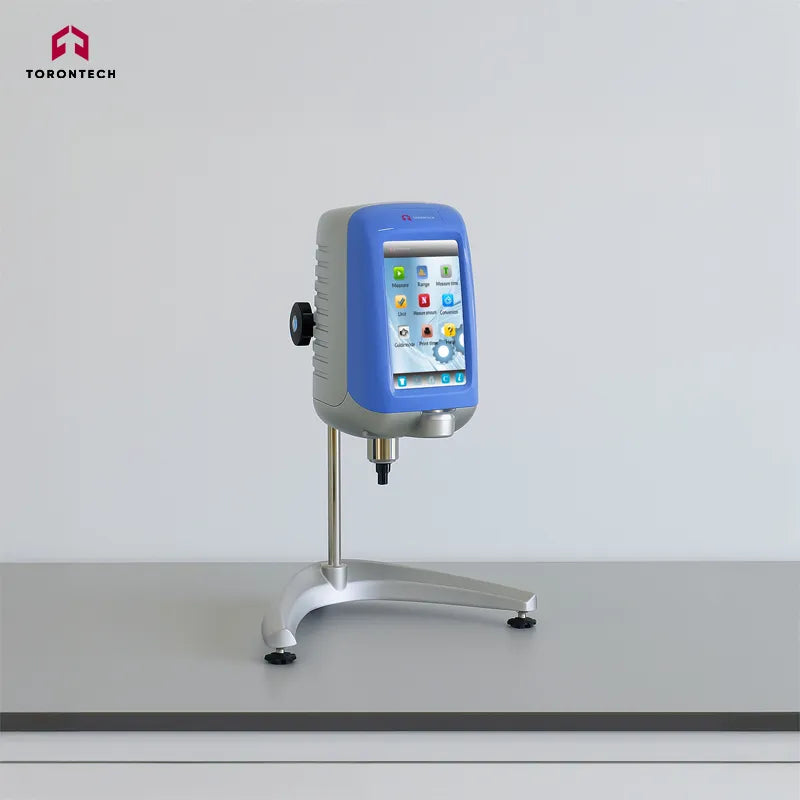

Digital Rotational Viscometers – ToronVisc™ E Series
Digital Viscometers deliver precision for a wide range of low and medium viscosity measurements. These Brookfield-style instruments feature high-performance touchscreen interfaces for real-time data display. Laboratories utilize these tools for cosmetics and pharmaceutical applications. Built-in temperature sensing supports accurate fluid evaluation.
Operators manage test parameters through automatic switching between dynamic and kinematic viscosity modes. Metal lifters provide stable positioning during routine quality control in chemical and food industries. Durable precision-engineered shafts maintain performance across various rotation speeds. Continuous displays include over-range alarms for operational safety.
Technical Advantages
-
Automated Conversion: Switches between dynamic and kinematic viscosity measurements automatically for flexible laboratory reporting.
-
Stable Positioning: Features metal lifter systems to maintain accurate spindle placement during evaluation cycles.
-
Data Visualization: Provides real-time continuous data displays with integrated over-range alarms for monitoring.
-
Universal Compatibility: Operates on power supplies from one hundred to two hundred forty volts with anti-interference designs.
Technical Specifications
|
Model |
Viscosity Range (mPa.s) |
Rotation Speeds (RPM) |
Accuracy |
|
ToronVisc™ E1 |
1 – 100,000 |
6, 12, 30, 60 |
±1.0% FSR |
|
ToronVisc™ E2 |
1 – 2,000,000 |
0.3, 0.6, 1.5, 3, 6, 12, 30, 60 |
±1.0% FSR |
|
Repeatability |
±0.2% FSR |
— |
— |
Standard Configuration
Standard configurations feature the main instrument unit and a set of LV spindles. Each package includes built-in temperature probes and power supplies with anti-interference protection. Testing protocols align with North American standards for paint and coating quality control. Computerized linear calibration maintains measurement accuracy.
