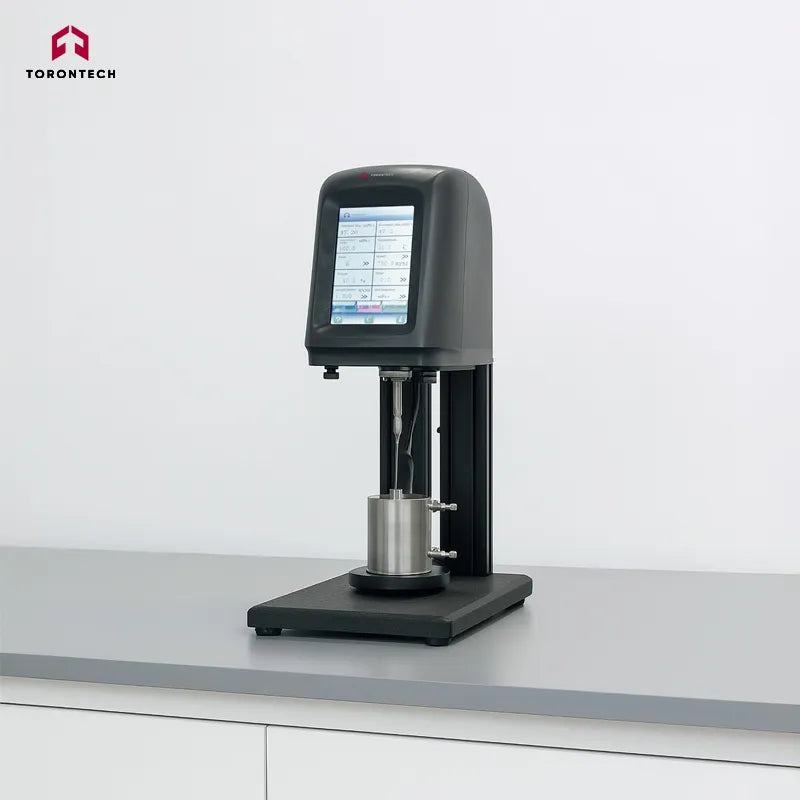

Digital Rotational Viscometer – ToronVisc™ 79 Series
The ToronVisc™ 79 Series is a high-performance digital rotational viscometer designed for precision dynamic and kinematic fluid testing. Engineered for paint, adhesive, and quality control R&D, it delivers professional-grade measurement with real-time temperature tracking within a streamlined footprint without compromising on accuracy or long-term stability.
- Wide Viscosity Coverage From 1 To 7,500,000 mPa.s
- High Precision Testing With ±1.0% Full Scale Accuracy
- Versatile Spindle Speed Operations Up To 750 RPM
- Consistent Performance Delivering ±0.5% Full Scale Repeatability
Get personalized pricing for your specific requirements
Digital Coaxial Viscometers for Low to High Viscosity Fluids
Digital Rotational Viscometer – ToronVisc™ 79 Series measure dynamic and kinematic viscosity across various fluid types. This Brookfield-style instrument provides fast results for paints and adhesives. Precision sensors track flow behavior for quality control and research environments.
Built-in RTD probes monitor temperatures to maintain measurement accuracy during rotation. Digital displays show real-time torque and spindle configurations for streamlined data management. Operators switch between multiple units for flexible reporting. Linear computer calibration maintains high repeatability over the full scale.
Technical Advantages
-
Temperature Monitoring: Features integrated RTD probes for real-time thermal tracking and automatic kinematic conversion.
-
Flexible Units: Supports rapid switching between centipoise; millipascal-seconds, and other standard viscosity units.
-
Wide Compatibility: Operates across universal power ranges with high resistance to electrical interference and noise.
-
Durable Architecture: Utilizes stable sensor and shaft designs to minimize measurement drift during long-term use.
Technical Specifications
|
Model |
Viscosity Range (mPa.s) |
Speed Range (RPM) |
Accuracy |
|
ToronVisc™ 79 |
1 — 1,000,000 |
7.5 / 75 / 750 |
±1.0% FS |
|
ToronVisc™ 79A |
1 — 1,500,000 |
7.5 – 750 |
±1.0% FS |
|
ToronVisc™ 79B |
1 — 7,500,000 |
11 – 750 |
±1.0% FS |
|
Repeatability |
±0.5% Full Scale |
— |
— |
Standard Configuration
Standard configurations include the main viscometer unit and a built-in RTD temperature probe. Each package features a set of spindles and specialized containers for diverse viscosity ranges. Integrated digital displays provide real-time data visualization. Professional analysis software is available for advanced research.
