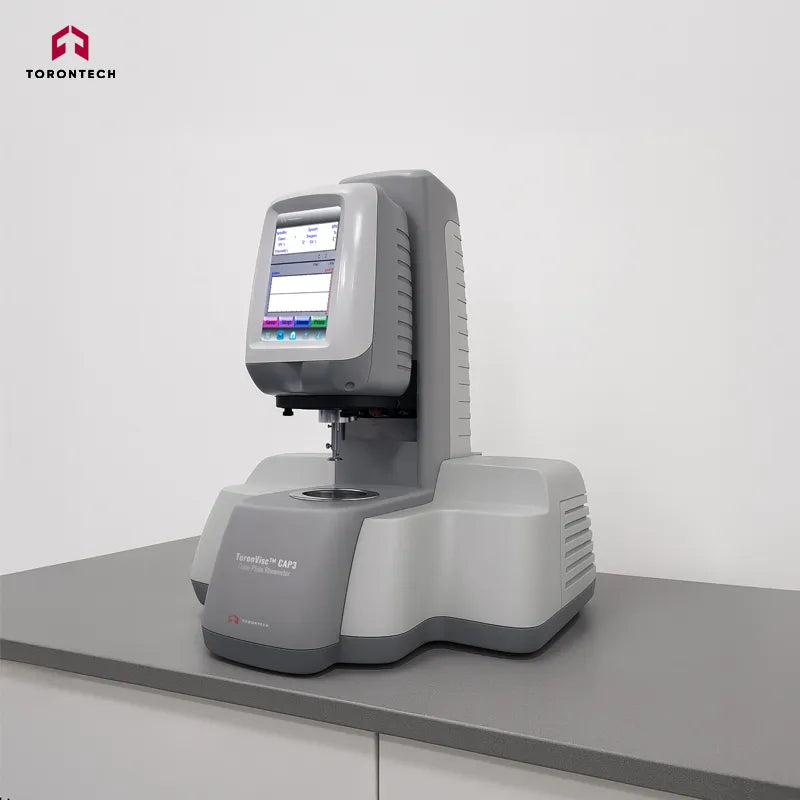

Cone & Plate Viscometer – ToronVisc™ CAP3
The ToronVisc™ CAP3 is a high-performance cone and plate viscometer designed for precision high-shear rheological testing. Engineered for polymer, emulsion, and adhesive R&D, it delivers professional-grade viscosity analysis within an automated, touchscreen-driven footprint without compromising on thermal control or data security.
- Small Sample Volume From 24 To 134 µL
- Viscosity Range From 20 To 3,000,000 mPa·s
- Thermal Precision From -5°C To 250°C
- Four Preset Speeds Up To 1,000 RPM
Get personalized pricing for your specific requirements
Cone-and-Plate Rheology Viscometer
Cone & Plate Viscometer – ToronVisc™ CAP3 performs high-precision rheological testing for complex fluids and adhesives. This instrument evaluates flow behavior across low to high viscosity ranges under controlled conditions. Accurate profiling at high shear rates supports development for polymers and emulsions. Research facilities utilize these data.
Visual touch-screen interfaces display real-time viscosity graphs for immediate analysis. Automatic spindle lifting systems provide consistent positioning during high-shear operations. Integrated temperature probes monitor thermal conditions with high precision across a broad range. Internal memory supports continuous and timed data saving.
Technical Advantages
-
High-Shear Performance: Evaluates shear rate and stress response for complex materials under controlled laboratory conditions.
-
Automated Positioning: Utilizes automatic spindle lift mechanisms to maintain consistent alignment during each test cycle.
-
Secure Calibration: Features password-protected access for temperature and viscosity settings to protect sensitive data.
-
Fast Connectivity: Supports Gigabit Ethernet and USB ports for rapid data transfer to external management systems.
Technical Specifications
|
Feature |
Value |
|
Viscosity Range |
20 – 3,000,000 mPa·s |
|
Sample Volume |
24 µL – 134 µL |
|
Temperature Range |
-5°C to 250°C (±0.1°C) |
|
Accuracy |
±2% Full Scale |
|
Speeds |
400 / 750 / 900 / 1000 RPM |
|
Spindles |
CAP-01 to CAP-10 |
Standard Configuration
Standard configurations feature the main instrument unit and a seven-inch touch display. Each package includes an automatic lifting mechanism and integrated temperature probes. Universal power supplies support global laboratory requirements for high-performance adhesives. Communication ports facilitate rapid data transfer and external analysis.
