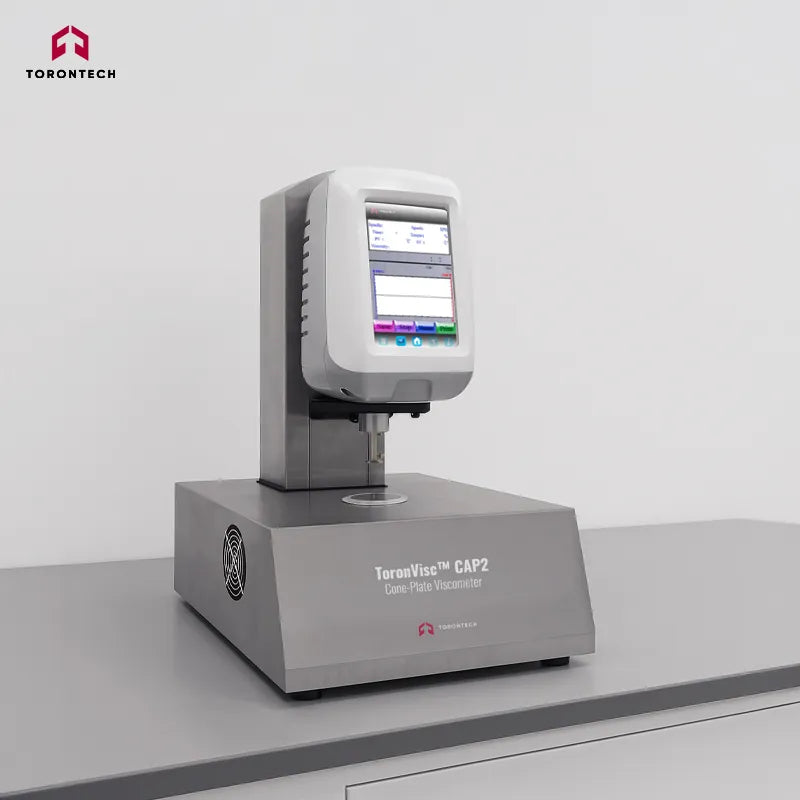

Cone and Plate Viscometer – ToronVisc™ CAP2
The ToronVisc™ CAP2 is a high-performance cone and plate viscometer designed for precision high-shear fluid analysis. Engineered for cosmetic, ink, and coating R&D, it delivers professional-grade small-volume testing within an automated, touchscreen-driven footprint without compromising on thermal control or data security.
- Ultra-Low Sample Volume From 24 To 1,700 µL
- Thermal Precision Control From -5°C To 250°C
- Configured Rotational Speeds Up To 900 RPM
- Consistent Testing With ±2% Full Scale Accuracy
Get personalized pricing for your specific requirements
Advanced Cone and Plate Viscometer
Cone and Plate Viscometer – ToronVisc™ CAP2 measures low, medium, and high viscosity samples under controlled shear conditions. This instrument utilizes cone-and-plate geometry for analyzing small-volume materials at high shear rates. Laboratories utilize these data for cosmetics, inks, and coatings.
Operators manage test parameters through a seven-inch touchscreen interface with intuitive navigation. Auto-lifting mechanisms provide consistent positioning for various CAP spindles during evaluation. Integrated temperature probes monitor thermal conditions with high precision up to two hundred fifty degrees. Real-time displays track shear stress.
Technical Advantages
-
High Shear Sensitivity: Analyzes rheological behavior of small-volume samples under demanding shear conditions.
-
Automated Positioning: Features auto-lifting mechanisms for consistent spindle alignment across multiple test cycles.
-
Thermal Precision: Monitors temperatures with zero-point-one degree accuracy to maintain measurement stability.
-
Secure Access: Includes password-protected calibration for viscosity and temperature to protect laboratory data.
Technical Specifications
|
Feature |
Value |
|
Temperature Range |
-5°C to 250°C (±0.1°C) |
|
Viscosity Accuracy |
±2% Full Scale |
|
Sample Volume |
24–1700 µL |
|
Rotational Speeds |
400 / 750 / 900 RPM |
|
Spindles |
CAP01 – CAP10 |
|
Connectivity |
Gigabit Ethernet & USB |
Standard Configuration
Standard configurations feature the main instrument unit and a seven-inch smart touchscreen display. Each package includes an auto-lifting mechanism and integrated temperature probes. Universal power inputs support global laboratory requirements for food formulations. Communication ports allow for seamless external data storage.
