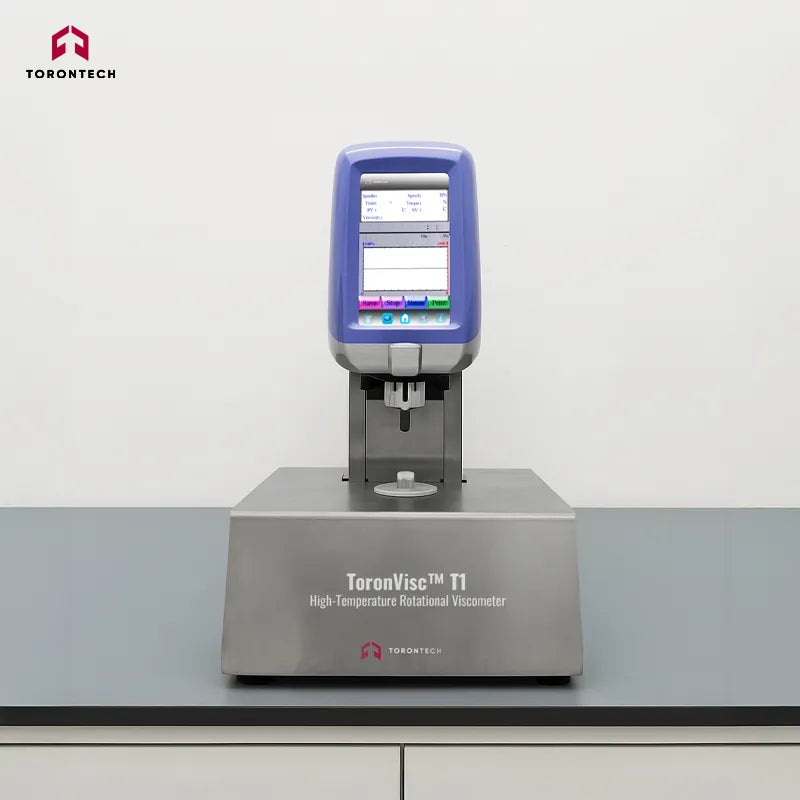

All-in-One Temperature-Controlled Viscometer – ToronVisc™ T1
The ToronVisc™ T1 is a high-performance all-in-one viscometer designed for precision temperature-controlled fluid testing. Engineered for petroleum, chemical, and food processing R&D, it delivers professional-grade viscosity analysis within an integrated, electric-lifting footprint without compromising on thermal range or data security.
- Viscosity Ranges From 5 To 26.4M mPa·s
- Integrated Thermal Regulation From -1°C To 150°C
- Adjustable Rotational Speeds From 0.3 To 100 RPM
Get personalized pricing for your specific requirements
Intelligent All-In-One Viscometer
All-in-One Temperature-Controlled Viscometer – ToronVisc™ T1performs high-precision viscosity measurements for R&D and quality control laboratories. This integrated system features built-in thermal regulation and automatic electric lifts. Precise software manages real-time rheological monitoring for petroleum and chemical applications. Integrated designs simplify complex laboratory workflows.
Operators monitor parameters through a seven-inch touchscreen with rich data visualization. Electric lifts provide spindle stability during automated test sequences. This platform allows for temperature settings from negative one to one hundred fifty degrees. Communication ports support high-speed data transfer to external computers.
Technical Advantages
-
Thermal Integration: Features a built-in heating and cooling system for precise regulation from negative one to one hundred fifty degrees.
-
Automated Positioning: Utilizes an automatic electric lift mechanism to provide spindle stability and repeatable measurement cycles.
-
Rheological Analysis: Supports real-time monitoring of shear rate and stress for comprehensive laboratory profiling.
-
Data Connectivity: Includes USB ports and Gigabit Ethernet for high-speed transfer and advanced software integration.
Technical Specifications
|
Parameter |
Specification |
|
Model |
ToronVisc™ T1 |
|
Viscosity Range |
5 – 26.4M mPa·s |
|
Temperature Range |
-1°C to 150°C |
|
Rotational Speed |
0.3–100 RPM |
|
Accuracy |
±1.0% Full Scale |
|
Repeatability |
±0.2% Full Scale |
|
Voltage |
AC 100–240V |
Standard Configuration
Standard configurations feature the main instrument unit and a seven-inch touchscreen display. Each package includes specialized SC4 spindles and an automatic electric lift system. Integrated thermal controllers manage heating and cooling for food processing. Universal power supplies maintain stable performance across varied environments.
