Advanced Touchscreen Viscometers
The ToronVisc™ P Series is a high-performance touchscreen viscometer designed for precision dynamic and rheological fluid testing. Engineered for polymer, pharmaceutical, and coating R&D, it delivers professional-grade viscosity analysis within an automated, motorized-lifting footprint without compromising on measurement range or data security.
- Wide Viscosity Coverage Up To 320,000,000 mPa·s
- Flexible Speed Controls From 0.1 To 250 RPM
- Reliable Testing Accuracy Within ±1.0% FSR
- Consistent Repeatability Of ±0.2% FSR
Get personalized pricing for your specific requirements

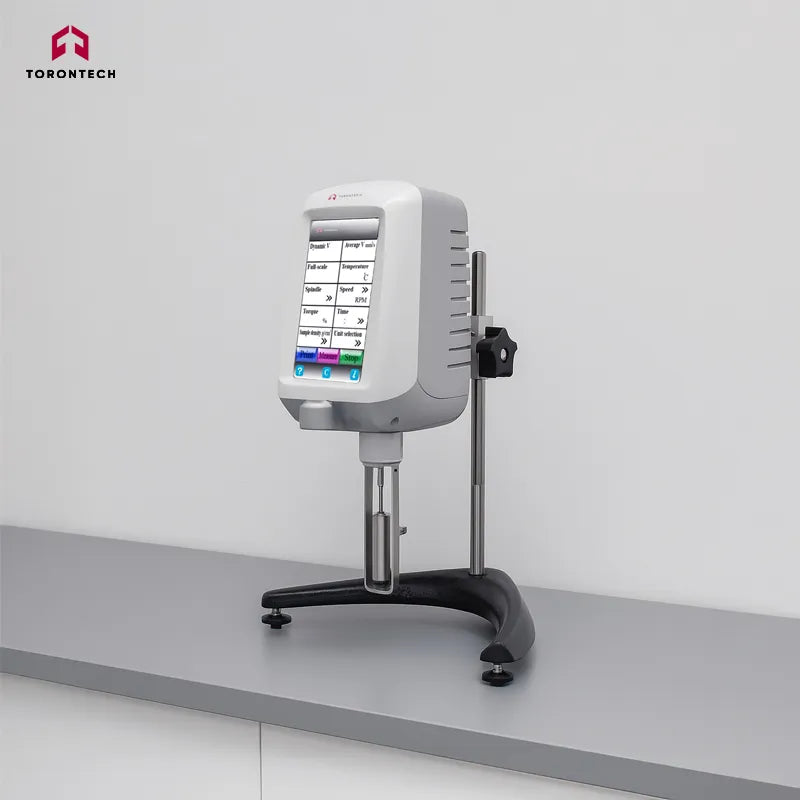

Intelligent Touch Viscometers – Toronvisc™ P Series
Advanced Touchscreen Viscometers – ToronVisc™ P Series measure the viscosity and rheological properties of low to high-viscosity fluids. These instruments provide precise data for laboratory and industrial environments. Real-time shear rate and stress displays support detailed analysis of coatings and cosmetics. Operators utilize these tools for food processing.
High-resolution touchscreens facilitate intuitive operation and real-time graphing for polymers and pharmaceuticals. Motorized metal lifters provide smooth auto-positioning during complex testing cycles. Built-in RTD probes monitor temperature accuracy to support sample control. Advanced shaft designs maintain long-term stability during high-speed rotation.
Technical Advantages
-
Rheological Analysis: Displays shear rate and stress for comprehensive behavior evaluation of adhesives and resins.
-
Advanced Connectivity: Utilizes Gigabit Ethernet ports for high-speed data transfer to external management systems.
-
Secure Calibration: Features password-protected access for temperature and viscosity settings to maintain data integrity.
-
Flexible Storage: Supports multiple modes including single point, continuous, and timed data logging sessions.
Technical Specifications
|
Specification |
ToronVisc™-P2 |
ToronVisc™-P3 |
|
Viscosity Range |
1 – 104M mPa·s |
1 – 320M mPa·s |
|
Rotation Speed |
0.3 – 100 RPM |
0.1 – 250 RPM |
|
Accuracy |
±1.0% FSR |
±1.0% FSR |
|
Repeatability |
±0.2% FSR |
±0.2% FSR |
|
Power Supply |
100V–240V |
100V–240V |
Standard Configuration
Standard configurations feature the main instrument unit and a high-resolution touchscreen. Each package includes a motorized metal lifter and integrated RTD probes. Universal power supplies maintain anti-interference performance for operational consistency. Testing protocols support various spindle options for low and high viscosity.
