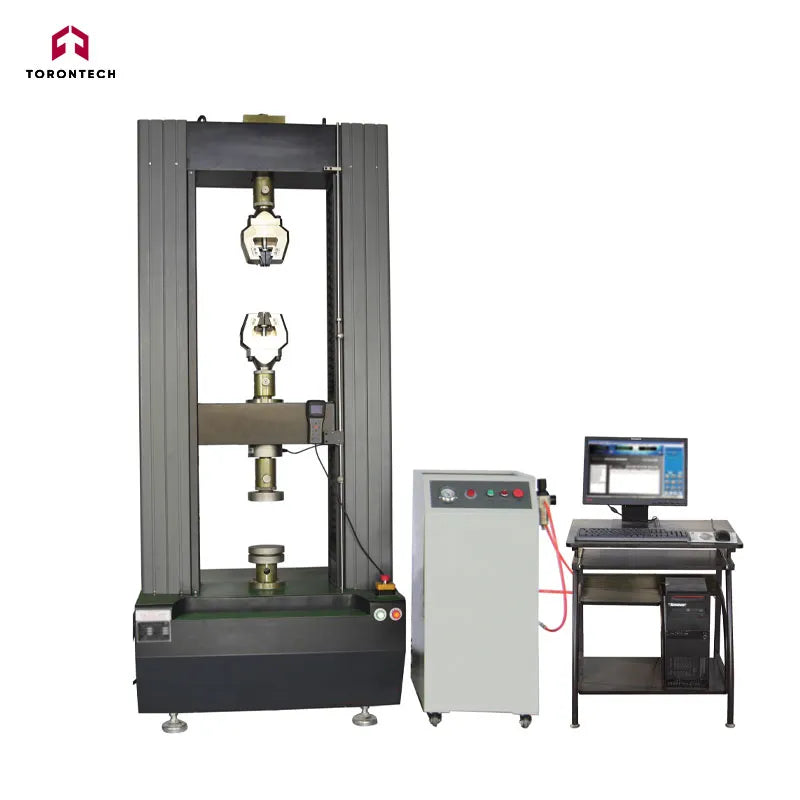

300kN UTM - Universal Testing Machine TTM-300
The 300kN UTM - Universal Testing Machine TTM-300 is a high-capacity universal testing machine designed for precise analysis of the static mechanical properties of metal, non-metal, and composite materials. With a maximum testing capacity of 300 kN, the TTM-300 supports a wide range of mechanical tests, including tensile, compression, bending, shearing, peeling, tearing, loading, relaxation, and reciprocating tests.
The advanced testing system automatically calculates important mechanical parameters, including ReH, ReL, Rp0.2, Fm, Rt0.5, Rt0.6, Rt0.65, Rt0.7, Rm, and E, helping users obtain accurate and consistent test results. The 300kN Universal Testing Machine is suitable for material research, quality control, mechanical performance evaluation, and laboratory testing.
The TTM-300 can generate comprehensive test data in accordance with ISO, ASTM, and DIN standards, making it suitable for a broad range of industrial, research, and quality-testing applications.
Applications
-
Calibration of Load Measurement Instruments
Calibration of load measurement instruments used with uniaxial testing machines. -
Force Measurement System Verification
Verification and calibration of force-measuring systems for tension and compression testing machines. -
Tensile Testing of Metallic Materials
Tensile testing of metallic materials under room-temperature conditions. -
Testing of Steel Fasteners
Evaluation of the mechanical properties of carbon steel and alloy steel fasteners, including bolts, screws, and studs. -
Bend Testing of Metallic Materials
Bending tests for evaluating the mechanical performance and deformation behavior of metallic materials. -
Reinforcing Steel Testing
Tensile and mechanical testing of steel used for concrete reinforcement, including ribbed bars. -
Metallic Material Tension Testing
Tension testing of metallic materials for mechanical property evaluation. -
Steel Product Mechanical Testing
Mechanical testing of steel products to assess their strength and performance characteristics. -
Compression Testing of Metallic Materials
Compression testing of metallic materials under room-temperature conditions.
Mechanical Framework and Design
The 300kN UTM - Universal Testing Machine TTM-300 features a robust portal-type mechanical structure designed for stability, rigidity, and precise material testing. The main frame consists of a sturdy base, two fixed beams, a movable crosshead, four columns, and two precision screws. This rigid framework provides dependable support during tensile, compression, bending, and other mechanical tests.
The transmission and loading system is powered by an AC servo motor combined with a synchronous cog belt speed reducer. The drive system operates a high-precision ball screw, enabling smooth and controlled crosshead movement for accurate loading and reliable test results.
Key Features
-
Streamlined Structural Design
A sleek mechanical design provides excellent structural stability and dependable operation during demanding testing applications. -
High Structural Rigidity
The rigid frame helps maintain stability under load, supporting accurate and repeatable mechanical testing. -
Precise Motion Control
The AC servo motor and precision ball screw system provide accurate crosshead positioning and efficient test operation. -
Low-Noise, Energy-Efficient Operation
The optimized drive system supports smooth movement with reduced operating noise and efficient energy use. -
Environmentally Responsible Construction
The machine is designed with efficient operation and practical construction considerations for modern laboratory and industrial testing environments.
| Mark |
A |
B |
C |
D |
E |
F |
G |
H |
I |
|---|---|---|---|---|---|---|---|---|---|
| Value (mm) | 2430 | 1032 | 898 | 447.5 | 600 | 470 | 545 | 1481 | 250 |
Control and Measurement System
The 300kN UTM - Universal Testing Machine TTM-300 is equipped with the DSC-10TT full-digital closed-loop control system, providing precise control, measurement, and monitoring throughout the testing process. The computer-controlled system manages test operations while displaying testing curves and processing measurement data in real time.
The advanced control platform enables efficient analysis of test results through an intuitive graphical processing module. After testing, users can enlarge testing curves, perform data reanalysis, and edit test data for detailed evaluation and reporting.
Key Control Features
-
Full-Digital Closed-Loop Control
The DSC-10TT system provides precise control of testing parameters and machine movement for consistent test performance. -
Real-Time Data Monitoring
Testing curves and measurement data are displayed dynamically on the computer, allowing users to monitor the test process as it occurs. -
Graphical Data Processing
The software provides graphical tools for curve enlargement, data analysis, reanalysis, and editing after test completion. -
Efficient Test Management
Computer-based operation simplifies test setup, monitoring, data processing, and result evaluation. -
Accurate Measurement and Analysis
The control and measurement system supports reliable mechanical testing with performance designed to meet advanced international testing requirements.
Advanced Control and Measurement Features
The 300kN UTM - Universal Testing Machine TTM-300 incorporates the DSC-10TT full-digital closed-loop control system for precise testing, measurement, data acquisition, and machine control. Its advanced hardware and software architecture supports accurate real-time monitoring, efficient data processing, and reliable operation across a wide range of mechanical testing applications.
1. Advanced Closed-Loop Control
-
Provides precise displacement, deformation, and testing speed control.
-
Enables real-time adjustment of testing speeds and test methods for flexible testing procedures.
-
Supports accurate machine movement and testing parameter management throughout the test cycle.
2. Comprehensive Multi-Layer Protection
-
Integrates both hardware and software protection mechanisms for enhanced operational safety.
-
Provides protection against overload, overcurrent, overpressure, undervoltage, overspeed, and position-limit conditions.
-
Helps protect the testing machine, control system, and test specimen during operation.
3. High-Resolution Data Processing
-
Uses three high-speed 24-bit A/D switching channels with a resolution of up to ±1/300,000.
-
Provides high-resolution measurement for accurate load and deformation data acquisition.
-
Maintains consistent measurement precision throughout the testing process.
4. Reliable Data Transmission
-
Supports USB and serial communication interfaces for stable data transmission.
-
Provides reliable communication with reduced susceptibility to electrical interference.
-
Facilitates efficient transfer of testing data between the control system and computer.
5. Enhanced Signal Capture
-
Includes three pulse signal capture channels, with one channel for displacement and two channels for deformation.
-
Uses advanced quadruple-frequency technology to improve pulse signal accuracy.
-
Supports a maximum pulse capture frequency of 5 MHz for high-speed signal processing.
6. Precision Servo Motor Control
-
Uses a digitally driven servo motor control system for precise machine operation.
-
Supports a PWM output frequency range from 0.01 Hz to 5 MHz.
-
Provides accurate control of testing speed, movement, and loading conditions.
Key Benefits of the DSC-10TT Control and Measurement System
1. Advanced Testing Machine Control Technology
The DSC-10TT control system is designed specifically for universal testing machines and incorporates advanced servo motor control chips with a multi-channel data acquisition module. The system provides high-speed sampling, precise control, stable operation, and reliable test data processing.
Its hardware-based architecture helps improve system stability and operational consistency, making it suitable for demanding material testing and laboratory applications.
2. High-Efficiency Professional Control Platform
The DSC-10TT system combines a DSP (Digital Signal Processor) with an MCU (Microcontroller Unit) to provide high-speed computing and efficient input/output control. This architecture delivers enhanced processing performance compared with systems based solely on DSP or 32-bit microcontrollers.
Integrated motor-control functions, including PWM (Pulse Width Modulation) and QEI (Quadrature Encoder Interface), support accurate and stable control of the testing machine.
3. Parallel Sampling for Real-Time Measurement Accuracy
A dedicated ASIC (Application-Specific Integrated Circuit) enables synchronous sampling of load cell signals. This parallel sampling architecture helps reduce asynchronous loading and deformation errors associated with conventional measurement systems.
The hardware-based parallel sampling design provides accurate synchronization of measurement signals for reliable real-time test analysis.
4. Position Pulse Signal Filtering for Improved Stability
The optical encoder module incorporates a 24-level hardware filtering system to refine pulse signal acquisition. This filtering technology helps reduce counting errors caused by electrical interference and other signal disturbances.
The result is improved position measurement accuracy and stable operation of the pulse capture system.
5. Optimized Low-Level Control for Fast Response
The dedicated ASIC chip handles peripheral operations such as signal sampling and condition monitoring through hardware-based processing. This allows the DSC-10TT system to focus on high-speed PID (Proportional-Integral-Derivative) calculations.
The optimized architecture improves system response and supports real-time closed-loop control for precise testing performance.
Performance Characteristics of the DSC-10TT System
The DSC-10TT software platform is designed for Windows operating systems and provides real-time testing curve display, data processing, and graphical analysis. Its modular software architecture provides an intuitive operating environment for universal testing machine applications.
Test data storage and processing are supported through an MS-ACCESS database, providing organized data management and convenient record retrieval. The software also integrates with Microsoft Office, allowing test data to be exported and reports to be prepared efficiently.
User Authority and Testing Management
The system provides a multi-level user authority management function, allowing access to specific software features according to individual login permissions. The super administrator can manage user accounts and assign different operational modules based on user requirements.
The testing management system allows users to:
-
Define testing units and measurement settings.
-
Create test programs according to applicable standards.
-
Configure testing procedures and parameters.
-
Manage test records and sample information.
-
Generate testing reports according to specified requirements.
-
Monitor testing processes, equipment status, and program control steps in real time.
-
Manage extensometer switching during applicable tests.
Advanced Testing Curve Analysis
The software provides real-time visualization and analysis of multiple testing curves, including:
-
Load-deformation curves
-
Load-time curves
-
Other configurable testing curves
Users can compare multiple sample curves simultaneously and use different display colors to distinguish individual test results. Curve zooming allows users to examine specific sections of the test data in greater detail.
The system supports both automatic and manual feature-point selection. Selected feature points can be labeled and included in generated test reports for clearer presentation of important test characteristics.
Automatic Data Storage and Retrieval
To reduce the risk of data loss caused by unexpected interruptions, the software automatically saves testing data during operation. A fuzzy-search function allows users to locate stored records quickly using relevant search terms.
The system can also combine and analyze data from different test programs and batches, supporting efficient organization, comparison, and evaluation of material test records.
Microsoft Office Integration and Report Generation
Based on an MS-ACCESS database, the DSC-10TT software integrates with Microsoft Office applications and allows test reports to be saved in Microsoft Word and Excel formats.
The system also supports direct database access for raw data analysis, providing useful capabilities for material research and detailed test-data evaluation.
Automatic result calculation can determine key mechanical testing parameters, including ReH, ReL, Rp0.2, Fm, Rt0.5, Rt0.6, Rt0.65, Rt0.7, Rm, and E. Users can configure parameter settings according to testing requirements and generate reports containing both numerical results and graphical data.
Automatic Extensometer Management
The software includes an automatic extensometer switching function. After yield detection, the system can notify the operator when extensometer removal is required, helping simplify the testing workflow.
Following completion of a test, the movable crosshead can automatically return to its initial position, improving operational efficiency and reducing manual intervention.
Automatic Calibration and Measurement Functions
The DSC-10TT system supports automatic calibration of load and elongation measurements based on standard reference values. This helps maintain measurement accuracy and simplifies calibration procedures.
The system also supports a full-range, classification-free measurement mode, allowing convenient module unit exchange and modular hardware expansion.
During testing, the software automatically adjusts the displayed curve according to the applied test force and measured deformation. This provides clear real-time visualization of testing behavior and supports accurate analysis throughout the test process.
|
Measurement Parameters |
|
|---|---|
| Maximum test force | 300kN / 67442.7 lb.f (can add load cells to extend the force range) |
| Accuracy class | 0.5 |
| Measuring range of test force | 0.2%~100%FS (full scale) |
| Indicating error of test force | Within ±0.5% of indicating value |
| Resolution of test force | ±1/300000 of maximum test force, grade unchanged and resolution unchanged in whole process |
| Measuring range of deformation | 0.2%~100%FS |
| Indicating error of deformation | Within ±0.5% of indicating value |
| Resolution of deformation | 1/300000 of maximum deformation |
| Indicating error of displacement | Within ±0.5% of indicating value |
| Resolution of displacement | 0.025µm |
|
Control Parameters |
|
| Adjustable range of force control rate | 0.005~5%FS/s |
| Control accuracy of force control rate | When rate is less than 0.05%FS/s, within ±2% of setting value; When rate is no less than 0.05%FS/s, within ±0.5% of setting value. |
| Adjustable range of deformation rate | 0.005~5%FS/s |
| Control accuracy of deformation rate | When rate is less than 0.05%FS/s, within ±2% of setting value; When rate is no less than 0.05%FS/s, within ±0.5% of setting value. |
| Adjustable range of displacement rate | 0.001~500mm/min |
| Control accuracy of displacement rate | When rate < 0.5mm/min, within ±1% of setting value; When rate ≥ 0.5mm/min, within ±0.2% of setting value |
|
Other Parameters |
|
| Effective testing width | 600mm |
| Effective distance of tension | 420mm (including wedge tensile fixture and can be custom-made according to user's requirements) |
| Removable distance of crosshead | 1000mm |
| Size of Main Unit (length x width x height) | (1070×920×2550) mm |
| Weight of Main Unit | 1500Kg |
| Voltage | 380V, 50Hz, 5kW |
Configuration
1. Main Frame: 300kN Door Structure
The 300kN UTM - Universal Testing Machine TTM-300 features a robust door-type main frame designed to provide stability and rigidity during high-capacity mechanical testing.
-
Machine Frame: TTM series frame – 1 set
-
Ball Screws: High-precision, zero-clearance screws – 2 pieces
2. Control and Measurement System
The TTM-300 is equipped with a precision control and measurement system designed for accurate load, displacement, and deformation measurement throughout the testing process.
-
Servo Motor and Speed Control System – 1 set
-
Synchronous Belt – 1 set
-
Load Cell: 300 kN capacity – 1 piece
-
Electronic Extensometer:
-
Gauge length: 50 mm
-
Deformation range: 10 mm
-
-
DSC-10TT Full-Digital Closed-Loop Measurement and Control System – 1 set
-
Load measurement system
-
Displacement measurement system
-
Deformation measurement system
-
-
DSC-10TT English Software
-
Remote Control Unit – 1 piece
-
LCD screen for real-time display of machine status, testing force, and displacement
-
Magnetic base for flexible positioning on the machine frame
-
-
Lenovo PC – 1 piece
-
HP Color Inkjet Printer, A4 Size – 1 piece
3. Manual Grips – Customizable to Customer Requirements
The 300kN Universal Testing Machine can be configured with manual grips based on specific testing requirements and specimen dimensions.
Wedge Tensile Grips
-
Flat Jaws:
-
0–10 mm
-
10–20 mm
-
20–30 mm
-
1 set per size
-
-
V-Type Jaws:
-
Ø8–Ø16 mm
-
Ø16–Ø26 mm
-
Ø26–Ø36 mm
-
1 set per size
-
Compression Plates
-
Plate Diameter: Ø150 mm – 1 set
Remote Control Unit
Important Delivery Information
Delivery time varies upon stock availability. Our standard dispatch and shipping times are generally within 1 week, however for some high demand items the delivery may be extended to 2-3 weeks.
Need it urgently? Contact us here to check stock and organize faster shipping.
Orders:
Purchaser acknowledges that when placing an order on the Torontech:
A. the placing of the order signifies the purchaser's assent to place said order at the Torontech and that the order will be accepted by the successful processing of the order by Torontech WorldWide LC.
B. the purchaser typing their name when requested to do so by the Torontech constitutes a signature to contract
C. the purchaser has the full authority to enter into the contract for such entity, and such grant of authority was indicated by purchaser by placement of the order through the Torontech.
D. A minimum handling fee will be applied to the shipping total for all orders.
Shipping within the U.S.A.:
All orders will be shipped best way prepaid, via courier for smaller packages or via Freight forwarders for larger crates. A handling fee may be applicable to orders. Title to merchandise transfers to the purchaser upon delivery to the carrier. Loss or damage in transit is the responsibility of the purchaser. Torontech WorldWide will provide assistance with information needed for processing claims.
Shipping outside of the U.S.A.:
All orders will be shipped best way, via courier for smaller packages or via Freight forwarders for larger crates. A low handling fee may be applicable. Title to merchandise transfers to the purchaser upon delivery to the carrier. Loss or damage in transit is the responsibility of the purchaser. Torontech WorldWide will provide assistance with information needed for processing claims. Export fees, duties, taxes, and customs clearance are the responsibility of the purchaser.
Shipping insurance is not included, please contact our sales representatives if you need shipping insurance.
Partial shipment: Torontech WorldWide reserves the right to make partial shipments unless otherwise instructed by the purchaser.
Payment terms: All payments to Torontech WorldWide are to be made in U.S. Dollars (USD)
A. Credit Card - Torontech WorldWide will accept Visa, Master Card, AMEX or Discover. Required information from the purchaser is the credit card number, 3 digit security code, expiration date, card holder's name (exactly as it appears on the card), billing address, and valid telephone number for us to use in case of difficulty. Torontech WorldWide reserves the right to delay shipment pending verification of credit card validity.
B. Wire Transfer - Transfer must be made to Torontech and confirmed for the full purchase amount (merchandise, handling and shipping) prior to shipment. Please contact us by phone at 1.877.884.TEST (8378)(outside U.S. +1.905.944.9825) or by fax at +1.954.697.8211 for bank information.
C. Open Account - Available to U.S.A. and Canadian customers only. Terms on open accounts are Net 30 days from date of shipment. Torontech WorldWide reserves the right to refuse shipment of new orders if any unpaid invoices are older than 30 days. Purchasers may apply for an open account by providing:
their bank information
3 credit references from other suppliers
Please allow 5 business days for confirmation of credit and creation of an open account.
Return Policy:
Torontech WorldWide may accept return of purchased merchandise within North America for refund or credit under the following conditions -
- There may be an additional restocking fee charged to the transaction if items are already shipped to customer.
- Goods must be returned to Torontech WorldWide within 5 days of the date of the receipt of the purchased goods.
- All freight, duties, customs, and other related shipping charges for the returned merchandise are borne by the purchaser. Shipments made freight collect will be refused.
- Merchandise must be returned properly packaged in brand new, salable condition, along with original packaging and all documentation, accessories and certificates.
- Purchaser has confirmed return authorization directly with Torontech.
- Merchandise is regular catalog item. Special order items can not be returned.
- All returned merchandise is subject to inspection by Torontech. Torontech reserves the right to refuse return of any merchandise that is used, damaged, or not part of the current published price list. In the case Torontech does not accept the returned merchandise, reasonable attempts will be made to notify the Buyer and the merchandise will be returned to Buyer as they were received by Torontech. Damaged merchandise that can be restored to original condition and thus accepted for return will be evaluated on an individual basis. The purchaser will be advised of additional expenses for the repair and restoration of the returned item. After approval, these expenses will be charged to the purchaser in addition to the restocking fee.
Change of Terms:
The acceptance of any order by Torontech WorldWide is subject to purchaser's assent to all of the terms and conditions set forth herein. Purchaser's assent to these terms and conditions shall be presumed from the purchaser's placement of an order through the Torontech. Any and all other terms and conditions are expressly rejected, and no addition or modification of terms and conditions shall be binding without the prior agreement of Torontech WorldWide in writing.
Complete Agreement:
The terms and conditions in the Torontech web site, incorporated herein by reference, including forms, acknowledgements, quotations, invoices and sales terms and conditions constitute the entire and exclusive agreement between the purchaser and Torontech WorldWide
Information:
Torontech Inc makes every effort to insure the accuracy of the product information displayed on its web sites, but makes no warranties, expressed or implied, as to the accuracy of the data portrayed on the web sites. Torontech Inc reserves the right to change product information, including pricing information at any time without notice.
Trademarks and Copyrights:
The WorldofTest.com Torontech contains trademarked product names. Product names are not to be reproduced or used in any fashion by any party other than Torontech without the express written consent of Torontech International Inc.. All pictures, descriptions, and other content of this web site are copyrighted by Torontech Inc and may not be used without the express written permission of Torontech Inc. Purchaser acknowledges that they have no right, title, or interest in the trademarks or copyrights in the products, and purchaser covenants that it will take no action to register or otherwise interfere with such rights. Please contact us with any requests for permission or questions about our trademarks.
Warranty Disclaimer:
No warranty or affirmation of fact, express or implied, other than expressly set forth herein is made or authorized by Torontech Inc. Torontech Inc disclaims any and all liability for product defect claims. Torontech Inc does not express or imply a warranty that any product on the web site(s) is fit for a particular purpose. Torontech Inc honors the product warranty as published and made available by Torontech Inc. Warranty claims for products not manufactured by Torontech are the responsibility of the manufacturer. Torontech Inc will always make its best good faith effort to resolve warranty claims.
Force Majeure:
Torontech Inc shall not be liable for any delay in or impairment of performance resulting in whole or in part from Acts of God, service interruptions, labor disruptions, insurrections, governmental decrees or controls, war risks, severe weather, supplies or raw materials, inability to procure or ship products, inability to obtain permits and/or licenses, or any other circumstances or causes beyond the control of Torontech Inc in the conduct of its business.
Torontech Inc Privacy Policy
I. What legal provisions govern our data processing practices? How and from where (internal/external sources) is personal data acquired? What are the rights of the user (web site visitor/registered customer)?
1. General
As a general principle, no personal details need to be provided when visiting our Internet site. Data made available to us by you is treated in strict confidence and in accordance with the provisions of the Federal Data Protection Act. With a few exceptions (see point 2 below), our web server only registers non-personal (anonymous) data concerning the use of our site. Specifically, the log files of our web server, as a general rule, only contain the user's IP address, the last page visited by the user, the browser used, date, time and the file requested. This anonymous data, however, does not permit conclusions to be drawn about the individual users, and merely serves to prepare statistics on the use of our Internet site for the purpose of its improvement. At the same time, great importance is placed on ensuring that usage data is not linked with personal data.
2. Personal data
Person-related data (personal data) is only used if the newsletter is ordered (by email), product(s) is (are) ordered, or to supply product information. We undertake to use the personal data entrusted to us only for the purposes stated. Purchase history is retained for assistance with future customer needs.
II. What security measures are used to protect personal data? What are the user's options for processing personal data?
3. Technical measures
Databases are optimally protected against third party access, loss, misuse and falsification through the use of appropriate technical means. In order to determine the popularity of individual topic areas, cookies are used in those sections. These text files are stored on your hard disk and facilitate your use of our Internet site. Thanks to these cookies, there is no need for specific registration each time you visit a section requiring registration, and we can supply you with the personalized contents you request.
It is for you to decide whether you want to work with cookies and, if so, which kind (permanently stored on the hard disk or only placed for the time of the browser activity). However, we draw your attention to the fact that access to fields requiring registration is only possible with activated cookies.
III. What data is communicated to third parties and for what purposes?
4. Communication of personal data
Personal data entrusted to us by you is not communicated, leased or sold to third parties.
IV. Which department answers questions about the processing of personal data?
5. Contact
In the light of the rapid technical developments in connection with the Internet, we make every effort to constantly improve our Internet site and technical precautions, including those connected with data protection. We will keep you suitably informed about such measures. Any changes will be published here. Further information is available at any time by contacting Torontech Inc.
Disclaimer of liability Torontech Inc shall not be liable for direct, indirect or consequential losses resulting from or in connection with access to, use of or queries to the Torontech web site or its links with other web sites, even if Torontech Inc has previously been informed of the possibility of such losses. No guarantee is provided as to the accuracy of the information disseminated via the Torontech Inc web site. In addition, Torontech Inc guarantees neither the reliability nor the completeness of the information contained on its web site. The information made available on the Torontech and WorldofTest.com web site may be amended at any time without prior notice. In particular, Torontech Inc shall not be liable for losses caused by transmission errors, technical faults and interruptions, breakdowns or an unlawful interference with the user's data processing system or the generally accessible systems and transmission networks. Nor shall Torontech Inc be liable for losses resulting from breakdowns, interruptions or overloads occurring to any data processing systems. If certain links are activated on the Torontech and WorldofTest.com web site, the user may under certain circumstances leave the Torontech web site. Torontech Inc assumes no responsibility for the contents, products or services offered or other information or offers contained on these linked web sites.
