Evaluating mechanical safety requires rated burst pressure testing to determine how a balloon catheter performs under defined pressure conditions. Medical device manufacturers perform these high-precision checks to validate structural integrity, verify design limits, and satisfy regulatory expectations. This technical guide explains the physical principles of balloon burst evaluation, compares static and rated pressure methods, and details the parameters necessary to control during routine quality control testing.
Selecting an appropriate catheter burst pressure tester provides the foundation for repeatable testing. Precise pressure control and accurate sensor tracking allow technical teams to evaluate catheter burst pressure with high reliability. This guide assists validation engineers and laboratory technicians in establishing compliant, technically rigorous testing workflows.
What Is Rated Burst Pressure Testing?
This specialized evaluation measures the physical limits of balloon dilatation catheters under positive hydraulic load. Implementing standard rated burst pressure testing protocols allows engineering teams to calculate the exact threshold where 99.9% of balloons survive with a 95% confidence level. This statistical determination represents the rated limit of the device.
Operating within this framework requires distinguishing between nominal pressure, rated burst pressure, and ultimate failure thresholds. Nominal pressure represents the inflation level needed to achieve the target balloon diameter in clinical use. The rated burst limit represents the maximum pressure at which the manufacturer guarantees the balloon will not rupture. Ultimately, the test confirms that physical device failure occurs safely above this claimed rating.
Rated Burst Pressure vs Static Burst Pressure
Pharmaceutical and medical device laboratories must distinguish between closely related pressure evaluations to maintain correct method documentation. While these tests utilize similar positive pressure equipment, they target different operational endpoints.
The table below compares the primary testing formats used to characterize intravascular balloon dilatation devices.
|
Test Type |
What It Evaluates |
What to Verify |
|
Rated Burst Pressure |
The statistical pressure threshold at which a high percentage of balloons will survive without fracturing. |
Verify the statistical calculation method and the confidence intervals specified in the test plan. |
|
Static Burst Pressure |
The ultimate mechanical failure point of the balloon material under a continuous, progressive pressure ramp. |
Confirm the pressure ramp rate, fluid temperature, and the specific failure mode of the sample. |
|
Balloon Fatigue Resistance |
The ability of the balloon to withstand repeated inflation and deflation cycles to a target pressure. |
Check the programmed hold time, cycle counts, and the stability of the pressure controller. |
|
Balloon Deflation Time |
The speed at which the fluid medium evacuates the balloon after inflation to nominal pressure. |
Verify the catheter shaft lumen dimensions, fluid viscosity, and vacuum performance of the tester. |
|
Diameter-to-Pressure |
The dimensional compliance curve of the balloon across a defined sequence of inflation steps. |
Confirm the accuracy of the external dimensional measurement tools or optical sensor setup. |
Understanding the difference between rated burst pressure and static pressure is necessary to prevent validation errors. Performing standard RBP testing focuses on validating product claims, whereas static evaluations identify the absolute material limit. Failing to differentiate these elements in RBP testing can lead to incorrect specification settings.
How Balloon Catheter Burst Pressure Testing Works

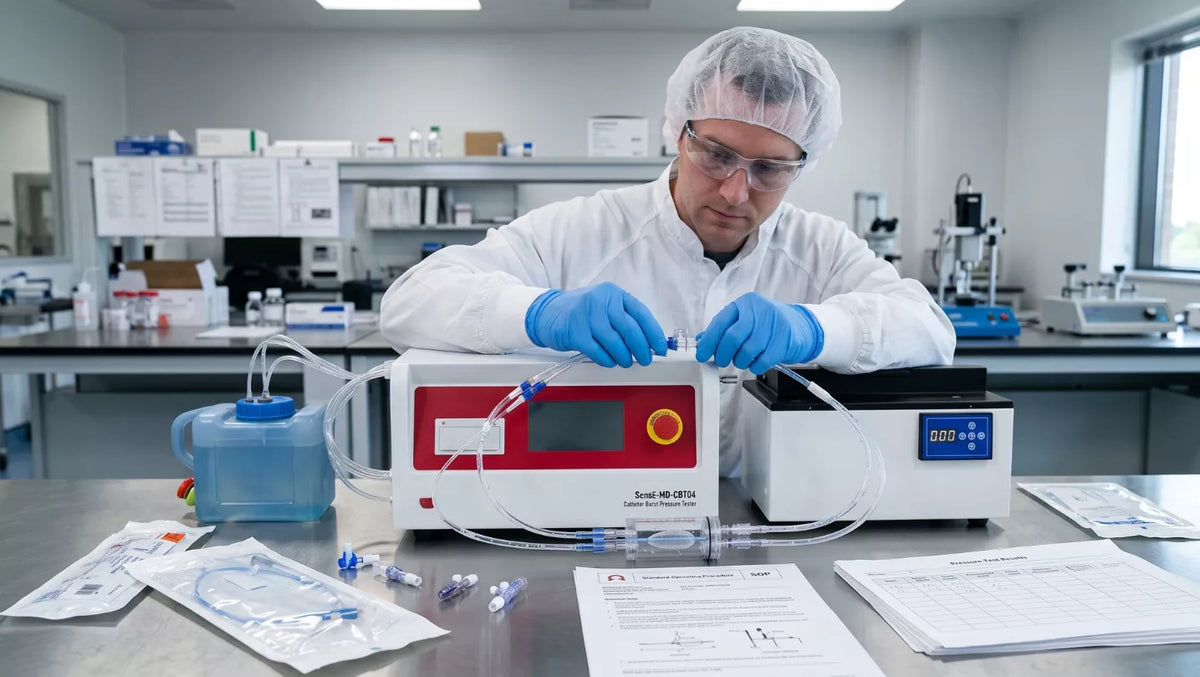

Executing a standard test requires connecting the device fluid path to a calibrated, high-pressure liquid delivery system. The operator mounts the distal portion of the catheter within a temperature-controlled water bath to simulate physiological conditions.
During rated burst pressure testing, the system monitors the internal volume under controlled ramp conditions. The pressure controller increases hydraulic force at a linear rate, preventing sudden pressure spikes from causing premature material failure. Software integration tracks the pressure curve continuously, identifying the exact millisecond a drop occurs. The system logs this peak value as the ultimate balloon catheter burst pressure for that specific sample.
Key Test Parameters to Control
Repeatable testing depends on controlling environmental and mechanical variables. Small variations in fluid temperature or connection setup can distort the registered burst values, yielding invalid quality data.
The table below organizes the primary parameters that technical teams must control to secure consistent test results.
|
Test Parameter |
Why It Matters |
Documentation Needed |
|
Sample Identification |
Secures traceability to specific manufacturing batches and raw material formulations. |
Record the lot number, shaft diameter, balloon length, and polymer material class. |
|
Balloon Size |
Dictates the physical volume and surface area subjected to internal hoop stress. |
Document the nominal and maximum rated balloon diameters from the design specification. |
|
Pressure Medium |
Water or specialized saline solutions behave differently under high shear and temperature. |
Record the specific fluid type, filtration level, and chemical purity. |
|
Ramp Rate |
Fast ramp rates can cause artificial material shock, lowering the apparent burst threshold. |
Document the programmed pressure increase rate (e.g., psi per second) used during the run. |
|
Target Pressure |
Establishes the pass/fail boundary for rated burst and cycle holding evaluations. |
Record the specified rated burst limit and nominal clinical inflation values. |
|
Temperature |
Polymer materials soften at body temperature, significantly lowering their burst resistance. |
Track the water bath temperature continuously, maintaining a stable baseline. |
|
Fixture Setup |
Leaking connectors mimic balloon failure, preventing the system from reaching peak pressure. |
Document the Luer adapter type, sealing torque, and fixture mounting method. |
|
Sensor Calibration |
Accurate data depends on a pressure sensor that operates with traceably verified linearity. |
Record the sensor serial number, calibration status, and verified resolution limits. |
|
Failure Mode |
Classifying the rupture type helps engineers diagnose specific weld or material weaknesses. |
Document whether the balloon failed via longitudinal tear, pinhole leak, or neck rupture. |
ISO 10555-4 and Balloon Catheter Testing Context
Navigating international regulatory requirements requires checking the guidelines in ISO 10555-4. This specific section of the standard defines physical requirements for balloon dilatation catheters, mandating physical evaluations to verify rated burst behavior.
Performing ISO 10555 catheter testing helps manufacturers verify that balloon designs tolerate typical inflation stresses. The standard outlines that testing should replicate clinical use as closely as possible, including pre-conditioning the samples at body temperature. Quality assurance managers must verify that their testing systems maintain stable water bath temperatures and linear pressure ramps to satisfy these regulatory expectations.
Internal product specifications may define tighter tolerances than the minimum values specified in ISO 10555-4. Validation teams must align their test parameters with the specific physical properties of their active formulations.
Static Burst Pressure Testing and Failure Observation
Executing a static burst pressure test reveals how the balloon material behaves up to its physical limit. The pressure controller continues applying hydraulic force until a physical rupture, tear, or leak occurs, halting the pressure ramp automatically.
Technical analysts must carefully document the observed failure mode. A clean, longitudinal rupture along the body of the balloon often indicates standard ductile material failure, which suggests a well-manufactured component. Conversely, a failure localized at the proximal or distal weld seams may point to process inconsistencies during laser welding or thermal bonding. Documenting these specific patterns helps manufacturing teams identify root causes and improve production yields.
Balloon Fatigue Resistance and Deflation Time Checks
Full catheter validation requires evaluating long-term performance across multiple operations. Evaluating balloon fatigue resistance involves cycling the device repeatedly to its rated burst limit, holding the target pressure for a defined period during each cycle.
This fatigue check simulates the clinical scenario where a cardiologist inflates a balloon multiple times during a single angioplasty procedure. The material must withstand these repeated expansions without developing pinholes or seam delamination.
Measuring balloon deflation time is also necessary to evaluate overall clinical safety. A balloon that takes too long to deflate can block arterial blood flow for an unsafe duration. Laboratories use specialized balloon catheter testing system configurations to measure how quickly the fluid medium evacuates the balloon chamber after nominal inflation.
Common Testing Errors to Avoid
Securing repeatable data during burst evaluations requires minimizing operator and mechanical variables. Analysts should monitor their testing workflows to eliminate these common testing errors:
-
Using unverified or fluctuating pressure ramp settings that shock the sample material.
-
Utilizing worn or incompatible Luer connectors that leak at high burst test pressure levels.
-
Allowing air bubbles to remain trapped in the fluid path, cushioning pressure delivery.
-
Testing samples while the pressure sensor operates under an expired calibration status.
-
Mixing different catheter batch codes within a single statistical validation calculation.
-
Relying on generic hold times instead of the duration specified in the validation protocol.
-
Failing to document the specific physical failure mode during static burst testing.
-
Neglecting to clean high-wear seals in the connector fixtures, causing progressive micro-leaks.
Equipment Considerations for Rated Burst Pressure Testing
Sourcing medical device testing machinery requires matching equipment capabilities with your validation specifications. A high-performance catheter testing equipment setup must deliver precise pressure control, clear sensor resolution, and high-frequency data recording.
The manufacturer ToronMed offers advanced pressure testing systems engineered to deliver the precise control and long-term durability needed for medical device QC. Partnering with application specialists from ToronMed allows your team to select compatible high-pressure fixtures, verify software capabilities, and configure a compliant testing workflow.
Final Recommendation
Successful balloon catheter characterization depends on precise pressure control, proper fixture selection, and stable environmental control. Treating static burst pressure, RBP, fatigue, and deflation checks as distinct methods ensures a robust validation profile that protects patient safety.
The brand ToronMed manufactures specialized testing instruments designed to simplify medical device QC. Working with technical experts from ToronMed helps your facility optimize pressure testing repeatability and maintain compliance with standard international testing methodologies.
