Catheter Burst Pressure Tester - ToronMed™ CBPT04
The Catheter Burst Pressure Tester evaluates the performance of balloon dilatation devices under controlled positive pressure conditions. This instrument determines static burst points and fatigue resistance for intravascular catheters. Integrated temperature tanks simulate physiological environments at thirty-seven degrees Celsius for accurate data. Manufacturers use these results to verify compliance with international safety standards.
High-speed embedded processors manage multiple test modes including inflation and deflation time analysis. Self-developed servo booster systems provide stable high-pressure outputs without requiring external air sources. Operators view real-time curves on a seven-inch high-definition touchscreen interface. Automated calibration routines enhance measurement reliability for complex research and development tasks.
Features and Technical Advantages
-
Integrated Simulation: Fluid-filled chambers maintain constant thermal levels to replicate human body conditions during testing.
-
Servo Booster Technology: Internal mechanisms eliminate the need for compressed air while providing stable pressure environments.
-
Comprehensive Testing: Software supports burst pressure, rated burst pressure, and balloon diameter-to-pressure relationship studies.
-
GMP Data Security: Multi-level password protection and audit trails ensure full compliance with computerized system requirements.
-
Durable Architecture: Stainless steel pipelines and corrosion-resistant materials support long-term operational reliability in laboratories.
Specialized Clinical Applications
Medical device laboratories utilize this tester for seal integrity and pressure compliance evaluations of sterile single-use catheters. Quality departments assess balloon fatigue resistance through repeated inflation cycles to predict device durability. Regulatory bodies rely on these precise measurements to certify products according to ISO 10555-1 and ISO 10555-4 requirements.
Technical Specifications
|
Specification |
Value |
|
Test Range |
0–10 MPa |
|
Accuracy |
0.5% FS |
|
Connector Type |
Luer taper |
|
Temperature Range |
Room Temp +5 °C to 100 °C |
|
Temperature Accuracy |
± 0.5 °C |
|
Storage Capacity |
100,000 Test records |
|
Net Weight |
Main engine: 31 kg; Booster: 33 kg |
Standard Configuration

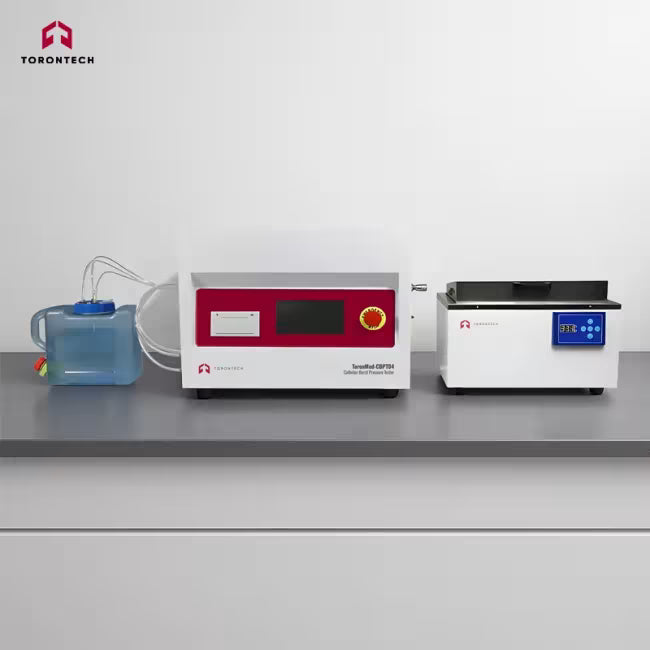

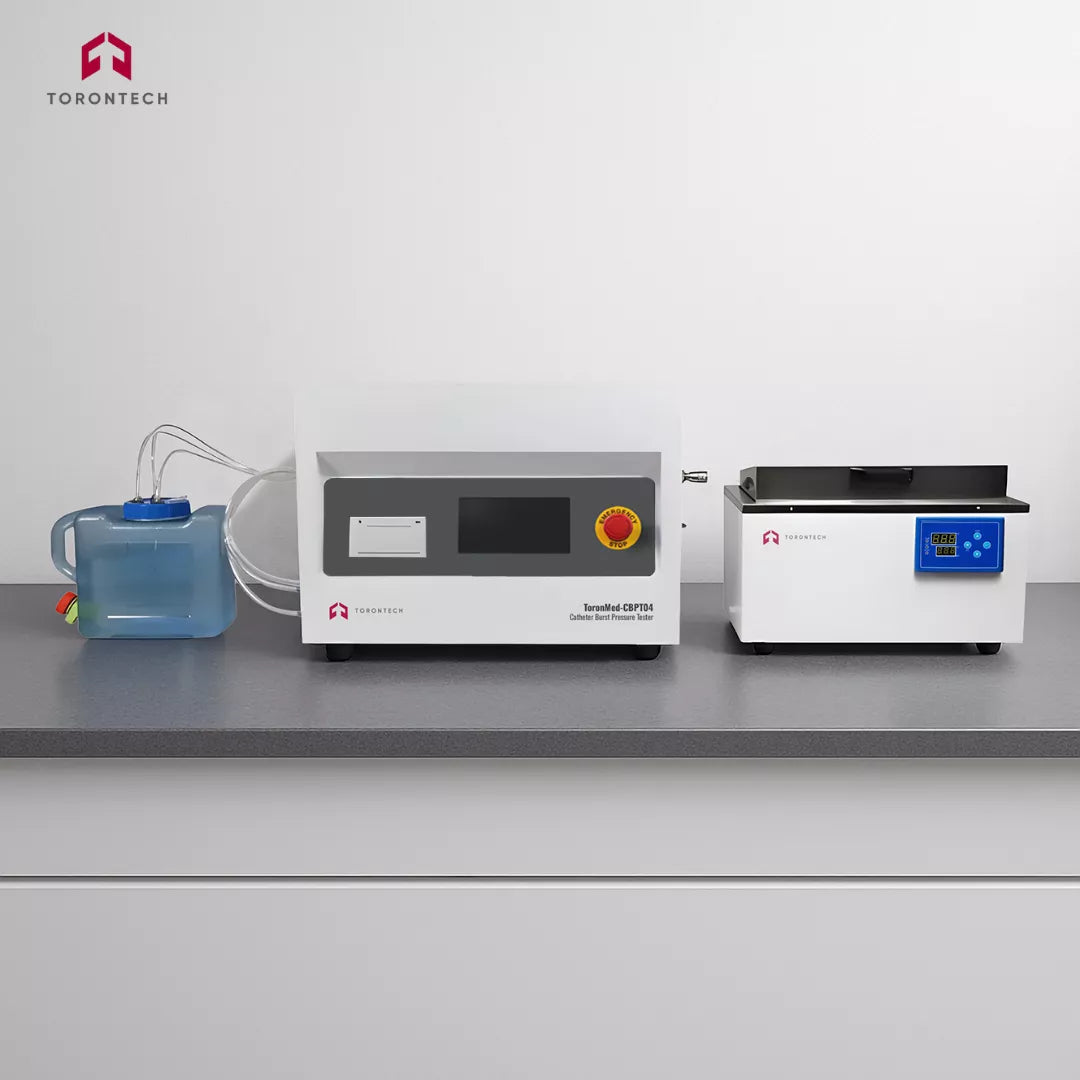

The main instrument unit includes a seven-inch touchscreen, a booster pump, and a constant temperature water tank. Every configuration features a liquid reservoir and a built-in micro printer for immediate reporting of test curves. These components integrate seamlessly to provide a robust platform for modern catheter validation and material property analysis.
