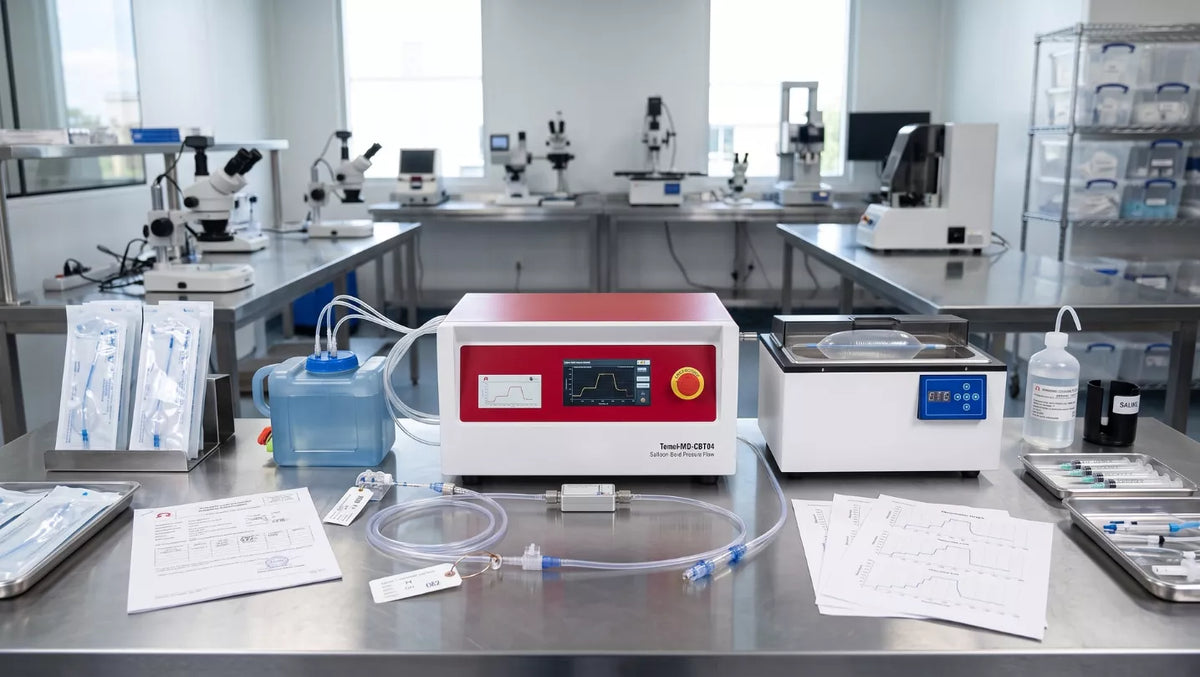

Balloon Catheter Testing System Setup for Validation and Production QC

Selecting a setup for balloon catheter testing depends on device type, pressure control needs, fixture compatibility, temperature simulation, and QC documentation requirements. Medical device manufacturing facilities must systematically evaluate system components to establish compliant, repeatable physical test lines.

This configuration guide helps validation engineers and laboratory technicians structure their balloon catheter testing system configurations. It covers pressure delivery systems, Luer seals, temperature baths, and data recording parameters necessary to support validation and production workflows.

What Is a Balloon Catheter Testing System?

A balloon catheter testing system applies and monitors positive pressure during catheter or balloon device evaluation. The system supports design verification, validation testing, and production quality checks for pressure-rated clinical devices.

Medical device manufacturers use this specialized balloon catheter testing equipment to verify structural limits, evaluate material fatigue, and document burst thresholds. Setting up a reliable balloon tester configuration protects manufacturing facilities from process errors and supports regulatory compliance.

Where Balloon Catheter Testing Fits in Validation and Production QC

Analytical laboratories integrate physical stress tests at distinct phases of the product life cycle. The setup priorities often shift depending on whether the system supports research trials or routine manufacturing checks.

Research and development teams use medical balloon testing to assess prototype formulations, evaluate geometry changes, and identify design limits. Validation departments require documented, traceably verified proof that the final design behaves repeatably under pressure.

Production teams rely on rapid, in-process medical device balloon catheter testing to monitor automated line consistency. Correct system configuration supports these workflows, helping technical teams transition seamlessly from low-volume R&D testing to high-throughput batch release.

Core System Components to Verify

Establishing a reliable testing environment requires matching individual machine components with your internal standard operating procedures (SOPs). Hardware configurations must deliver precise mechanical pressure without introducing measurement drift or fluid leaks.

The table below describes the primary hardware components of a standard testing system, explaining their mechanical role and detailing what validation teams must verify.

Pressure Control and Positive Pressure Testing Setup

Precise pressure delivery is the foundation of repeatable catheter evaluation. Fluctuating pressure increases the risk of premature material shock, yielding inconsistent and incorrect burst data.

Setting up a system for positive pressure testing requires verifying that the pressure controller increases hydraulic force at a linear, controlled rate. Standard configurations often implement a high-resolution servo booster to deliver smooth pressure ramps. Technical teams must align these control settings with the specifications outlined in their rated burst pressure testing validation protocol.

Luer Connector and Fixture Compatibility

The mechanical connection between the testing equipment and the catheter manifold is a common source of measurement errors. If a connection leaks during a pressure cycle, the system fails to reach target burst limits, which mimics premature balloon failure.

To prevent these errors, laboratories must utilize compatible, high-pressure connectors. Evaluating balloon catheter testing equipment should include a thorough review of the clamping fixtures. Confirm that the supplier provides standard Luer-lock adapters alongside custom geometric fixtures. Specialized setups may also integrate a dedicated catheter cuff inflation tester to assess auxiliary sleeve seals under load.

Temperature Simulation and 37°C Testing Conditions

Polymer materials behave differently at room temperature than they do at human body temperature. Heat softens most medical plastics, which significantly lowers their tensile strength and burst resistance.

Simulating physiological conditions requires a configuration with a temperature-controlled water tank. Validation methods commonly mandate pre-conditioning the samples in a 37°C water bath before initiating the pressure ramp. Technical teams must verify that the heating elements maintain stable, uniform temperature distribution throughout the bath during long-term cycling trials.

Data Recording, Software, and QC Documentation

Sustaining data integrity is a fundamental requirement of modern medical device manufacturing. Every test parameter, calibration date, and peak failure value must be traceably recorded to support quality audits and regulatory filings.

Technical teams should verify that the system software supports secure, unmodifiable data recording. High-capacity digital databases, which store up to 100,000 records, help prevent manual transcription errors. Additionally, check if the system integrates standard communication ports, such as RS232, or a dedicated thermal printer to simplify batch record compiling directly at the workstation.

Validation and Production QC Workflow Setup

SOPs dictate different documentation and process controls depending on whether a test run supports research design verification or finished batch release. Operating setups must adjust to these distinct operational priorities.

The following table organizes the main stages of the testing workflow, outlining specific setup requirements and the QC documentation needed to preserve process compliance.

Common Setup Errors to Avoid

Achieving consistent data requires minimizing mechanical and operator variables during daily testing. Analysts should monitor their testing workflows to eliminate these common setup errors:

• Sourcing connectors that do not match the exact geometry of the catheter manifold.

• Allowing air bubbles to remain trapped in the fluid path, which cushions the pressure delivery.

• Testing samples while the pressure sensor operates under an expired calibration status.

• Neglecting to monitor the water bath temperature during long-term fatigue cycles.

• Recording only binary pass or fail values without capturing the exact peak burst pressure.

• Utilizing unverified software interfaces that do not secure the raw test records.

• Mixing different validation methods and production batch codes within a single run sheet.

• Operating the system with worn or dirty Luer adapters, causing progressive micro-leaks.

Buyer Checklist for Balloon Catheter Testing Equipment

This technical checklist helps quality assurance managers and laboratory leaders verify configuration requirements before purchasing new instrumentation:

• Define the primary catheter and balloon catheter types to be processed in your facility.

• Confirm the applicable sections of ISO 10555-1 and ISO 10555-4.

• Establish the maximum pressure limits and safety margins required.

• Confirm the required pressure accuracy and sensor resolution limits.

• Review fixture and connector compatibility for all catheter profiles.

• Verify the presence of physical operator shields and automatic pressure shutoffs.

• Check the calibration process and confirm the availability of traceable verification tools.

• Review data recording, storage, and secure export capabilities.

• Confirm that software features align with local data integrity rules.

• Verify the availability of regional technical support, installation help, and training.

• Consult with application specialists to review specific device configurations.

Final Recommendation

Successful balloon catheter characterization depends on precise pressure control, proper fixture selection, and stable environmental control. Evaluating your system parameters before installation protects your laboratory from downtime and ensures a robust validation profile that protects patient safety.
