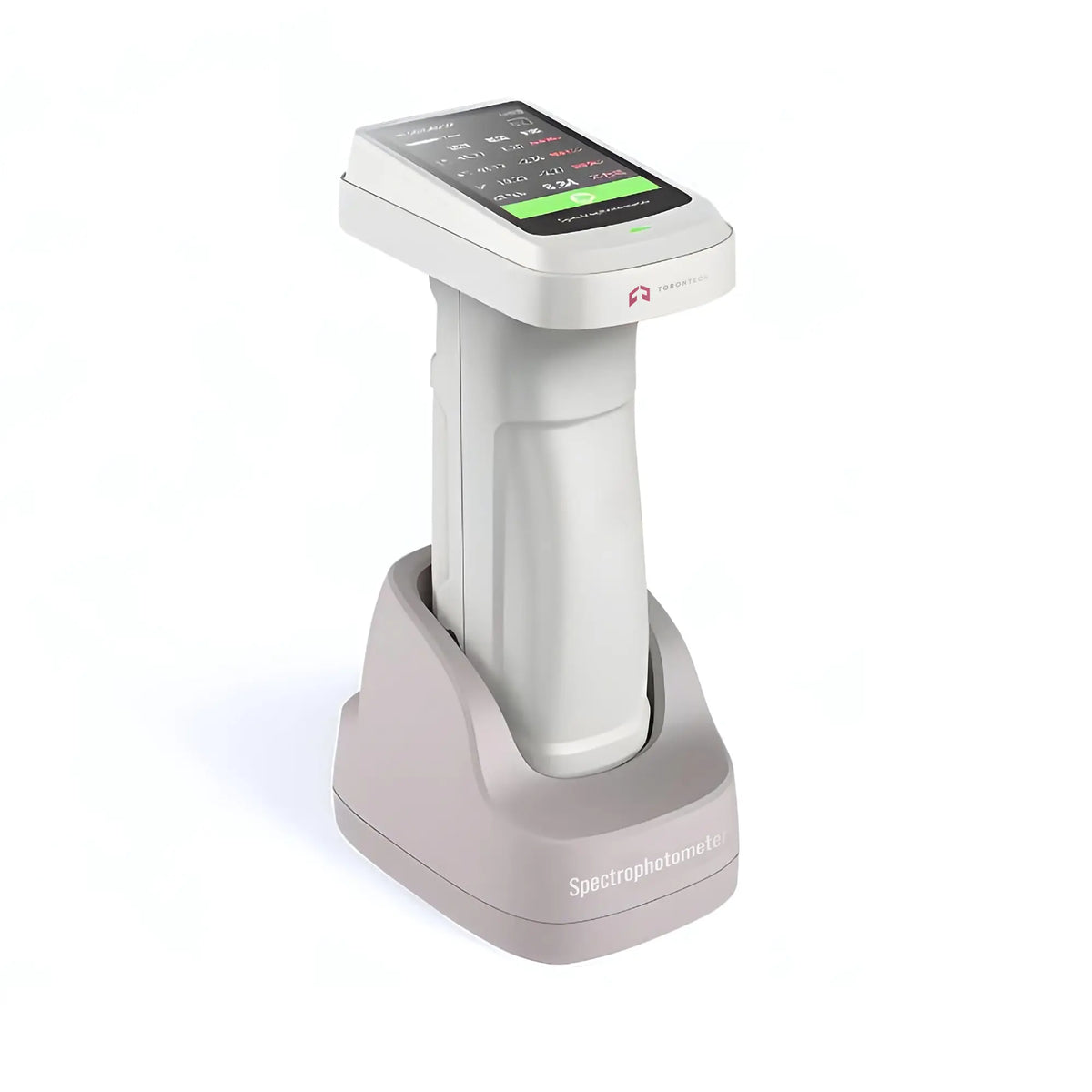

Portable Color Spectrophotometer – Colorimeter ToronSpec™-700D
The ToronSpec™-700D is a high-performance portable color spectrophotometer designed for precision optical color measurement. Engineered for paint, coating, and textile R&D, it delivers professional-grade inter-instrument agreement and repeatability within a compact, easy-to-carry footprint without compromising on spectral analysis power or global standards compliance.
- 0.25 dE*ab Inter-Instrument Agreement
- 0.025 dE*ab Repeatability Accuracy
- 30+ Measurement Parameters Available
- 4 Versatile Aperture Sizes Supported
Portable Color Spectrophotometer – Colorimeter ToronSpec™-700D features an excellent technical and technological level for accurate color measurement, ensuring superb inter-instrument agreement with dE*ab < 0.25. The dual-path design featuring a flat-field concave grating enhances instrument repeatability to dE*ab < 0.025.
Portable Spectrophotometer ToronSpec™-700D offers over 30 measurement parameters and nearly 40 evaluation light sources for selection. It comes with four aperture sizes (11mm, 6mm, 3mm, 1*3mm) to accommodate different sample sizes. Additional features include camera viewfinder positioning, ultraviolet UV measurement, mobile phone measurement, and color matching software.
Application of Portable Color Spectrophotometer – Colorimeter ToronSpec™-700D
Double optical path improves repeatability accuracy dE*ab≤0.025
The dual optical path design monitors the energy fluctuations of the light source while measuring the sample signal, reducing interference during measurement. This results in higher accurate color measurement stability and improves the instrument's repeatability index to dE*ab ≤ 0.02. This ensures high standards of measurement speed, accuracy, and stability between stations. The related technologies are protected by American invention patents.
Innovative concave grating light path structure
We have utilized concave grating to achieve optical performance surpassing 10 nm, significantly enhancing the product's technical capabilities. The related technologies are protected by invention patents in the United States and have independent intellectual property rights worldwide.
Features of Portable Spectrophotometer ToronSpec™-700D
Excellent inter-station consistency dE*ab≤0.25
The ToronSpec™-700D features an excellent technical and technological level, ensuring superior inter-instrument agreement. Using the BCRA series of standard color tiles for color transfer and color value tracing guarantees that the same type of instrument maintains outstanding desk-to-desk consistency between upstream and downstream companies.
Ultra-high repeatability accuracy: dE*ab < 0.025
Repeatability accuracy is a crucial index for describing the accuracy of a spectrophotometer. The ToronSpec™-700D spectrophotometer features an exceptional photoelectric test system that ensures its repeatability accuracy is unmatched by similar products. The repeatability evaluation of the ToronSpec-700D follows stringent standards, demonstrating its excellent repeatability accuracy.
The calibration white tile is a zirconium reference with a Mohs hardness of 9 to calibrate the instrument, which guarantees the long-term stability of the instrument
Unlike existing products, this spectrophotometer does not require frequent manual calibration. Simply placing it on the calibration base allows the instrument to automatically calibrate its functions and accuracy according to its state and environmental factors, ensuring it remains in a stable and ready-to-use condition at all times.
Calibrating the white tile is fundamental to the instrument's operation. Through extensive investment and research, we have incorporated zirconium materials, known as "artificial diamonds," into the calibration white tile, achieving a surface Mohs hardness of 9. This material's hardness and stability, comparable to diamonds, ensure that the calibration white tile surface remains scratch-free and does not change color with variations in temperature and humidity. In contrast to similar foreign and domestic products, which use ordinary industrial ceramics or even plastics for their calibration whiteboards, our choice of zirconium material significantly enhances the stability, durability, and overall performance of the instrument.
Calibrated white tile (artificial diamond zirconium material)
More than 30 measurement parameters and nearly 40 evaluation light sources are available
The ToronSpec™-700D spectrophotometer provides over 30 measurement indicators, including spectral reflectance, CIE-Lab, CIE-LCh, ΔE*ab, covering power, whiteness, and yellowness. It offers nearly 40 evaluation light sources, such as A, B, C, D50, D55, and D65, covering almost all the color measurement indicators and light source types in the industry.
Supports 4 apertures
To accommodate different sample sizes, the ToronSpec™-700D spectrophotometer supports four apertures: Φ11mm, Φ6mm, Φ3mm, and 1*3mm. This flexibility allows it to be used effectively in various sample testing scenarios.
Built-in HD camera for clear viewing of measured area
The ToronSpec™-700D spectrophotometer features a camera that captures images of the measured area during the measurement process. This allows for clear localization of the sample's measured area, preventing measurement inaccuracies caused by errors in area selection.
Support Android, Apple, mobile APP
The ToronSpec™-700D spectrophotometer can connect to various mobile phones using the Color Meter App. Users can easily share color data, eliminating the need to convey color values manually for samples and physical objects. The app allows users to identify the most similar colors across multiple sets of color cards.
Additionally, users can create personalized color databases and input information for color cards used in printing, paint, and textiles. These color libraries can be uploaded to the cloud for convenient color processing and shared across multiple devices.
For business users, the app enables them to create and manage their own color card information library and color recipes in the cloud. They can then share this information and recipes with their users through a unique invitation code.
Use the powerful PC-based colour management system ColorExpert*
The ToronSpec™-700D spectrophotometer comes with a Windows color management system called ColorExpert, which can connect to the spectrophotometer via Bluetooth or USB cable. ColorExpert is comprehensive color management software that comprises four functional modules: My Color, Color QC, Color Matching System, and Personal Center.
My Color
Users can collect or create their own color library from hundreds of other users' shared color libraries. Both the PC software and mobile app can share accounts, allowing color library data to synchronize between PC and mobile devices.
Color QC
The user can calibrate, measure, and configure the spectrophotometer using the PC software. They can utilize colors from the cloud database as specimens to measure color differences, view spectrograms, color difference graphs, specimen trial data, and export the desired data test reports.
Color matching
Offering users a more convenient and efficient color matching process, the system automates formula calculation in the formula center after the instrument measures the sample's color. This automated process ensures accurate color matching by automatically adjusting the color. The system is ideal for computerized automatic color matching applications in industries such as paint, coating, printing, textile, and others.
Personal centre
Users can edit personal information, search for or delete connected instruments, manage downstream users, and manage color libraries shared with downstream users.
Appearance structure and accessories
|
|
Quantity
|
|
Spectrophotometer
|
1
|
|
Aperture
|
4
|
|
Calibration base
|
1
|
|
Portable package
|
1
|
|
Instructions
|
1
|
|
Charger
|
1
|
|
USB cable
|
1
|
|
Calibration Certificate
|
1
|
|
Software U Disk
|
1
|
Specification of Portable Color Spectrophotometer - Calorimeter ToronSpec™-700D
|
Product model
|
ToronSpec™-700D
|
|
Measuring Geometry*
|
D/8，SCI/SCE
|
|
Measurement repeatability**
|
ΔE*ab≤ 0.025
|
|
Inter-instrument Agreement***
|
ΔE*ab≤0.25
|
|
Display accuracy
|
0.01
|
|
Measuring aperture
|
Φ11mm，Φ6mm，Φ3mm，1*3mm
|
|
Color Spaces and Indices
|
Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness(My,dM),Color Fastness, Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity, Color strength
|
|
Illuminants
|
A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2
|
|
Light source
|
LED+UV
|
|
Measurement observation method
|
Camera
|
|
Calibration
|
Auto calibration
|
|
Software
|
Android, iOS, Windows
|
|
Guaranteed accuracy
|
Guaranteed first class measurement
|
|
Observer
|
2°，10°
|
|
Integrating sphere diameter
|
40mm
|
|
Standards
|
CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
|
|
Spectrometry
|
Grating
|
|
Sensor
|
Two-column high precision CMOS array sensor
|
|
Wavelength interval
|
10nm
|
|
Wavelength range
|
400-700nm
|
|
Reflectance determination range
|
0-200%
|
|
Reflectance resolution
|
0.01%
|
|
Measurement time
|
Less than 2 seconds
|
|
Interface
|
USB, Bluetooth
|
|
Screen
|
IPS full color screen, 3.5 inches
|
|
Battery capacity
|
8000 consecutive measurements, 7.2V/3000mAh with a single charge
|
|
Life of Light Source
|
10 years and 1 million cycles
|
|
Language
|
English and others
|
|
Storage Memory
|
Instrument: 100 standard samples and 10,000 samples; APP: Mass Storage
|
