Load-Lock Magnetron Sputtering System – ToronSputter™ SD

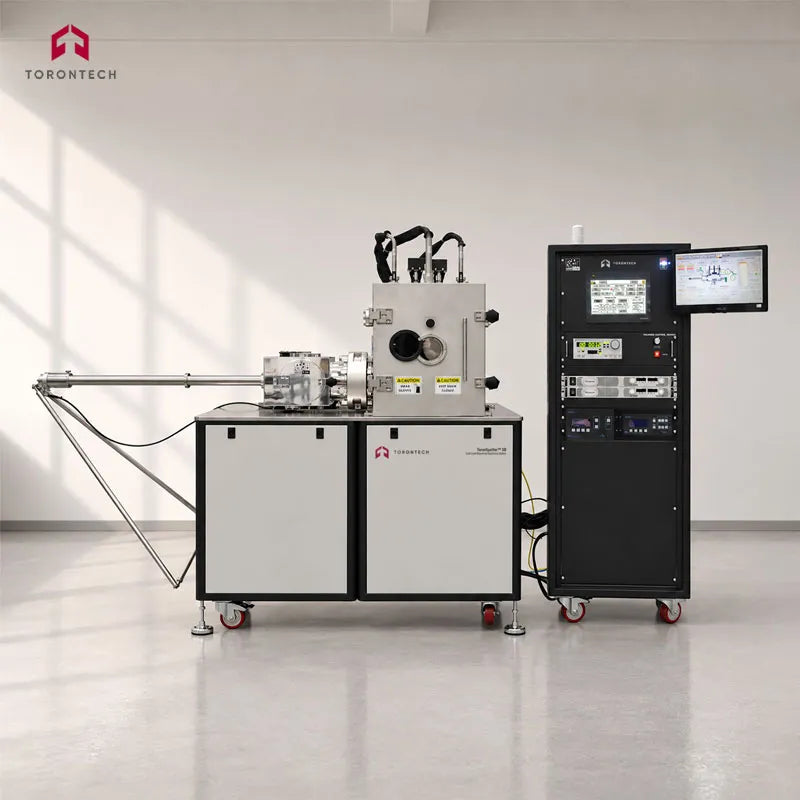

The ToronSputter™ SD is a sputter-down load-lock magnetron sputtering system built for high-throughput PVD in both research and production settings, particularly where the main chamber vacuum must stay intact between sample exchanges. A dedicated pump brings the load-lock down to 10⁻⁶ Torr in 10 minutes, so samples can be swapped continuously without venting the main chamber, which maintains a 10⁻⁸ Torr base pressure. A magnetic-arm transfer mechanism handles loading and unloading of 2", 3", 4", and 6" substrates. This fast cycle time makes it possible to run 20 to 30 experiments per day.
Sputter-Down Guns and Process Capabilities
Sputter-down guns are offered in RF and DC configurations with diameters from 1 to 6 inches, featuring flex-head rotation and compression seals. The system deposits conductive materials such as Au, Al, Ti, and Ni, as well as insulating materials such as MgO, TiO₂, SiO₂, and TiN, at high deposition rates under recipe control. Digital MFC gas inlets with 0.1 sccm sensitivity deliver Ar, N₂, O₂, He, and CH₄, supporting both inert and reactive sputtering. PID-controlled substrate heating covers 50 to 600 °C with ±1 °C stability, enabling deposition onto heated substrates.
Thermal Evaporation, Monitoring, and Control
Thermal evaporation is available through sequential thermal sources rated from 8V to 500A and 5000W. Their design prevents cross-contamination and allows materials and sources to be replaced easily. A dual-channel thickness controller with two QCMs monitors deposition rate with 0.1 Å/s precision. The system also provides sample rotation from 2 to 30 rpm and DC/RF plasma cleaning. Pressure control holds the working pressure at target values using downstream and upstream flow control. Operation is available from either a computer or a control panel, both with real-time LCD displays, and LabVIEW manages shutter and thickness sequences.
Load-Lock Magnetron Sputtering System – ToronSputter™ SD Applications
Where the ToronSputter™ SD Performs
The ToronSputter™ SD supports high-throughput PVD research and production environments where main chamber vacuum integrity, substrate cleanliness, and experiment cycle time are all top priorities. Its load-lock architecture and sputter-down configuration suit multi-layer coating programs as well as research work that calls for frequent substrate changes.
Key Application Areas
- High-Throughput PVD Research Facilities: Run multiple substrate depositions each day without venting the main chamber, supporting iterative thin film research with fast sample turnover.
- Semiconductor and Microelectronics Fabrication: Perform sputter-down deposition of metal contacts, barrier layers, and dielectric films on 2" to 6" wafers under a clean, continuously maintained vacuum.
- Hard Coating and Tool Surface Engineering: Apply reactive sputtering of TiN, CrN, TiAlN, and DLC coatings to cutting tools and molds at high deposition rates with recipe-controlled processes.
- Optical Thin Film Production: Deposit TiO₂, SiO₂, and other optical coatings, using downstream and upstream pressure control to achieve stoichiometric reactive sputtering.
- Electronics and RF Component Coating: Use DC and RF sputter deposition of Au, Al, Ti, and other conductors for electronics, RF packaging, and precision connector metallization.
- Academic and University Research Programs: Benefit from a flexible multi-source platform for materials science, device physics, and surface engineering research, with rapid load-lock sample exchange.
- Medical Device and Implant Coating: Sputter TiN, DLC, and biocompatible metallic films under clean vacuum with recipe-controlled process sequences.
 |
 |
Load-Lock Magnetron Sputtering System – ToronSputter™ SD Key Features
The ToronSputter™ SD combines a load-lock sample exchange system, sputter-down gun configuration, MFC gas control, and PID substrate heating on a high-vacuum platform built for high-throughput research and production sputtering.
Vacuum and Sample Handling
- Dedicated Load-Lock Pump, 10⁻⁶ Torr in 10 Minutes: A separate pumping system evacuates the load-lock independently, so samples can be introduced without disturbing the main chamber vacuum.
- 10⁻⁸ Torr Main Chamber Base Pressure: A turbomolecular and mechanical pump combination, with a dry pump option, reaches the base pressure needed for high-purity magnetron sputtering.
- Magnetic Arm Sample Transfer, 2" to 6" Substrates: The magnetic arm loads and unloads substrates from 2" to 6" in diameter, providing flexible substrate compatibility.
- 20 to 30 Experiments Per Day Throughput: The load-lock architecture allows rapid sample exchange and shortens the time between depositions, supporting high-volume research and production programs.
- Wide-Range Vacuum Control (1000 to 10⁻⁹ Torr): Integrated vacuum measurement and control spans the full pressure range, covering both process gas and deep base vacuum monitoring.
- Throttle, Vent, Isolation, and Gate Valve Configuration: A comprehensive valve set manages every pressure transition, and the isolation valve keeps the main chamber under vacuum when idle.
Sputtering Sources and Deposition
- 1 to 6-Inch RF and DC Sputter Guns with Flex-Head Rotation: A wide range of gun diameters, along with self-axis rotation and compression seals, provides flexible target configuration and reliable vacuum sealing.
- Conductor and Insulator Deposition at High Rates: Recipe-controlled, high-rate sputtering deposits conductors (Au, Al, Ti, Ni) and insulators (MgO, TiO₂, SiO₂, TiN).
- Digital MFC Gas Inputs (Ar, N₂, O₂, He, CH₄) at 0.1 sccm Sensitivity: Mixed gas delivery with digital flow control supports both inert and reactive sputtering.
- Downstream and Upstream Pressure Control: Working pressure can be fixed at desired values through downstream or upstream mass flow control, enabling precise reactive sputtering.
- 50 to 600 °C PID Substrate Heating with ±1 °C Sensitivity: Closed-loop temperature control supports deposition on heated substrates across a wide range, benefiting film crystallinity and adhesion.
- 2 to 30 rpm Sample Rotation with DC/RF Plasma Cleaning: Adjustable substrate rotation with PC speed control is paired with DC/RF plasma cleaning to remove native oxides before deposition.
Thermal Evaporation and Thickness Monitoring
- 8V to 500A, 5000W Thermal Sources for Co-Evaporation: High-power sequential and co-evaporation thermal sources feature a design that prevents cross-contamination and allows easy material replacement.
- 0.1 Å/s Dual-Channel Thickness Monitoring with Two QCMs: Two independent channels measure deposition rate and cumulative thickness simultaneously with high precision.
- Load-Lock Adaptable to E-Beam and Thermal Source Systems: The load-lock architecture can be configured for platforms that combine magnetron sputtering with e-beam and thermal evaporation sources.
Chamber Design and Configuration
- SS304 Chamber (Prismatic or Cylindrical) with Electro-Polished Surfaces: The feather-touch, electro-polished interior includes an SS304 liner, and water-cooled chamber surfaces are available when needed.
- Standard 1-Inch, QF, CF, and ISO Feedthrough Ports: Configurable port selection allows upgrades with additional thermal and sputtering sources without modifying the chamber.
- UV-Blocking Observation Window with LabVIEW Shutter Control: A rotatable door shutter handles process timing, and LabVIEW manages the sample shutter and thickness control integration.
Automation, Safety, and Support
- Fully Automatic Computer and Panel Control with LCD Displays: All deposition operations run automatically under computer control, with panel override and real-time LCD status.
- Interlock-Protected Automatic Water Cooling: Closed-loop water cooling switches on and off automatically, and an interlock blocks sputtering or evaporation unless coolant is flowing.
- Two-Year Warranty for Materials, Design, and Workmanship: Comprehensive two-year coverage applies to system components, design, and manufacturing quality.
Load-Lock Magnetron Sputtering System – ToronSputter™ SD Theory and Method
Load-Lock Principle
A load-lock is a small, separately pumped antechamber that lets substrates move in and out without exposing the main process chamber to atmospheric pressure. In conventional systems, the entire main chamber is vented to atmosphere for every sample change, and a full pump-down cycle must finish before each deposition run. A load-lock uses gate valves to isolate the two vacuum spaces, so the main chamber stays at base pressure while samples are loaded and removed. As a result, the time between consecutive depositions drops from hours to minutes, which makes 20 to 30 experiments per day possible.
Sputter-Down Magnetron Sputtering
In a sputter-down magnetron configuration, the targets sit above the substrate and sputtered atoms travel downward, which limits particulate contamination from falling debris. Sputter-up configurations work the other way: gravity pulls target flakes and loose particles straight onto the growing film surface. The magnetron's magnetic field confines the plasma close to the target face, improving sputtering efficiency and supporting high deposition rates at low working pressures. DC power handles conductive targets, while RF power at 13.56 MHz extends the process to insulating materials.
Vacuum, Cooling, and Evaporation Support
The main chamber reaches a 10⁻⁸ Torr base pressure using a turbomolecular and mechanical pump combination, and a separate pump brings the load-lock down to 10⁻⁶ Torr in 10 minutes. Throttle, vent, isolation, and gate valves govern every pressure transition, and the isolation valve keeps the main chamber under continuous vacuum. A water-cooling system with an automatic on-off interlock prevents the sputtering guns or thermal sources from operating without active coolant flow. Thermal sources rated from 8V to 500A and 5000W enable co-evaporation and sequential multi-material deposition within the same run.
Load-Lock Magnetron Sputtering System - ToronSputter™ SD Technical Specifications
| Parameter | Specification |
|---|---|
| Main Chamber Base Pressure | 10⁻⁸ Torr |
| Load-Lock Vacuum Level | 10⁻⁶ Torr in 10 minutes |
| Vacuum Control Range | 1000 to 10⁻⁹ Torr |
| Pump Configuration | Turbomolecular + Mechanical (dry pump optional); dedicated load-lock pump |
| Valve Configuration | Throttle, vent, isolation, and gate valves |
| Chamber Material | SS304 (prismatic or cylindrical); electro-polished; SS304 liner |
| Chamber Surface Cooling | Water-cooled surfaces (when needed) |
| Feedthrough Ports | Standard 1-inch, QF, CF, ISO |
| Observation Window | UV-blocking; rotatable door shutter |
| Sputtering Configuration | Sputter-down |
| Sputtering Guns | 1 to 6 inches; RF and DC; flex-head; self-axis rotation; compression seal |
| Sample Transfer | Magnetic transfer arm |
| Sample Sizes | 2", 3", 4", 6" |
| Substrate Heating | 50 to 600 °C (PID controlled, ±1 °C) |
| Sample Rotation Speed | 2 to 30 rpm (PC controlled) |
| Plasma Cleaning | DC/RF plasma |
| Gas Inputs | Ar, N₂, O₂, He, CH₄ and others; digital MFC; 0.1 sccm sensitivity |
| Pressure Control Method | Downstream and upstream flow control |
| Thickness Monitoring | Dual-channel; 0.1 Å/s precision; 2 QCMs |
| Thermal Sources | 8V to 500A, 5000W (sequential and co-evaporation) |
| Cooling System | Automatic closed-loop water cooling (interlock protected) |
| Control System | Fully automatic computer control; panel control; real-time LCD; LabVIEW |
| Experiment Throughput | 20 to 30 experiments per day |
| Warranty | 2 years (materials, design, and workmanship) |
