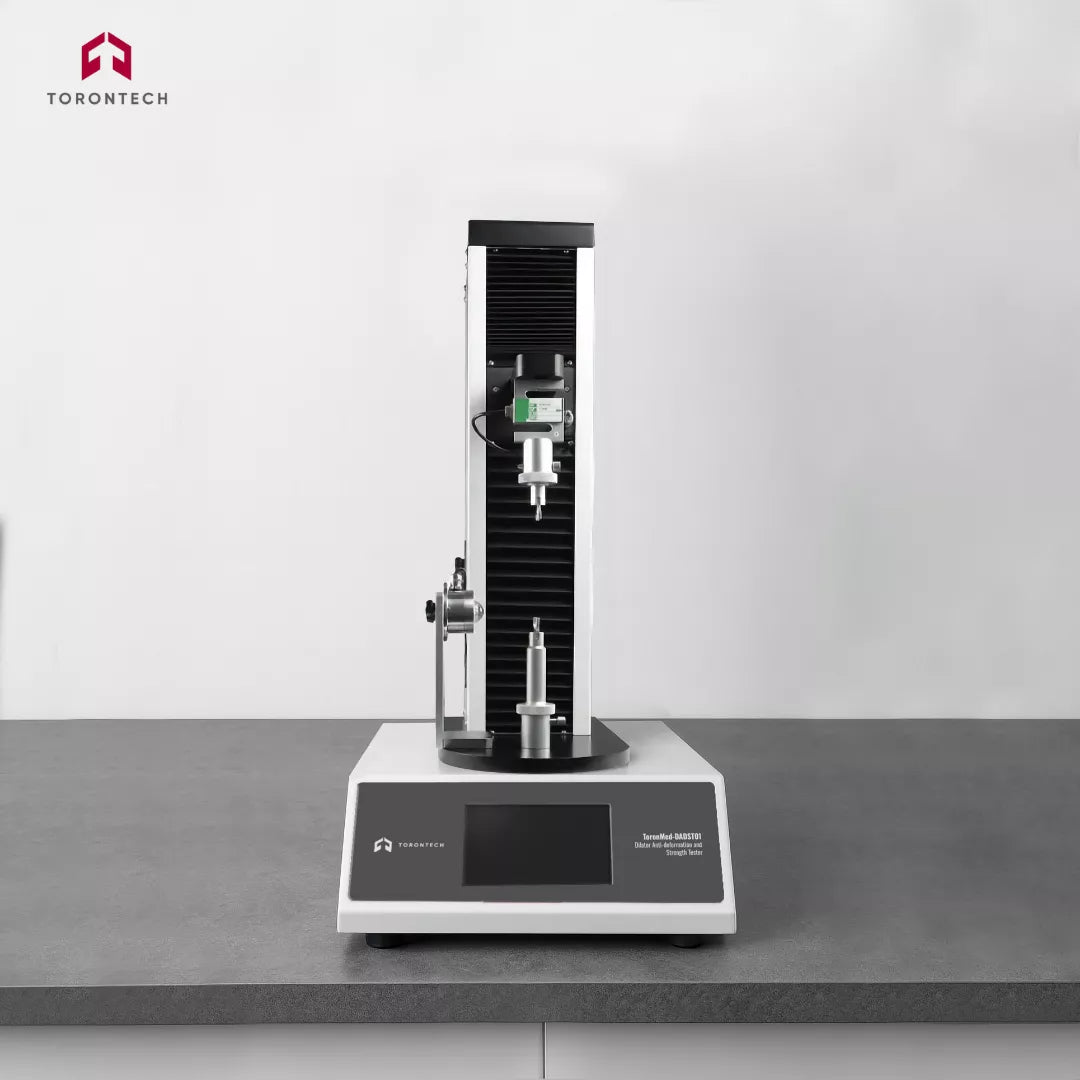

Vaginal Dilator Strength Tester
The ToronMed™ DADST01 is a specialized medical quality control platform built to analyze the structural limits of single-use vaginal dilators. Engineered for deflection and compression resistance testing, this system delivers precise force tracking and mechanical displacement monitoring within a space-efficient laboratory layout, ensuring strict compliance with global medical device standards.
- 0–500 N Test Range
- ±0.5% Accuracy Rating
- 0.01–50 mm Deflection Range
- 100,000 Record Storage Capacity
Get personalized pricing for your specific requirements
Dilator Anti Deformation & Strength Tester - ToronMed™ DADST01
Evaluates the structural integrity of disposable sterile vaginal dilators. High-precision load cells measure deflection and toughness with accuracy. Advanced displacement systems record mechanical changes during force application. Manufacturers use this platform for reliable quality control.
Integrated motor drives provide stable speeds for smooth operation during compression resistance testing. Specialized fixtures secure medical devices to determine displacement values accurately. Operators manage results through a color touchscreen interface. Automatic calibration features simplify daily laboratory routines.
Testing Features and Advantages
-
High-Precision Load Cell: Imported sensors provide measurement accuracy within ±0.5% FS for reliable data.
-
Large Data Storage: The internal system stores over 100,000 test records with automatic memory recovery.
-
Integrated Printing: A built-in micro printer produces on-site results including maximum, minimum, and average values.
-
Safety Protections: Over-range shutdown mechanisms prevent sensor overload and protect the test fixtures.
-
GMP Compliance: Optional software includes audit trails and multi-level authority controls for regulated environments.
Clinical and Laboratory Applications
Quality control laboratories use this instrument to verify the safety of medical instruments before clinical use. The system also supports puncture resistance testing for various medical devices. Researchers rely on stable data for product development and regulatory compliance.
Technical Specifications
|
Specification |
Value |
|
Test Range |
0–500 N |
|
Accuracy |
±0.5% FS |
|
Deflection Range |
0.01–50 mm |
|
Resolution |
0.001 N |
|
Stroke |
300 mm |
|
Test Speed |
0–600 mm/min |
|
Net Weight |
33.5 kg |
Standard Configuration
The main instrument unit comes with a 7-inch color touchscreen interface and a specialized dilator test fixture. Each package includes a micro printer for immediate documentation of testing cycles. Power configurations support both AC 220V and AC 110V environments to accommodate global laboratory standards.
