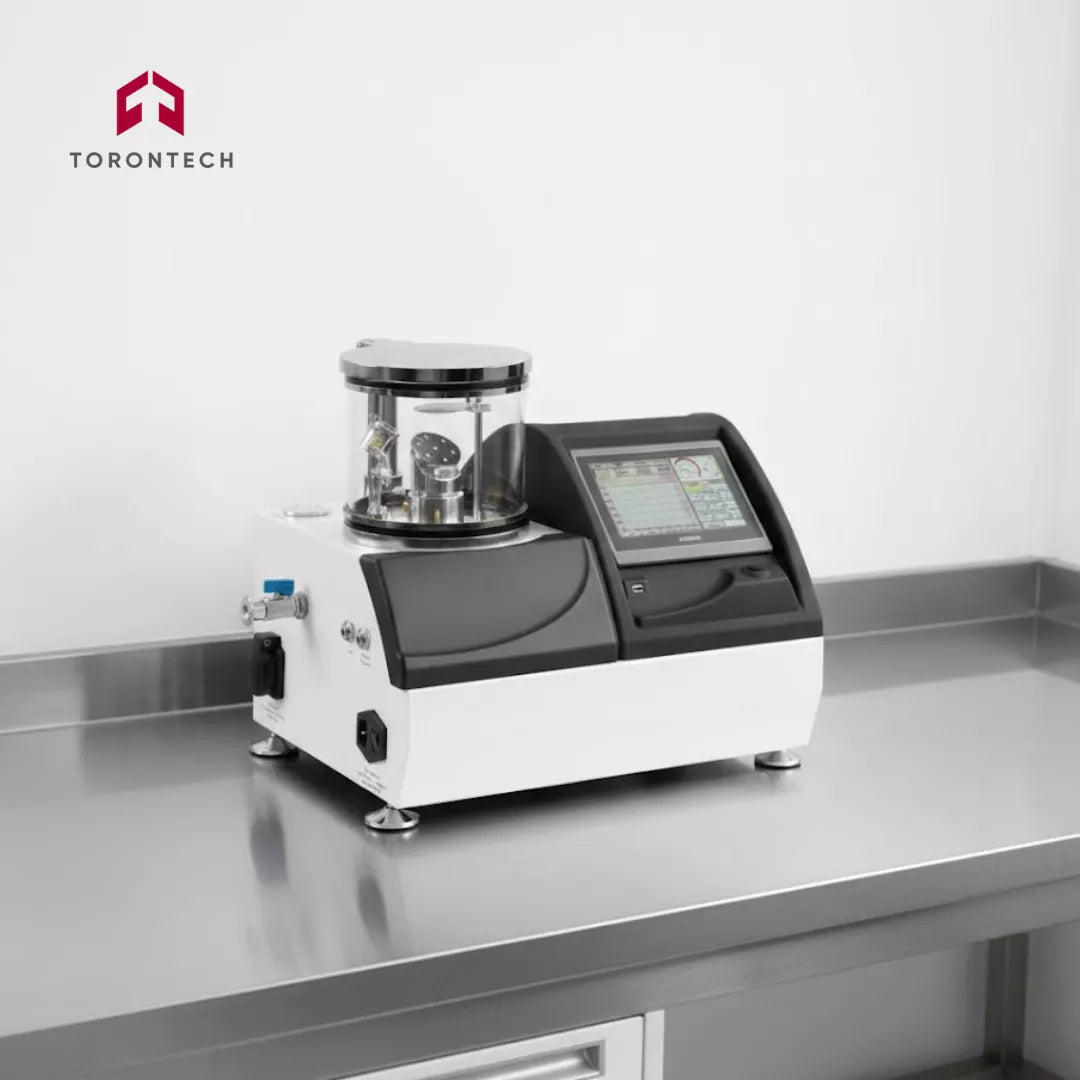

DSR1 Desk Sputter Coater
The DSR1 Desk Sputter Coater is a compact coating system that deposits thin films of noble metals, including gold (Au), palladium (Pd), platinum (Pt) and gold/palladium (Au/Pd), onto non-conductive or poorly conductive specimens. It produces uniform, fine-grain films within a short cycle time.
The resulting coating is well suited to scanning electron microscopy (SEM) analysis. This desk magnetron coater delivers consistent, reproducible results through a fully automated process. Its ergonomic layout and small footprint make it easy to set up and simple to operate.
Applications
- Scanning Electron Microscopy (SEM): Applies fine-grain conductive coatings to non-conductive samples, which reduces charging and improves image quality.
- Material Science Research: Deposits even noble metal films for structural and surface analysis of polymers, ceramics and composites.
- Nanotechnology: Prepares specimens with thin, uniform coatings for nanoscale characterization.
- Life Sciences and Biological Studies: Coats biological samples to improve contrast and stability during SEM observation.
- Quality Control and Industrial R&D: Provides repeatable thin-film coatings for manufacturing and product testing.
- Plasma Cleaning Applications: Removes surface contaminants, which strengthens coating adhesion and analytical accuracy.
- Teaching and Training Laboratories: Offers a dependable, easy-to-use platform for SEM sample preparation in academic settings.
Features and Advantages
- Two-stage direct drive rotary vane pump with a 4 m³/h capacity
- High-precision quartz crystal thickness monitor
- Intuitive touchscreen interface for straightforward control of the coating process and fast data entry
- User-friendly software with network update capability
- Precise coating rate control for finer grain structures
- Manual or automatic sputtering, by time or by thickness
- GLAD sputtering capability
- Plasma cleaning function
- Easily interchangeable specimen stages (planetary rotation or rotation stage included as standard)
- Two-year warranty
- CE conformity for safety compliance
- Worldwide public and product liability insurance coverage, protecting against property damage or personal injury caused by Vac Coat systems
Color Touchscreen Control
The DSR1 is equipped with a 7-inch color touchscreen that provides full automatic control and simple data entry, so even first-time users can operate it with confidence. Vacuum level, current and deposition information can be viewed as digital readouts or as curves. The system also stores data for the last 300 coatings, which you can review on the history page.
 |
 |
Sample Holder Options
The DSR1 supports several sample stage configurations to match different requirements. The standard stage rotates and offers adjustable height and angle for easy customization. For even coverage on porous specimens, the rotary planetary stage is the recommended option.
|
 |
Physical Vapor Deposition (PVD) Principles
If you analyze samples by SEM or TEM every day, you know that a dependable coating system is essential for high-stakes imaging. The Torontech DSR1 Desk Sputter Coater is a budget-friendly, high-performance solution that works on the principle of Physical Vapor Deposition (PVD).
In this process, energized Argon ions strike a solid metal target at high speed. The impact releases tiny metal atoms, which travel across the vacuum and settle on your specimen as an even, ultra-thin coating.
This is known as a collision cascade. When Argon ions hit the metal target, they pass their energy along through a rapid series of impacts. Atoms at the target surface are ejected, resulting in a clean, predictable transfer of material onto the specimen being examined.
Plasma Generation and Magnetron Technology
To accelerate these ions, the DSR1 generates a glow discharge in a low-pressure environment. Powered by a robust two-stage direct drive rotary vane pump (4 m³/h capacity), it reaches a vacuum of less than 40 millitorr. Applying a negative charge to the metal target within the Argon-filled chamber produces a dense plasma.
Basic DC charging is sufficient for routine SEM preparation, but the DSR1 also includes a built-in 2-inch magnetron cathode, which yields an ultra-fine, nearly invisible grain and makes the whole process more efficient. Plasma cleaning is integrated as well, clearing surface contaminants before any metal is deposited so that high-resolution imaging results are crisp and spotless.
Precision Process Control
Operating this desk sputter coater involves adjusting a few key settings that determine deposition speed and film thickness. By fine-tuning these parameters on the intuitive 7-inch color touchscreen, you can balance top-tier coating quality with practical budget limits.
- Voltage and Current: Adjust the power input to set how forcefully the ions strike the target.
- Gas Mix and Pressure: Pure Argon combined with the precise electronic leak valve helps prevent grainy or uneven coatings.
- Coating Angle: Interchangeable specimen stages (such as the rotary planetary stage) and GLAD (Glancing Angle Deposition) help ensure that every microscopic recess is evenly covered.
- Deposition Monitoring: The built-in high-precision quartz crystal thickness monitor supports manual or fully automatic sputtering based on exact thickness. It logs your last 300 runs and sends process curves to your PC over USB.
Target Materials and Microscopy Optimization
Your microscopy results depend heavily on the noble metal installed in the DSR1's 170 mm Pyrex cylinder chamber. Covering a specimen with a thin metal layer prevents static buildup on non-conductive items and brings out surface details under the microscope.
Targets can be swapped quickly to suit your analysis:
- Gold (Au) and Gold/Palladium (Au/Pd): The classic choice. Both are highly conductive with a very fine texture, making them an excellent match for biological samples.
- Platinum (Pt) and Iridium (Ir): These produce an exceptionally smooth finish, which is ideal for ultra-high-resolution FE-SEM imaging.
- Silver (Ag): Offers excellent conductivity for specific material science applications that call for a reflective surface without the cost of gold.
With metal layers applied this reliably by the DSR1 desk sputter coater, your samples are ready to reveal every fine detail.
Technical Specifications
These specifications provide detailed information about the product's size, weight, power requirements, and key features.
- Chamber dimensions: 170 mm outer diameter (OD) x 140 mm Pyrex cylinder
- Overall dimensions: 47 cm height x 46 cm width x 37 cm depth
- Shipping weight (including vacuum pump): 42 kg
- Power requirements: 220V-240V, 50/60Hz, 10A
- 80 Watt DC switching power supply
- High-precision thickness monitor
- Ultimate vacuum: Less than 40 millitorr
- 2-inch magnetron cathode
- Electronic shutter
- Electronic leak valve
- Data transfer via USB port for curves and sputtering process data to PC
Options and Accessories
These are the optional accessories and components that can be used with the system.
- Quartz crystal sensors
- Planetary Sample Rotation
- Spare glass chamber
- Sputtering targets
- Sealing gaskets
Important Delivery Information
Delivery time varies upon stock availability. Our standard dispatch and shipping times are generally within 1 week, however for some high demand items the delivery may be extended to 2-3 weeks.
Need it urgently? Contact us here to check stock and organize faster shipping.
