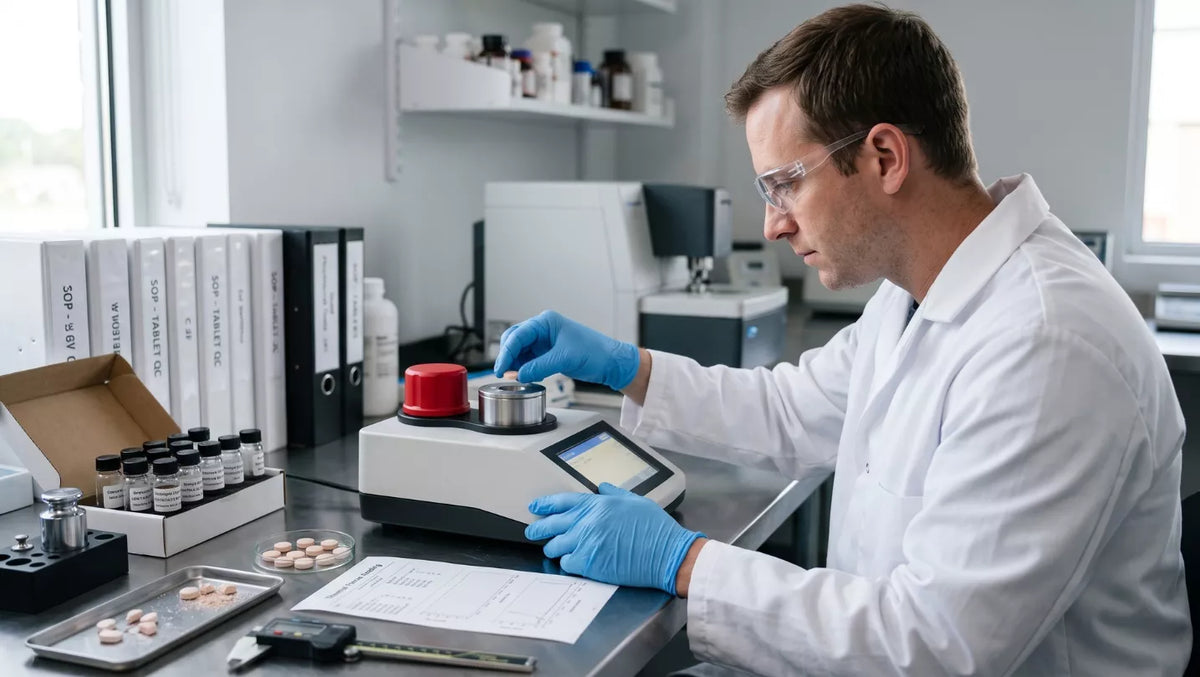

Performing a standardized hardness test for tablets measures the physical force required to break a solid dosage form under controlled mechanical conditions. This technical guide explains the underlying physical principles, step-by-step procedures, calibration checks, and quality control parameters that technical teams must analyze before interpreting batch results.
Selecting a high-precision tablet hardness tester represents a primary setup step for any pharmaceutical quality control department. Analyzing these mechanical parameters helps technical teams prevent early lamination issues and secures batch uniformity.
What Is the Hardness Test for Tablets?
A hardness test for tablets represents a standard mechanical evaluation used in pharmaceutical manufacturing to verify the physical durability of compressed solid compacts. Technical professionals often use the term "breaking force" rather than "hardness" to describe this quality control check.
Using the term "hardness" is technically a misnomer derived from traditional material testing. The pharmaceutical tablet hardness testing process does not measure surface indentation, scratch resistance, or localized plastic deformation. Instead, it measures the compressive structural limit of the solid matrix under localized tension.
Tablet Hardness Tester Principle
The mechanical forces of the tablet hardness tester principle center on applying a linear, progressive compressive load to the edge of a tablet. This force profile increases internal structural stress across the diametrical axis of the compact until a physical fracture occurs.
A motorized platen moves at a constant speed or constant force rate toward a fixed contact surface. Once the platen contacts the tablet wall, the system registers the exact force required to cause structural failure. This peak force represents the mechanical breaking strength of the compressed formulation.
Tablet Hardness Test Procedure
Standardizing the tablet hardness test procedure is necessary to secure repeatable results across different instruments, laboratories, and operator shifts. Technical analysts must establish a consistent sequence that eliminates variable hand-speed errors and improper sample placement.
Executing a consistent hardness test for tablets protocol helps teams maintain compliance. The table below outlines a generalized testing workflow, detailing the purpose of each stage and identifying common quality control risks.
|
Procedure Step |
Purpose |
Common Risk |
|
Pre-Use Verification |
Confirms that the instrument is clean and is within its validated testing window. |
Testing with an expired calibration status yields invalid batch data. |
|
Configure Settings |
Sets the display units and selects the motorized platen movement speed. |
Inconsistent platen travel speeds alter the apparent breaking force. |
|
Inspect Sample |
Verifies that selected tablets are free of pre-existing micro-cracks or surface chipping. |
Using pre-damaged samples produces artificially low breaking force values. |
|
Position the Tablet |
Aligns the sample edge consistently between the fixed platen and the moving platen. |
Off-center alignment introduces shear stresses, altering the fracture plane. |
|
Initiate Force |
Activates the motorized platen to apply a linear compressive load until rupture. |
Sudden force surges can cause premature, false breaking calculations. |
|
Record Result |
Registers the peak force measured by the load cell at the millisecond of fracture. |
Manual transcription errors can compromise batch record traceability. |
|
Clean Testing Chamber |
Removes residual powder and tablet fragments from the contact platens. |
Accumulated debris interferes with subsequent sample alignment. |
|
Review and Document |
Compiles individual results to calculate batch means and standard deviation values. |
Missing records can result in validation or audit failures. |
Calibration and Machine Setup Checks
Maintaining measurement accuracy requires systematic tablet hardness tester calibration and setup verifications. Because this instrumentation generates analytical data used for regulatory batch release, force sensors must remain traceably verified against established standards.
Managing tablet hardness testing workflows requires stable instrument leveling. A standard tablet hardness tester must rest on a stable, vibration-free laboratory bench to prevent external vibrations from altering the registered breaking force. The table below organizes primary checks that laboratory managers and quality assurance teams should review during setup and routine operational checks.
|
QC Check |
Why It Matters |
What to Verify |
|
Calibration Status |
Sensor accuracy determines the validity of the registered peak fracture values. |
Verify the calibration sticker date and check against the approved calibration schedule. |
|
Zero-Point Baseline |
Establishes that the load cell registers zero force when no sample is present. |
Confirm the digital screen display reads absolute zero before initiating platen movement. |
|
Force Verification |
Confirms sensor linearity across the expected product breaking force range. |
Use certified static weights or dynamic verification tools to test sensor response. |
|
Measurement Unit |
Prevents mathematical calculation errors during data compilation. |
Confirm the interface is configured to the default unit, such as Newtons or Kiloponds. |
|
Surface Condition |
Roughness or dirt on contact platens alters how compressive stress distributes. |
Clean and inspect the fixed and moving platens for surface scratches or build-up. |
|
Tablet Alignment |
Dictates the direction of force, preventing irregular angular stress. |
Check that the platen path aligns perpendicular to the tablet diametrical axis. |
|
Cleaning & Maintenance |
Powder residue can accumulate and jam internal motorized platen gears. |
Verify that the testing chamber is cleared of fragments and the debris tray is emptied. |
|
Out-of-Tolerance |
Prevents the use of compromised equipment during routine batch testing. |
Establish clear standard operating procedures for isolating drifting instruments. |
USP and QC Considerations
Navigating regulatory expectations requires checking the guidelines in tablet hardness test USP documentation, specifically Chapter <1217> Tablet Breaking Force. The pharmacopeia emphasizes physical methodology and validation guidelines rather than imposing a single, arbitrary hardness threshold for all tablets.
The tablet hardness test USP guidelines outline that force application should occur at a constant loading rate or constant platen velocity. This standardization reduces variable results caused by sudden mechanical impacts. Quality control teams must verify that their testing equipment supports these linear movement profiles.
Tablet Hardness Test Acceptance Criteria and Limits
Establishing a compliant tablet hardness test acceptance criteria protocol is the responsibility of the manufacturing company. Validation teams establish these criteria during formulation development, correlating physical breaking force with downstream disintegration and dissolution profiles.
Setting product-specific hardness test limits is necessary because different formulations demand distinct mechanical properties. Small pediatric formulations may require low limits to facilitate rapid disintegration. Conversely, large chewable tablets require a higher tablet hardness limit USP baseline to withstand transport stress.
Common Testing Errors to Avoid
Achieving repeatable data requires minimizing operator and environmental variables during routine quality checks. Testing with a standard tablet hardness tester requires analysts to monitor their workflows to eliminate these common testing errors:
-
Testing samples while the instrument operates under an expired calibration status.
-
Allowing formulation powder to accumulate on the contact surfaces, cushioning subsequent breaks.
-
Utilizing inconsistent tablet orientation, which applies force along incorrect physical axes.
-
Mixing distinct tablet shapes or formulations within a single statistical calculation set.
-
Relying on manual result transcription without dual-verification protocols.
-
Ignoring platen speed variations, which introduces speed-related errors in force calculation.
-
Utilizing pre-damaged, chipped, or moisture-softened tablets during routine testing.
How to Interpret Results in Pharma QC
Interpreting results in a pharmaceutical quality control lab requires comparing raw breaking values against validated product specifications. If a batch exhibits low breaking force, the tablets risk capping or laminating during high-speed packaging.
Excessive breaking force can delay disintegration and dissolution. Analysts must review whether high mechanical limits interfere with the biological delivery of the dosage form.
Equipment Selection for Tablet Hardness Testing
Selecting an instrument to perform the hardness test for tablets requires evaluating force ranges, platens, and data recording capabilities. Quality control managers should confirm that the chosen pharmaceutical QC testing equipment matches their specific tablet size and shape limitations.
Motorized digital setups eliminate operator-dependent velocity variations, delivering the constant loading rate needed for strict regulatory compliance. A high-performance tablet breaking force tester should feature easily cleanable platen contact surfaces and standard data export ports.
Final Recommendation
Performing a robust hardness test for tablets depends on consistent sample placement, clean contact surfaces, and regular calibration checks. Establishing product-specific acceptance criteria protects solid dosage forms from structural damage while maintaining correct biological performance.
